MOTU Micro Lite [14/166] Connecting a foot switch

INSTALLING YOUR MOTU INTERFACE

CONNECTING A FOOT SWITCH

If you would like to use a foot switch with your MOTU

MIDI interface, connect it as shown below in Figure 2-7.

For more information about how a pedal input can be

used, see “The Pedal tab” on page 48 (or, for Mac OS 9

users, see “Working with a Foot Pedal” on page 97).

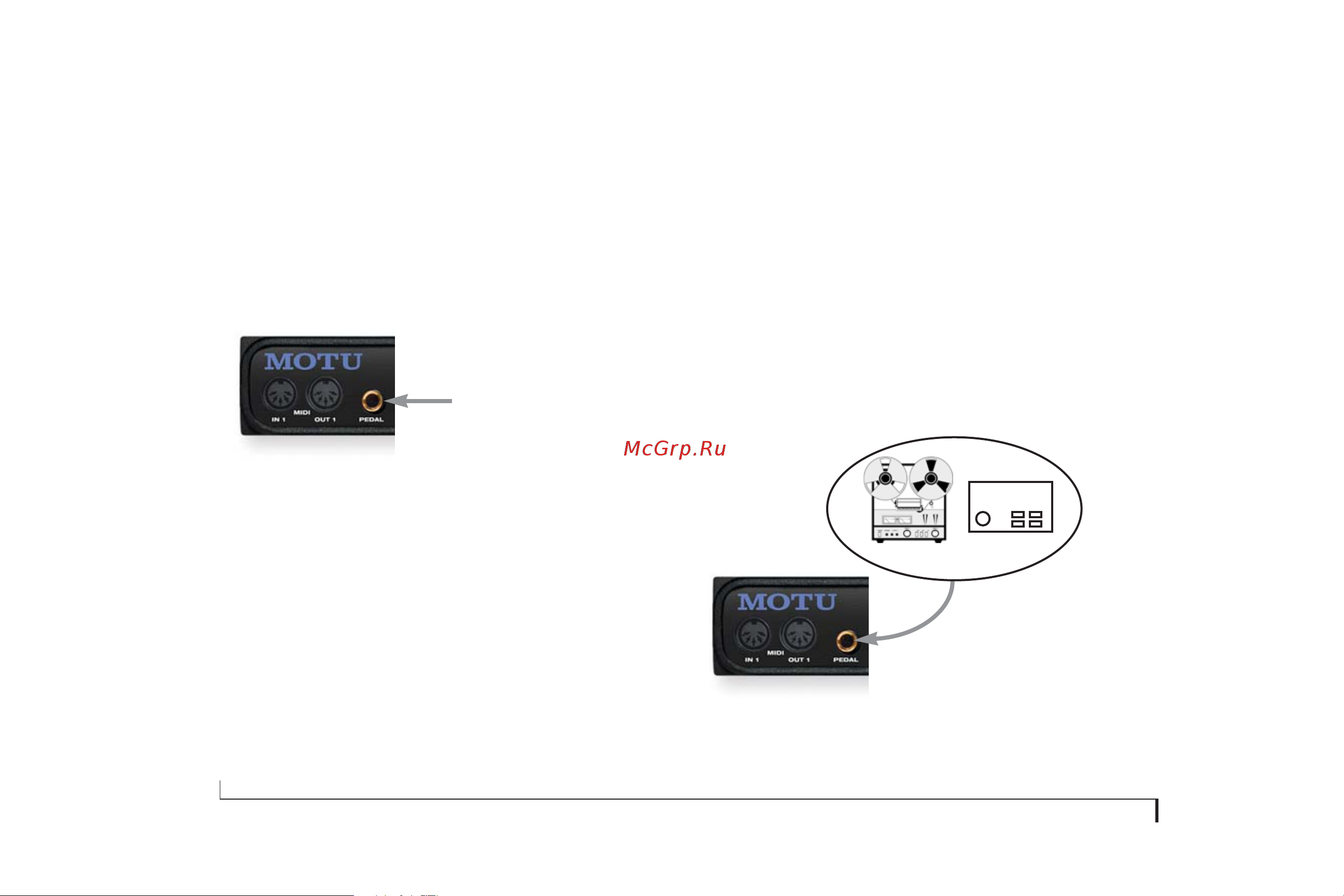

Figure 2-7: Connecting a foot switch or foot pedal.

CONNECTING AN AUDIO CLICK SOURCE

If you would like to convert an audio click to MIDI,

connect the audio click source to the Pedal input as using a

shielded, quarter-inch audio cable as shown below in

Figure 2-8. For more information about converting an

audio tempo source (such as a click, bass drum, tape deck

signal, or other audio tempo source) to MIDI, see “Using

an audio click as a tempo source” on page 49 (or, for Mac

OS 9 users see “Converting an audio click to MIDI” on

page 103).

Figure 2-8: Connecting an audio click input.

Examples of

audio click sources

Drum machine

Click track

Shielded

quarter-inch

audio cable
