CLOCKWORKS FOR MAC OS X
35
would like to send MMC transport commands generated
by (or redistributed by) your MOTU interface itself to
another device, create a connection from the MMC Out
port to the desired device. Usually, you will only have one
such connection at a time, as only one device would be
triggered as the Time Code source. Note also that this
connection is not necessary, however, if you intend to send
MMC transport commands directly from computer
software (or a MMC hardware device) to a MMC device.

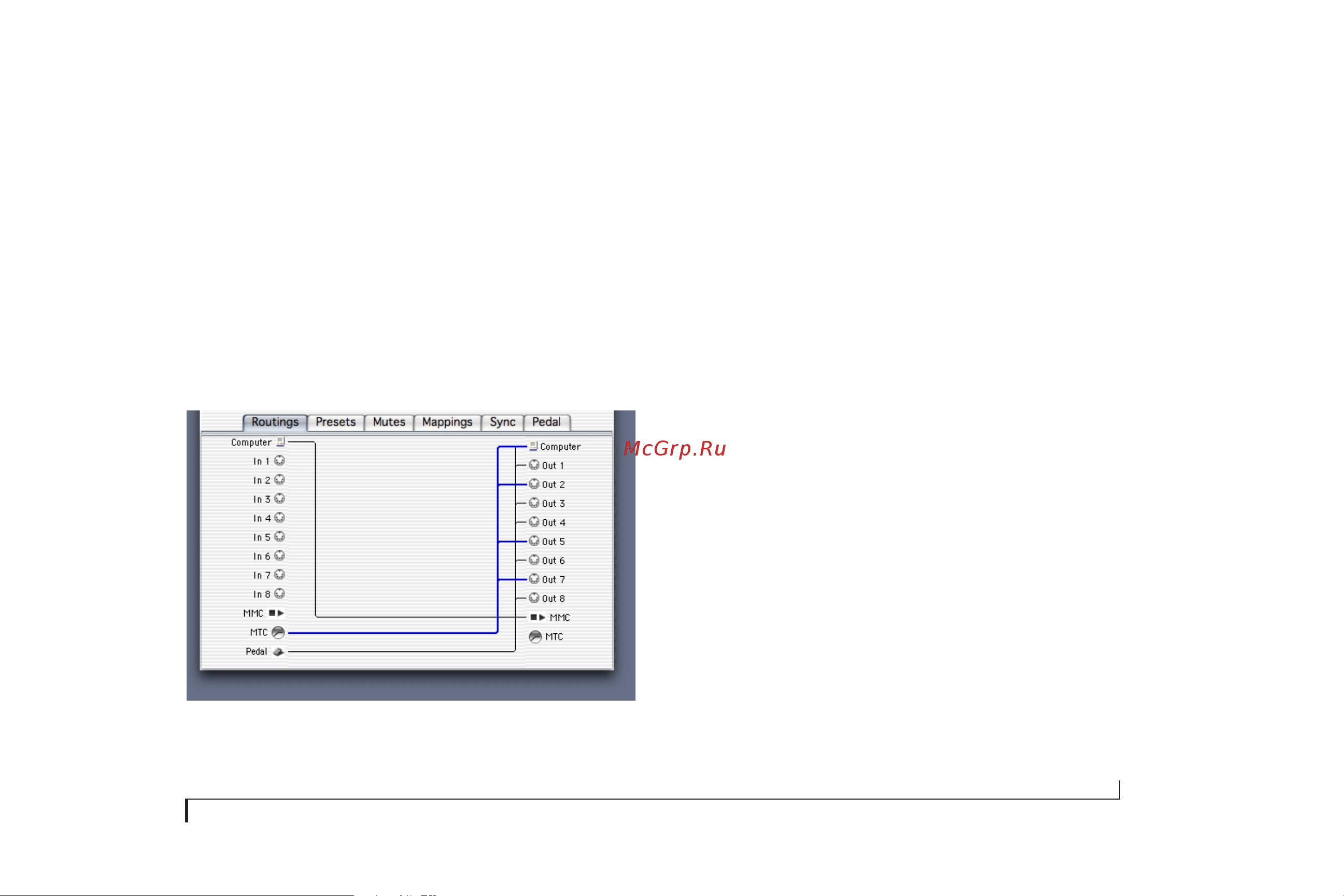

Figure 5-3: Routing MIDI Time Code from your Express interface to other MIDI
devices connected to it.
Routing MMC from the computer to the interface
The MMC In port in the Routings tab represents MIDI
Machine Control input to your MOTU interface itself. In
other words, the interface “listens” to MMC transport
commands from any devices (or computer software)
connected to this port.
For MMC transport control of the interface from the
computer, all you need is the connection from the
computer icon on the left to the MMC icon on the right, as
shown in Figure 5-2 on page 33.
Direct MMC versus redistributed MMC
When the connection shown in Figure 5-2 on page 33 is
made, your MOTU interface “swallows” all MMC
transport commands sent by MMC software running on
the computer, regardless of the MMC device the messages
are intended for (as determined by the MMC device ID
embedded in the messages). If you want to control a MMC
device from your computer, you have two choices:
1. bypass the interface’s MMC features,
