MIDI MACHINE CONTROL
128
Express interface to other devices in your studio to control
them remotely from your sequencer, as shown in
Figure 9-1 on page 126. Just drag a connection from the
MTC port to the device’s MIDI out port in the right-hand
column as demonstrated in Figure 5-3 on page 35 (or
Figure 6-21 on page 72 for Mac OS 9 users).
MMC control of record functions
Some sequencers provide MMC remote control of record
features, such as record-arming tracks, setting automatic
punch-in and punch-out points, punching in on the fly,
and so forth. The MOTU interface’s MMC capabilities,
however, do not come into play with record functions such
as these. It only handles MMC transport functions like
playing, stopping, and locating. For MMC record
functions, the MOTU interface serves only a means of
passing on MMC record commands from your sequencer
and the MMC device. Just send them directly to the
appropriate Windows MIDI port.
MIDI Machine Control with Digital Performer
Digital Performer automatically handles all of the MIDI
Machine Control window setup chores for your MOTU
MIDI interface/synchronizer when it is detected as a
connected interface.

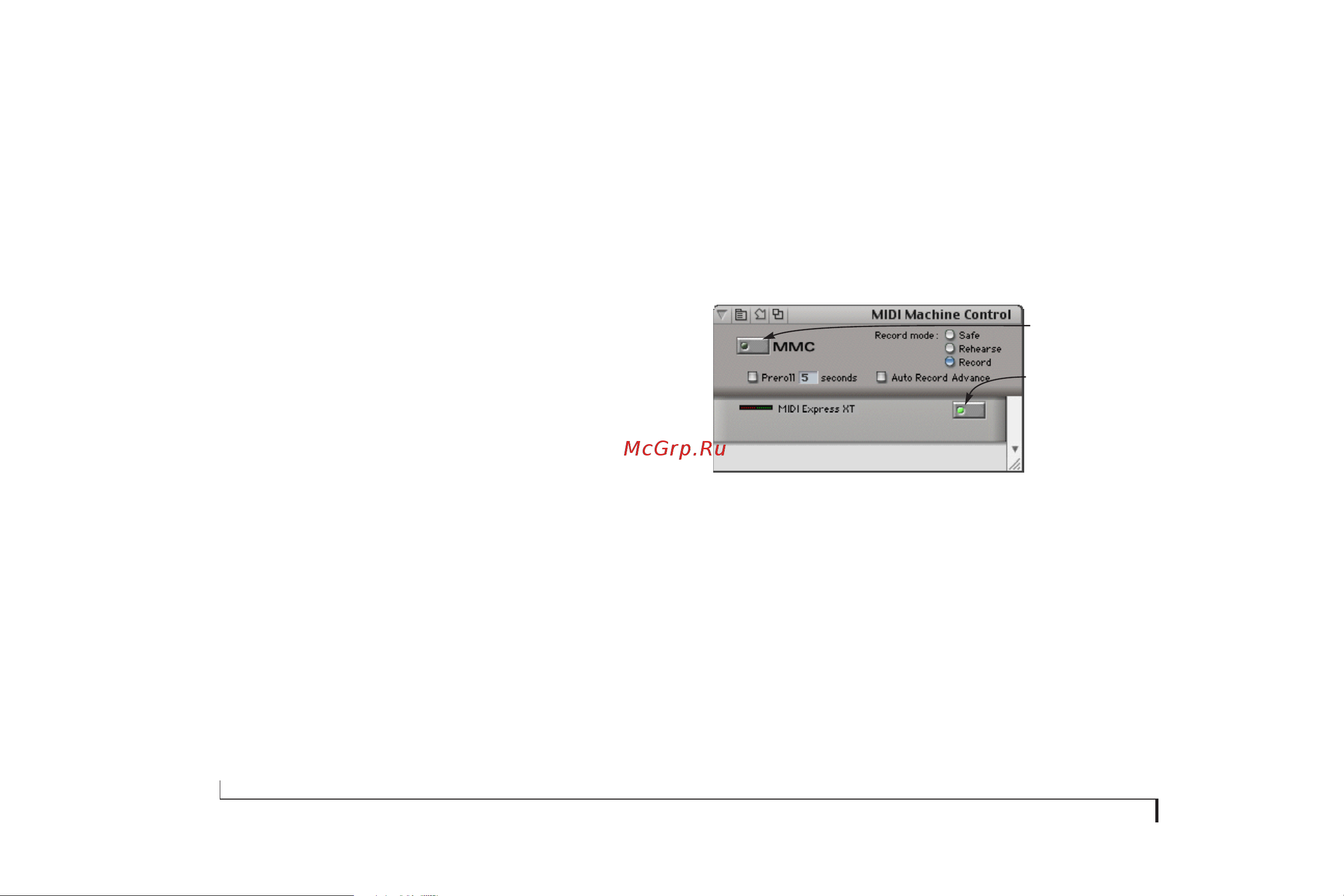

Figure 9-3: Digital Performer automatically configures its MIDI Machine
Control window (in the Studio menu — or in the Windows menu under Mac OS
9) when a MOTU MIDI interface/synchronizer is detected.
MMC control of record functions
For information about setting up remote control of the
record functions of MMC devices connected to the
MOTU Express interface, see your Digital Performer
manual.
Turn on MMC here.
Make sure the MOTU
Express interface is
Online.
