CLOCKWORKS FOR MAC OS 9
56
Overall look and feel
The ClockWorks “look and feel” is modeled after MOTU’s
award-winning Performer sequencing program. Several
aspects of this interface, including mini-menus, are
explained later in this chapter. Even if you are familiar with
Performer’s conventions and appearance, we suggest that
you skim this chapter to learn about features that are
unique to ClockWorks.
The following sections cover several important, unique
characteristics about ClockWorks.
Windows
Most of the features in ClockWorks are presented to you in
windows opened from the Windows menu. The Utilities
menu contains several additional commands which are
described in “Utilities Menu” on page 90.
After you open a window, you can position it anywhere on
the screen. It will remember this location. In several
windows, the name of the current base setup or modifier is
displayed in parentheses in the title bar of the window to
clearly indicate which base setup the settings apply to.
Mini-menus
Most of the ClockWorks windows have mini-menus,
which are located in the title bar of the window at the left-
hand side next to the close triangle. A mini-menu acts just
like a Macintosh main menu except that it provides
commands that are specific to its own window.

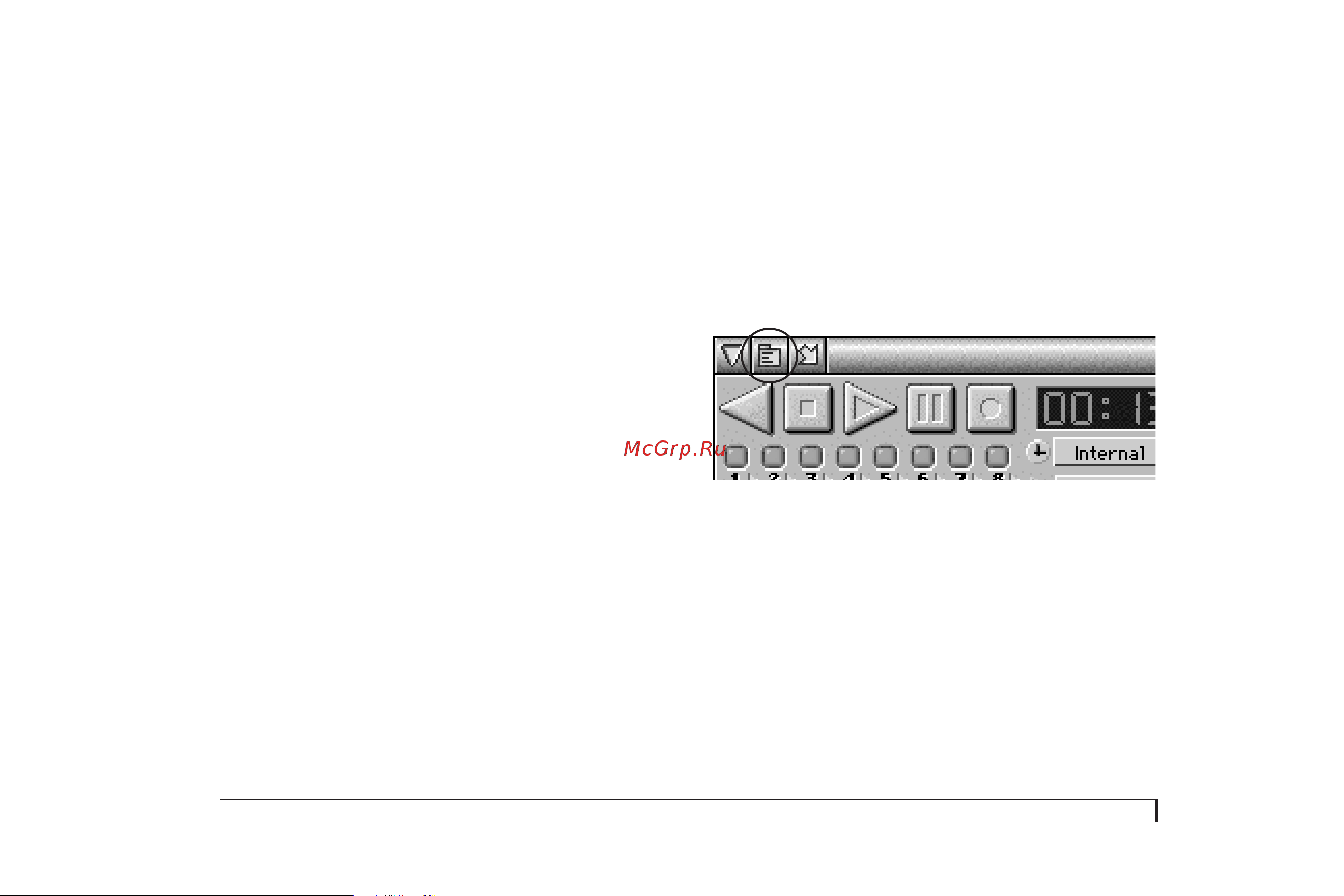

Figure 6-3: A mini-menu
Buttons
Every time you click a button in a ClockWorks window,
ClockWorks sends a corresponding command to your
MOTU Express interface. Therefore, the buttons in the
window always reflect the state of the interface hardware.
