CLOCKWORKS FOR MAC OS 9
80

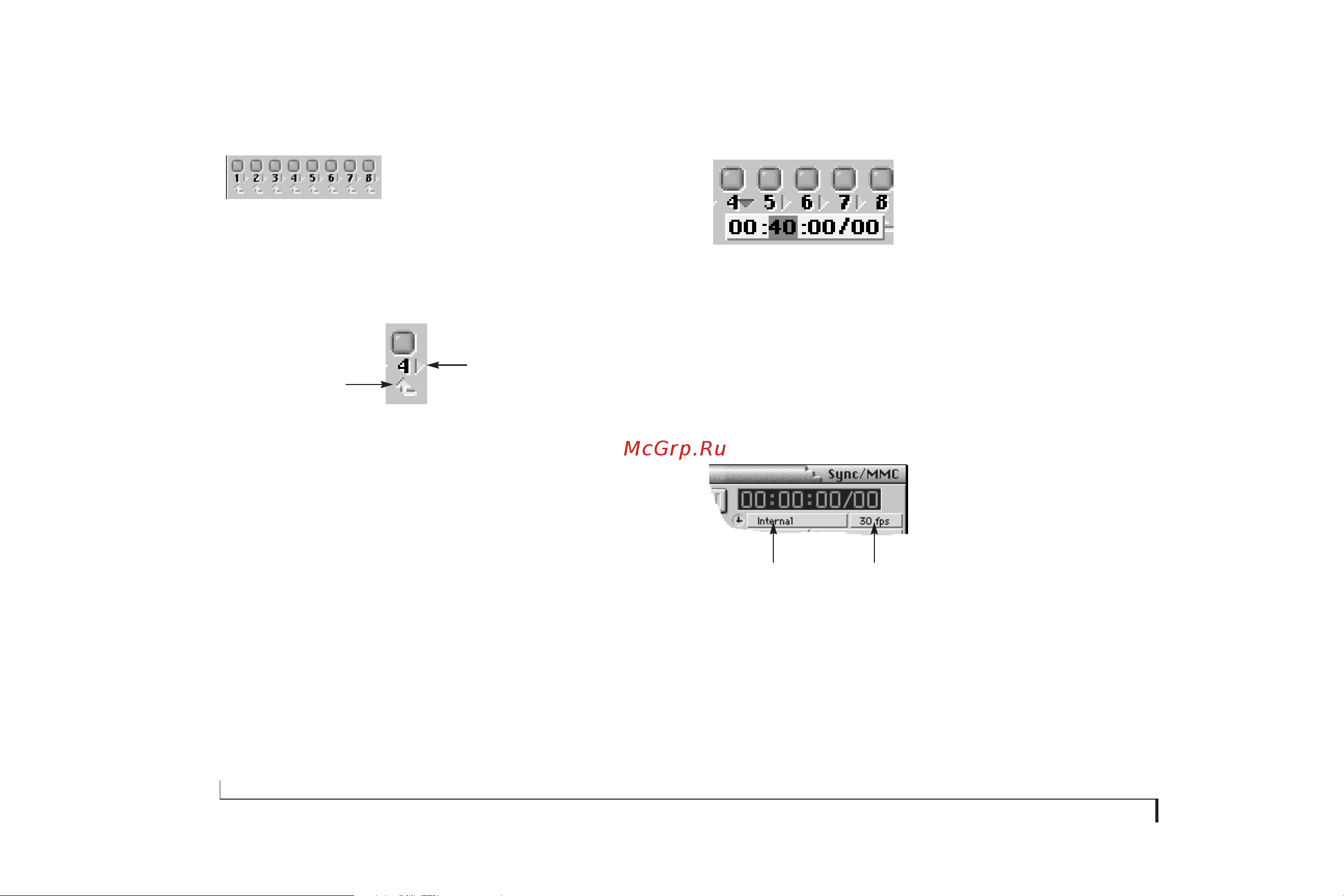

Figure 6-30: The Locate buttons.
The Set Locate controls provide two ways to program a
locate button as shown in Figure 6-31.
Figure 6-31: The Set Locate controls. Click the lower arrow to load the SMPTE
frame currently displayed in the SMPTE Readout. You can even do so on the fly.
Click the upper arrow to type in the desired SMPTE frame.
Click the upper arrow to type in the desired SMPTE
frame. Use the tab key to move from field to field as shown
in Figure 6-32 and press return to confirm the SMPTE
location you type in.
Figure 6-32: Typing in a SMPTE frame for a locate button.
Locate points are saved with ClockWorks files.
Time Base and Frame Rate Settings
The Time Base and SMPTE Frame rate settings let you
choose the overall time base and SMPTE frame rate for
your MOTU interface.
Figure 6-33: The Time Base and SMPTE frame rate settings.
The choices in the Time Base menu are:
Click here to Load the
current frame displayed
in ClockWorks’ main
SMPTE readout.
Click here to type in any
desired SMPTE frame.
Time Base
setting
SMPTE
Frame
rate
