CLOCKWORKS FOR MAC OS 9

have it select a sound (patch change event), set the correct

volume (volume controller), and zero out pitch bend to

begin at the correct pitch (pitch bend event of zero).

The foot switch can also trigger a panic hit, sending

note-offs to all output cables.

Pedal setup overview

Here is an overview of how to set up your Express interface

to use a foot switch:

1 Be sure the foot switch is connected to your Express

interface as shown in Figure 2-7 on page 14.

2 Open the Pedal window by choosing it from the

Windows menu.

3 Choose Foot Switch from the Pedal type menu.

4 Set up the data to be sent using the controls in the

bottom portion of the window. This is covered in detail in

the next section, “Setting up the foot switch output data”.

5 In the Device Settings & Routing window, make

connections from the foot pedal icon to the desired MIDI

out port icons and computer icons.

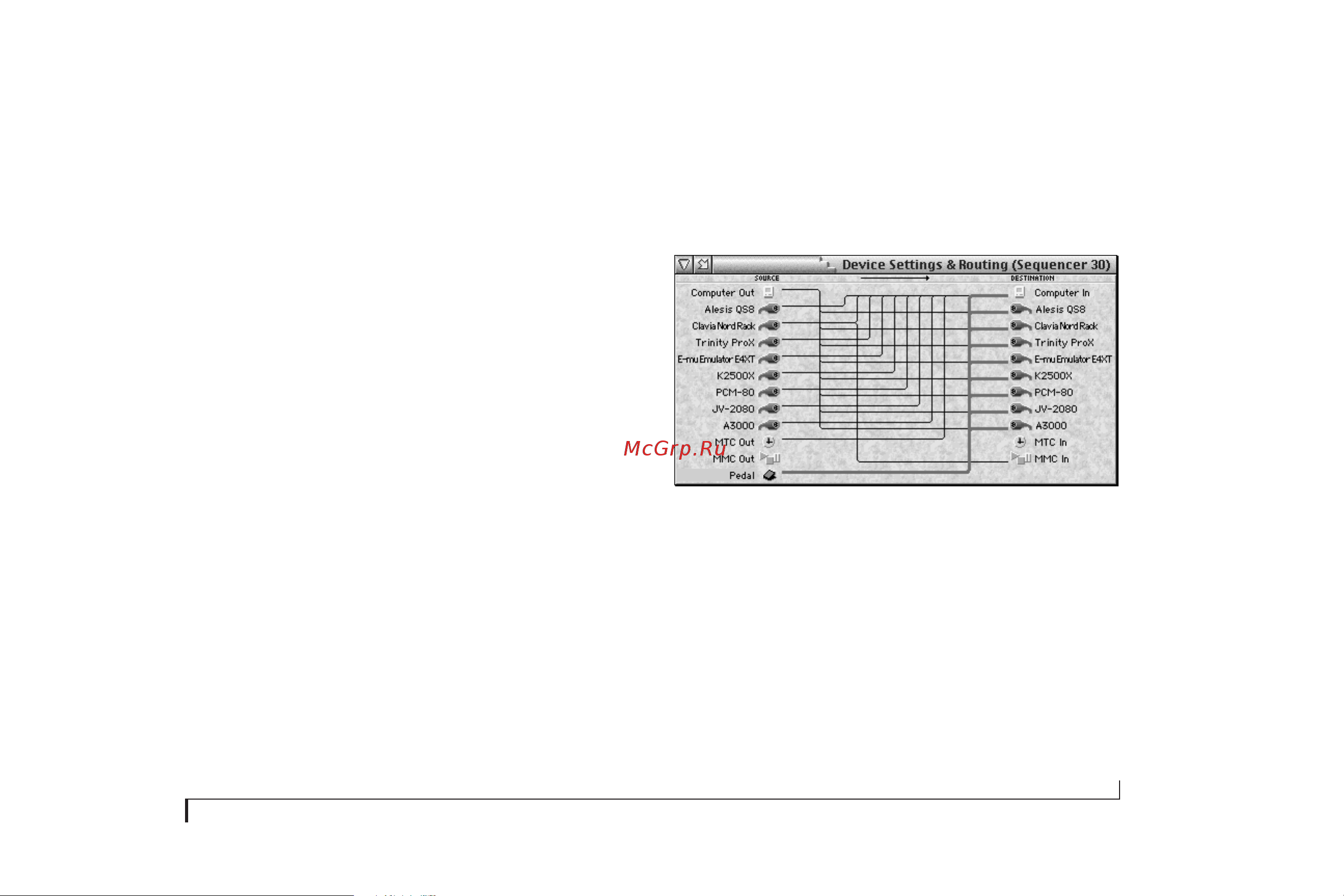

Figure 6-45: Routing pedal data.

MIDI data that you generate with the foot switch can be

sent to any device connected to your Express interface,

including the computer (serial port A) and serial port B.

6 When you have ﬁnished setting up the data, you are

ready to use the foot switch.

See “Sending data with the foot switch” on page 101.
