Multi Edit Mode
CONTROLS Page
9-16
CONTROLS Page

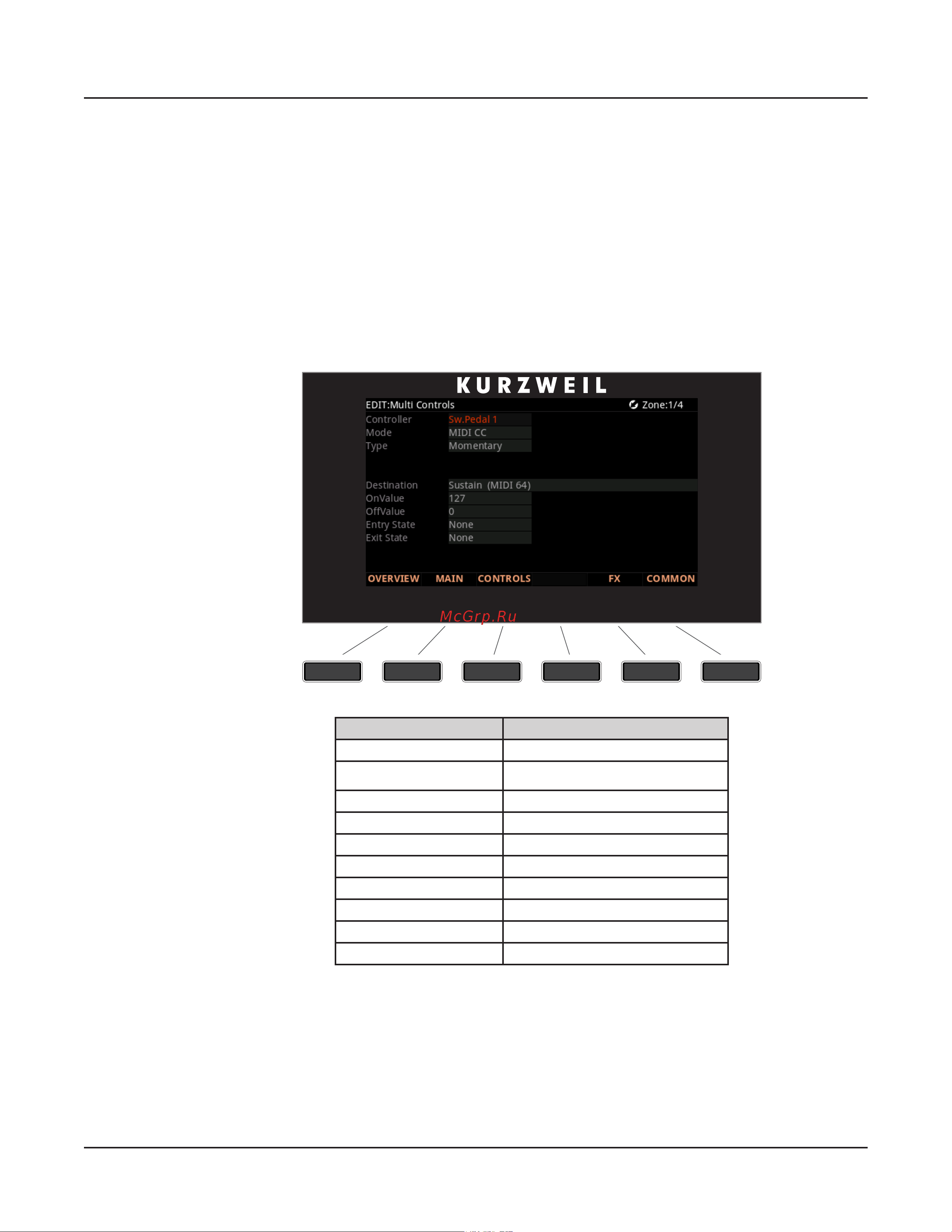

Press the CONTROLS soft button to view pages where you can set parameters for each of
the Forte physical controllers. Broadly speaking the Forte has switch controllers (such as
buttons and Foot Switches), and continuous controllers (such as the wheels, sliders and foot
controllers). Switch and continuous controllers have dierent parameters available to them
on the Controls page, which are described below.
Switch Controllers
Parameter Range Of Values
Controller See Controller List
Mode
Off, MIDI CC, Chord (Chord is only
available for Switch Controllers)
Type Momentary, Toggled
Destination See Multi Destination Control List
OnValue None, 0 to 127
OffValue None, 0 to 127
Entry State None, Off, On
Exit State None, Off, On
Velocity Auto, 1 to 127
Key1....Key8 None, C-1 to G9
You can select any of the Forte’s physical controllers by moving the cursor to the “Controller”
parameter, and using either the Alpha Wheel or Value buttons to scroll the list. Alternatively,
you can also position the cursor in the “Controller” parameter, hold down the Enter button
and move the controller you wish to edit.
