Multi Edit Mode
About Auxiliary Effects
9-30
KB3 Channel
If KB3 Programs are selected for more than one Zone, this parameter species which MIDI
Channel has priority to load a KB3 Program. Only one KB3 Program can be loaded at a
time. You can set this parameter to a value between 1 and 16. If you want a KB3 Program to
play in a zone, you should set the KB3 channel to the channel of the Zone.
About Auxiliary Effects
Programs and Multis both have an auxiliary eect send. An auxiliary eect is an eect that is
not in the direct path of the sound, but rather, it “receives” and processes the sound applying
the eect, which is mixed back with the original sound. e following diagram illustrates

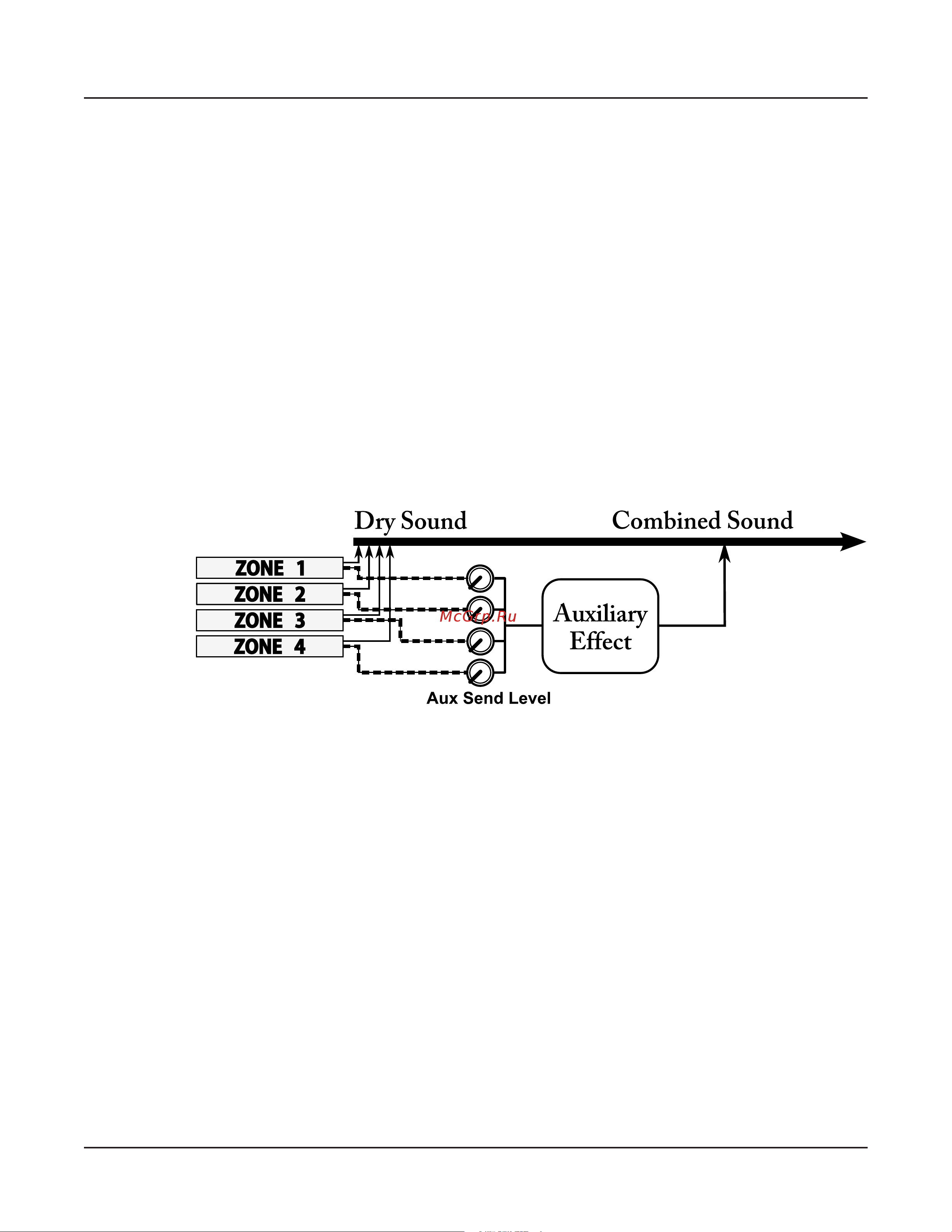

the signal path of a sound through the auxiliary eect: On the Forte, the auxiliary eects are
global to all channels and Zones, Programs and Multi’s. One eect chain can be loaded into
each of Aux1 and Aux2, and these are used for any Program or Multi that has active Aux
Sends.
e AUX1 and AUX2 parameters (on the FX page) determines the level the auxiliary eect
will process the sound for that Zone.
Save and Delete User Multis
For details on saving user Multis, see Saving a User Multi on page 8-18 of the Multi Mode
chapter.
For details on deleting user Multis, see DELETE Page on page 10-21.
