Storage Mode
Storage Mode Common Features
11-2

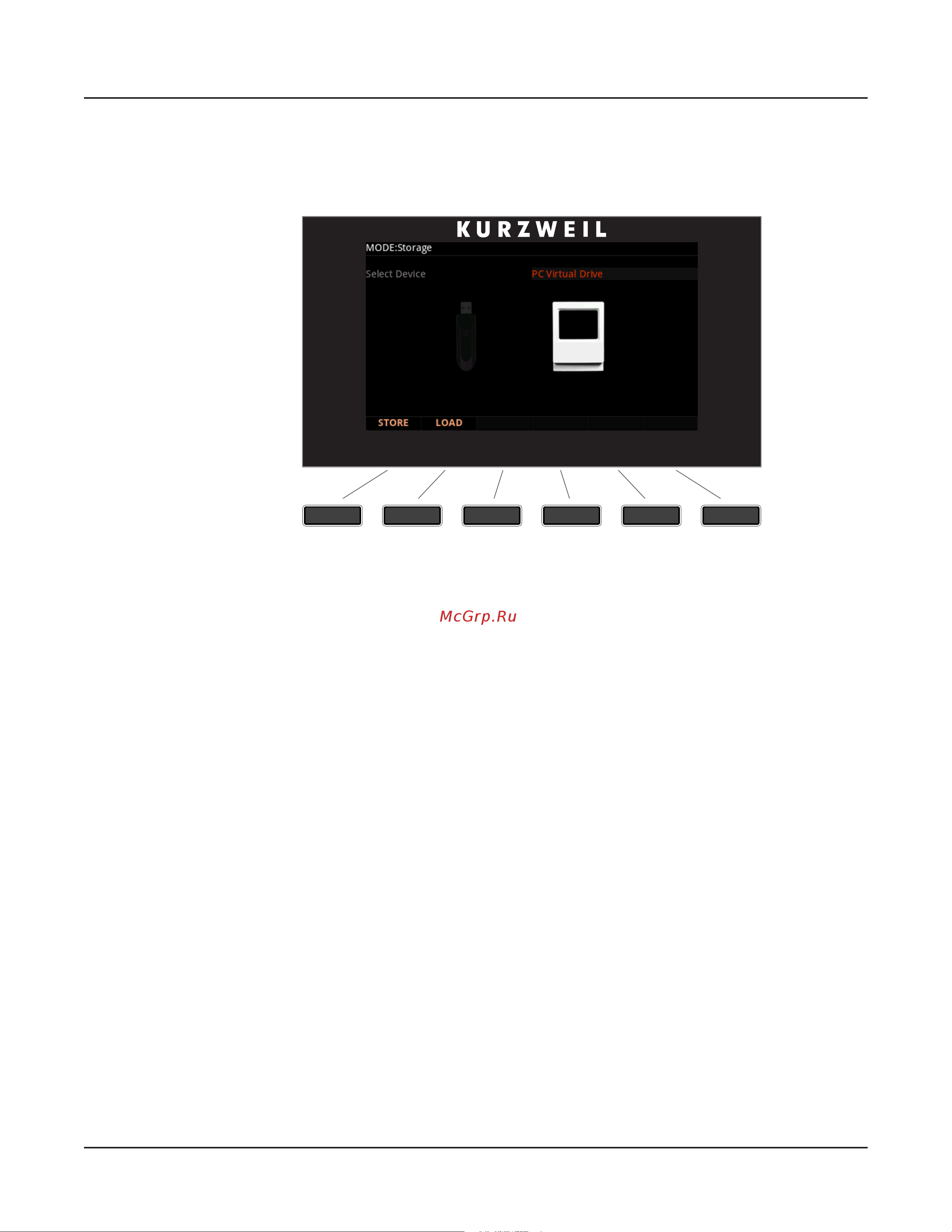

Use this page to select the storage device you wish to use with the navigation arrows or the
Alpha wheel. When a device is selected, you can then chose to Load or Store. If a storage
device is not connected, Forte will prompt you with a message to do so.
e top line of the display indicates you are in Storage Mode.
Storage Mode Common Features
e following features are used in storage mode when saving or loading les.
Directories
A directory lets you group les together as you might separate documents using folders in
a le cabinet. By default all storage devices have at least one “root” directory. To organize
les in a USB device; you can create additional directories, as well as subdirectories within
directories. Directories appear in the le list with the indicator <DIR> to the right of the
directory name.
Path
When you choose the STORE or LOAD soft buttons on the Storage mode main page, you
will have to choose exactly where in the storage device you wish to store to, or load from.
is location is called a directory. When you need to choose a directory, you will see the Path
eld. e Path eld shows the current directory on the current device.
When you choose a storage function for a connected device, Forte automatically chooses the
root (top-level) directory for the Path eld. e root directory is displayed as a backslash:
Path:\
