Kurzweil FORTE [39/244] The front panel

Features of the Forte and Forte7

3-2

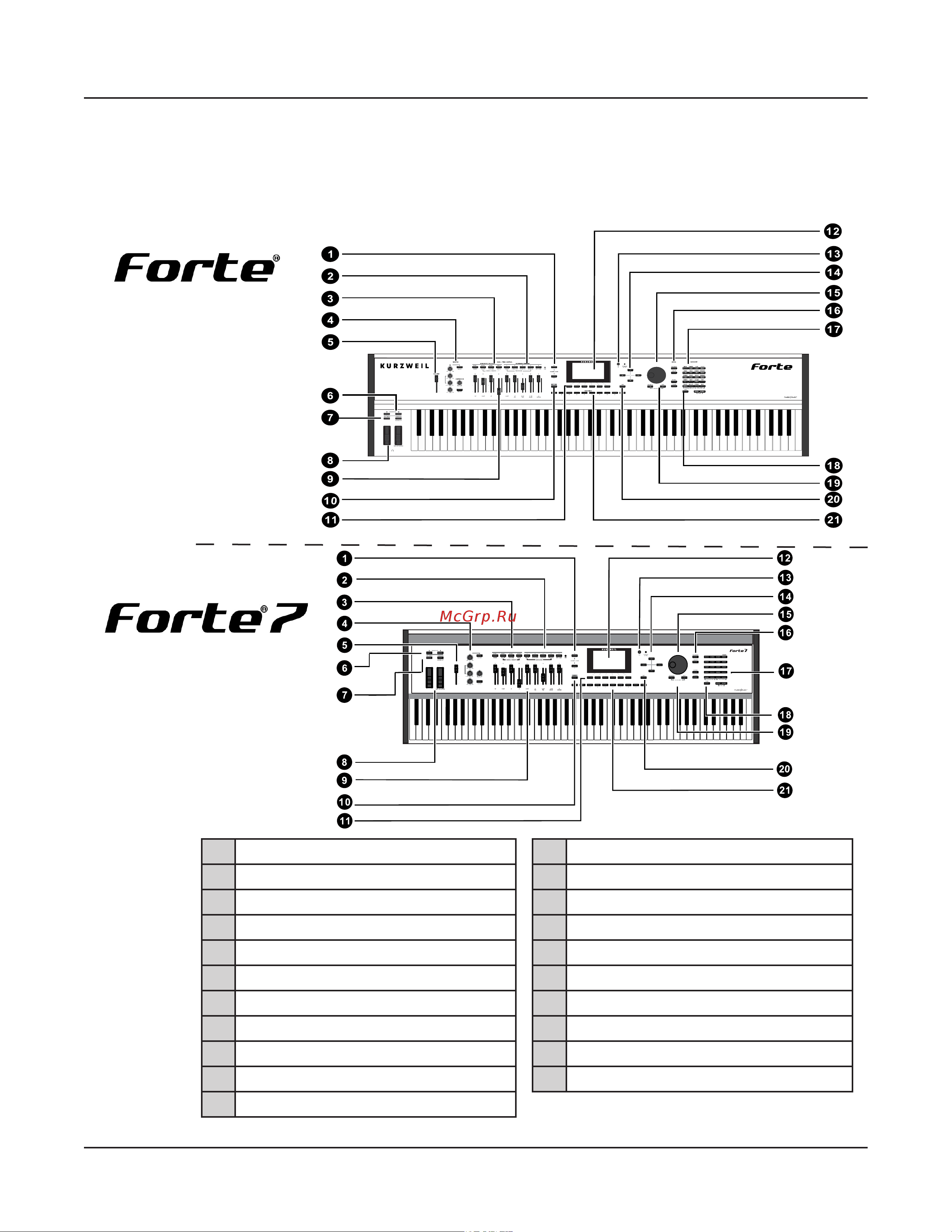

The Front Panel

All the controls for Forte and Forte7, both musical and navigational, are on the front panel.

1 Channel/Zone buttons 12 LCD display

2 Five programmable switches 13 LCD brightness adjust

3 Multi Zone mute buttons 14 Navigation Buttons

4 Master EQ/Compressor 15 Rotary dial (Alpha wheel)

5 Volume slider 16 Mode buttons

6 Transpose buttons 17 Category buttons

7 Tap Tempo & Variation buttons 18 User button

8 Pitch & Modulation wheels 19 Previous/Next buttons

9 Nine programmable sliders 20 Exit button

10 Save button 21 Favorites buttons

11 Soft Buttons
