Kurzweil FORTE [47/244] Audio in

Features of the Forte and Forte7

3-10

Audio In

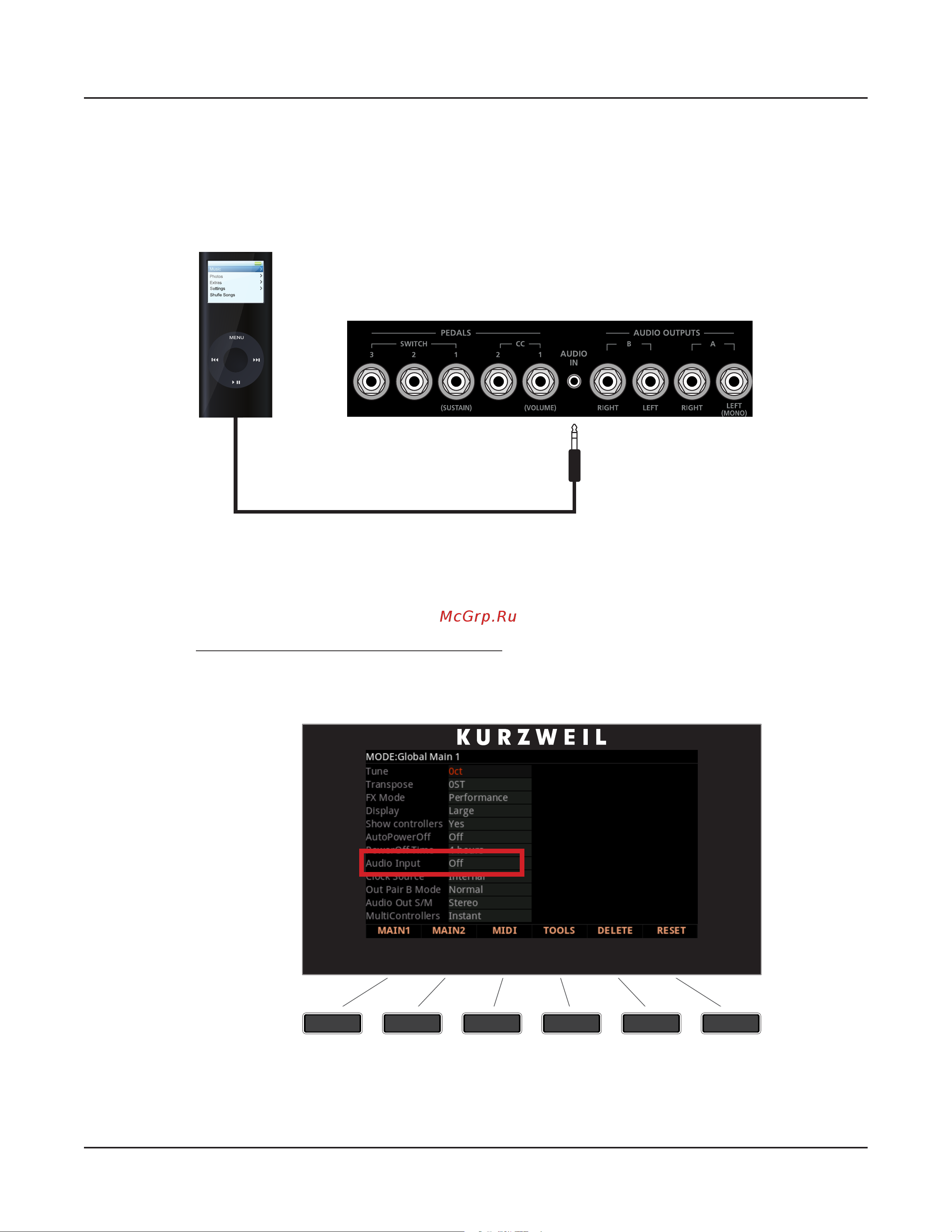

On the back panel of the Forte you will nd a ⅛” sized stereo audio jack labelled AUDIO

IN.

You can plug your MP3 player into the Forte and play along with the recorded music. ere

is no volume control for the Audio Input on the Forte itself, so you should control the mix

volume of the Audio Input from the MP3 player itself.

By default the audio input on Forte is O.

To turn it On you will need to go to Global Mode on the MAIN1 page and set the “Audio

Input” parameter to On.
