System Mode

System Utilities

12-15

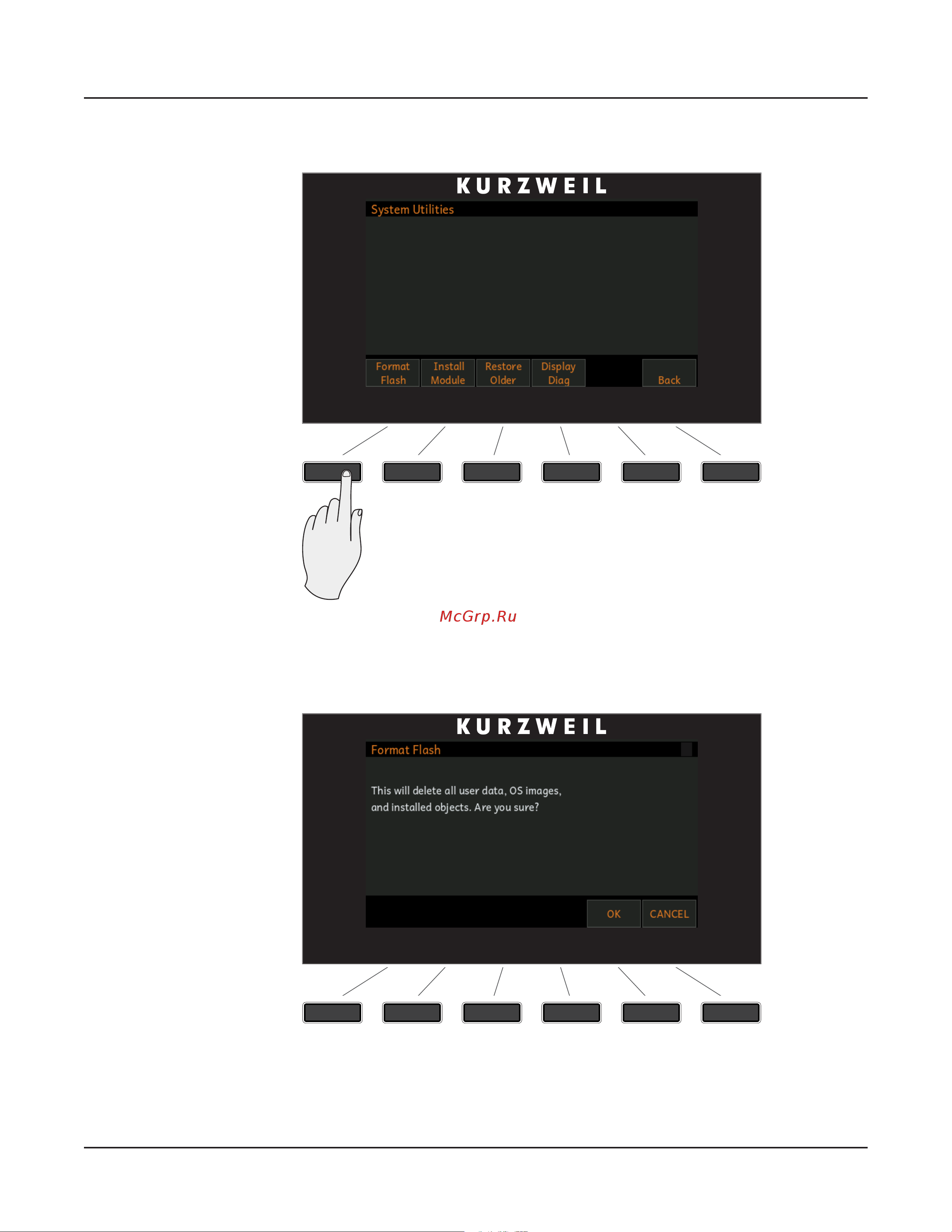

3. Press Format Flash.

4. e next screen wants to make sure that formatting the ash and deleting everything

is really what you want to do. Select OK to format the internal ash memory. Select

CANCEL if you do not wish to proceed.
