7. Module reference: Audio Modifier group NORD MODULAR V3.0
Page 166
As you can see in the figures above, the main practical difference between amplitude- and ring modula-
tion is the sideband amplitudes and the appearance of the carrier wave in the frequency spectrum. An-
other difference is that the resulting ring modulation wave phase-shifts 180 degrees every half modulator
period.
If more complex waveforms are used for amplitude- or ring modulation, sidebands will be generated for
each partial of the wave.
time
amplitude amplitude
frequency

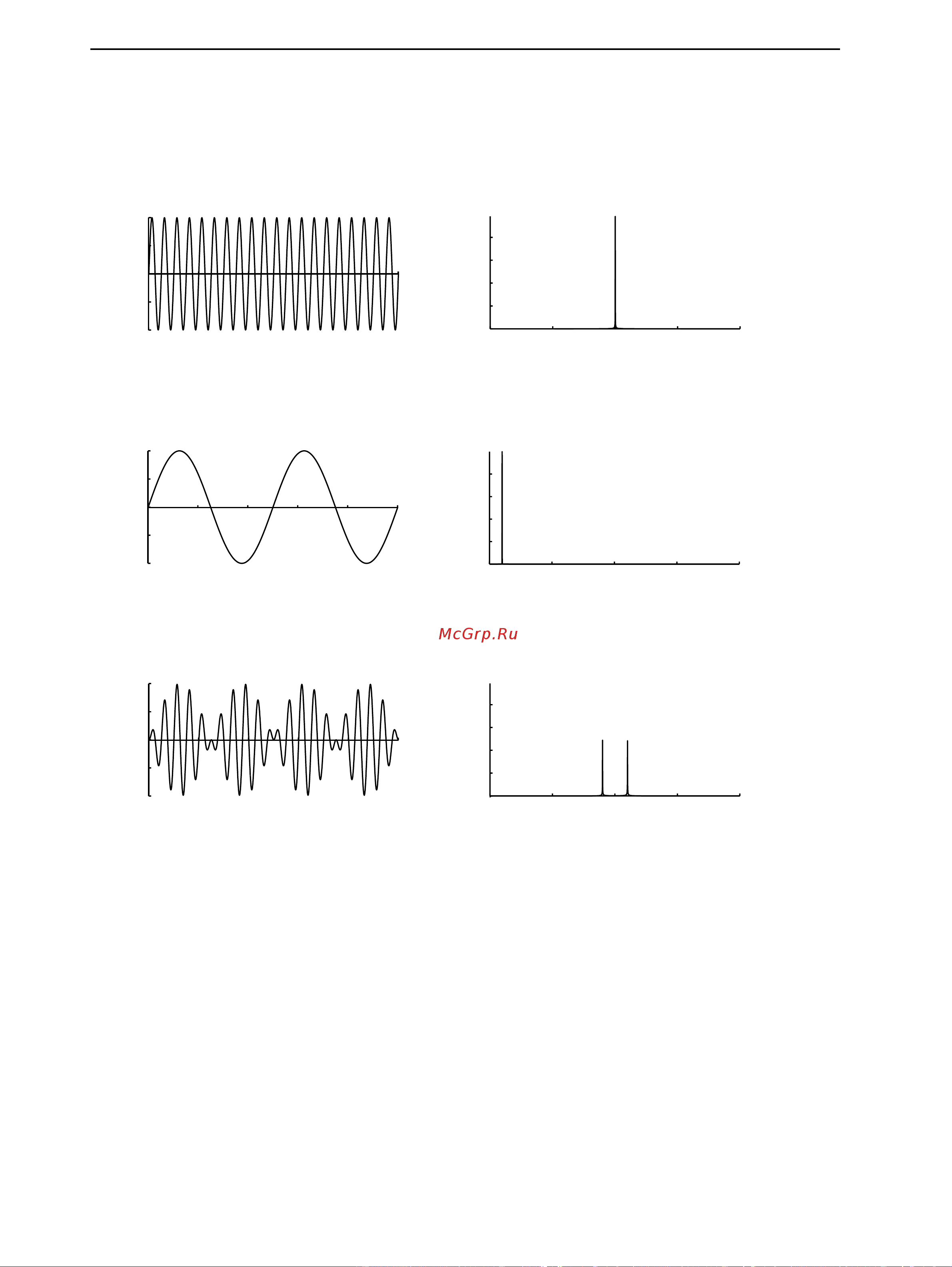

Fig 4. RM Carrier wave
f
C
time
amplitude amplitude
frequency
Fig 5. RM Modulator wave
time
amplitude amplitude
frequency
Fig 6. Ring Modulation
The side bands appear on each
side of the carrier wave on the
frequencies: f
C
-f
M
and f
C
+f
M
