NORD MODULAR V3.0 4. Basic functions
Page 21
P
PP
P
A
AA
AT
TT
TC
CC
CH
HH
HE
EE
ES
SS
S
New patches must be created in the Editor. You can, however, store several hundreds of patches in the
Nord Modular internal memory (not Micro Modular, which has 99 memory locations) and play these
patches without having the Editor running or even the computer connected. When you put Nord Mod-
ular in Edit mode (the
E
DIT
BUTTON
pressed), you can edit a patch from the synthesizer by navigating
among the parameters with the
N
AVIGATOR
buttons, and adjusting the values with the
R
OTARY
D
IAL
(not Micro Modular).
P
PP
P
O
OO
OL
LL
LY
YY
Y
A
AA
AN
NN
ND
DD
D
C
C C
C
O
OO
OM
MM
MM
MM
MO
OO
ON
NN
N
V
V V
V
O
OO
OI
II
IC
CC
CE
EE
E
A
A A
A
R
RR
RE
EE
EA
AA
AS
SS
S
A Nord Modular Patch can consist of two parts: one part that affects each voice in a patch separately, and
one part that affects the sum of all voices in a patch. In the Editor, these two parts are represented by two
sections of the patch window. The upper section is called the Poly Voice Area and the lower section the
Common Voice Area. In the Poly Voice Area you place modules that should be duplicated for each voice,
e.g. oscillators, envelope generators, filters etc. In the lower section, the Common Voice Area, you can
place modules that should act equally on all voices in the patch, e.g. different types of Audio modules.
Modules used in the Common Voice Area will act on the sum of the signals output from the Poly Voice
Area, and consequently will not be duplicated for each voice in the patch. This gives two big advantages:
• A module is able to process whole chords, and not just a single voice, affecting the sound the same way
an external audio processor would.
• In most situations you will be able to free up Sound engine power (Load) so you could increase the
polyphony of the patch.
Cables cannot be connected from modules in one patch window to modules in the other. The only signals
that can be routed from the Poly Voice Area to the Common Voice Area are two separate audio signals.
The routing is one-way only; from the Poly Voice Area to the Common Voice Area. See an example on
page 44 of how to use the two patch sections.
C
CC
C
R
RR
RE
EE
EA
AA
AT
TT
TE
EE
E
A
AA
A
N
NN
NE
EE
EW
WW
W
P
PP
PA
AA
AT
TT
TC
CC
CH
HH
H

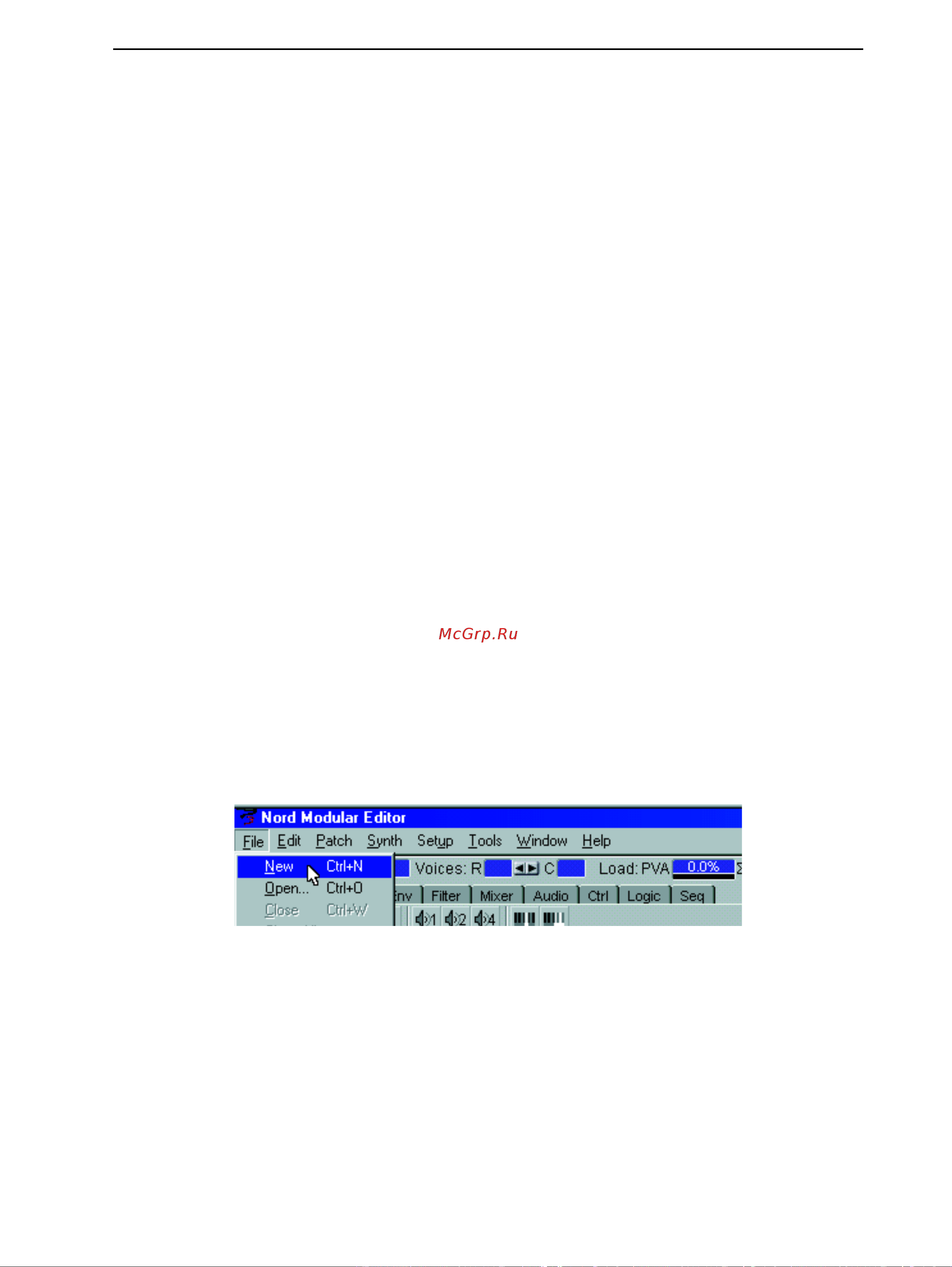

Create a new patch by selecting File|New.
Select a slot in the dialog box that appears and click OK. This opens up a new, empty patch window in
the Editor and clears the selected
S
LOT
in Nord Modular. You can also choose not to select any
S
LOT
by
