4. Basic functions NORD MODULAR V3.0
Page 30
A logic input that responds to both edges of the logic signal has no symbol next to it. Please note that
even though they respond to both edges, the response is not the same for the positive and the negative
edge. An example of this is the Gate input on the ADSR envelope generator. This input ”starts” the en-
velope when the positive edge of a logic signal appears and “releases” the envelope when the logic signal
switches back to 0 units again.

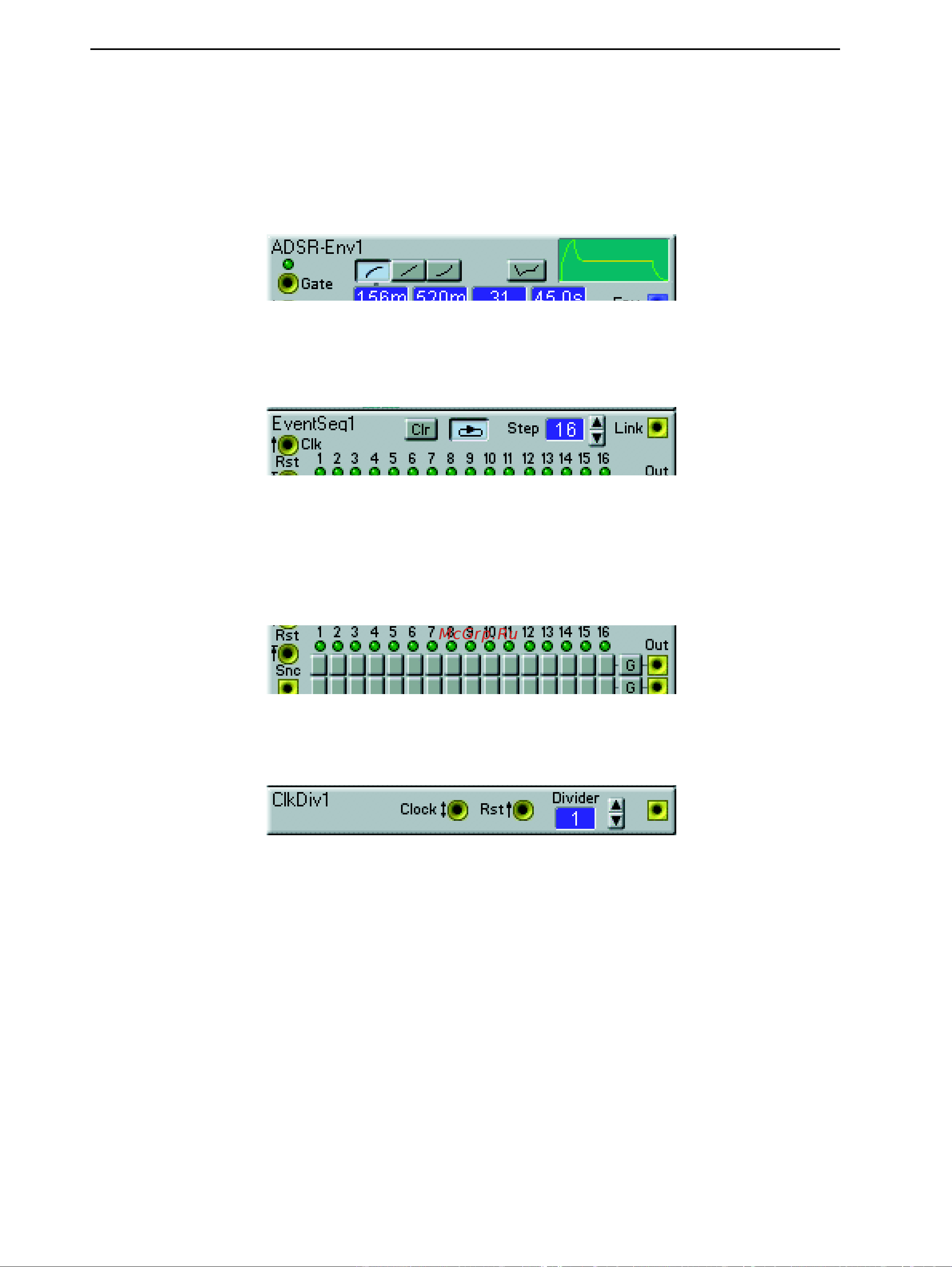

A logic input that reacts only to the positive edge has an arrow, pointing upwards, next to it. This is a
typical behaviour of a clock input on a sequencer module or a clock divider. This input is only interested
in the positive edges of a logic signal.
There are some logic inputs that will react to the positive edge of a logic signal only if there is a clock
signal coming in to the module as well. These inputs have an arrow, pointing upwards towards a hori-
zontal marker, next to them. The Rst input on the various sequencer modules is an example of this. These
modules will reset in sync with the next clock signal (on the Clk input) when they receive a positive edge
at the Rst input.
The logic Clock input on the Clock divider module is an example of an input that reacts the same way
to both of the edges of an incoming logic signal. This input has a double-sided arrow next to it.
The different behaviors of the logic inputs are important to remember. It is possible to patch other signals
than logic ones to the logic inputs. The output of a LFO, for instance, can be a good clock source or could
be used to start envelopes. The logic input will not mind having a control or an audio signal connected
to it. The logic inputs interpret any signal with a level of 0 units or less as a low signal and any signal with
a level greater than 0 units as a high signal.
