NORD MODULAR V3.0 3. Getting started
Page 13

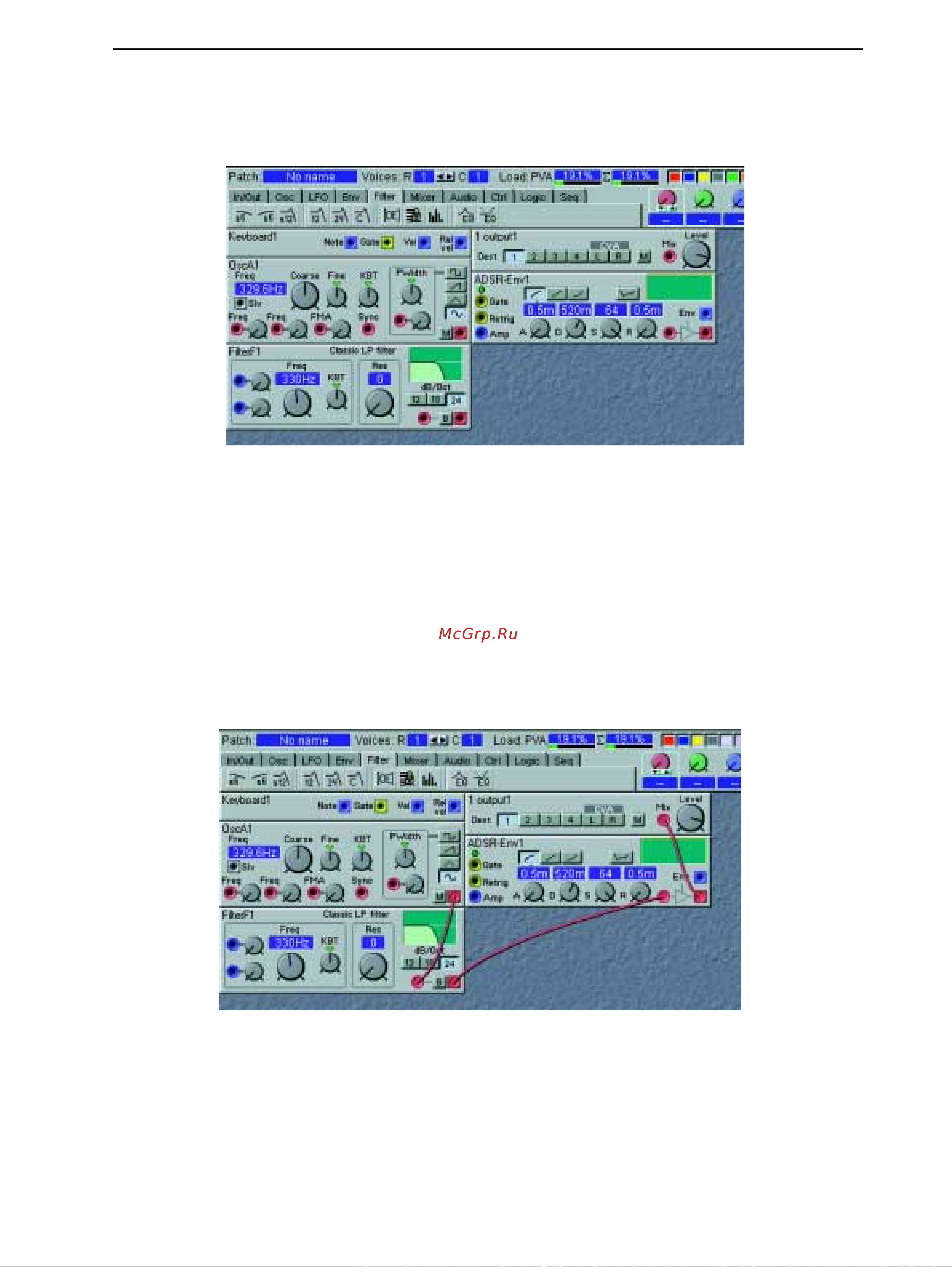

8. Click on the Filter tab and click-drag one ‘24 dB classic filter’ to the Poly Voice Area. Now your
patch should look something like this:
9. Let’s settle with these modules for now and start with the cable connections. First of all, let’s connect
all audio cables between the modules: Place the cursor over the red square output of the ‘OscA1’
module. Click, hold and drag the cursor to the red circular input of the ‘FilterF1’ module. Release
the mouse button. Now, a red audio cable appears between the two modules. Repeat the procedure
and connect the ‘FilterF1’ output to the ‘ADSR-Env1’ input and the ‘ADSR-Env1’ output to the ‘1
output1’ input.
If you should accidentally connect wrong, simply double-click-hold on one of the connectors, drag
the cable away from the connector, and release the mouse button. The cable disappears.
Finally, click on Destination button 1 of the ‘1 output1’ module to route the audio signal to the phys-
ical
O
UT
1
jack of Nord Modular. Your patch should now look like this.
10.Even though all audio cables have been properly connected, no sound is heard. You have to make the
envelope generator “open up” for the audio signal. Place the cursor on the yellow Voice gate output
