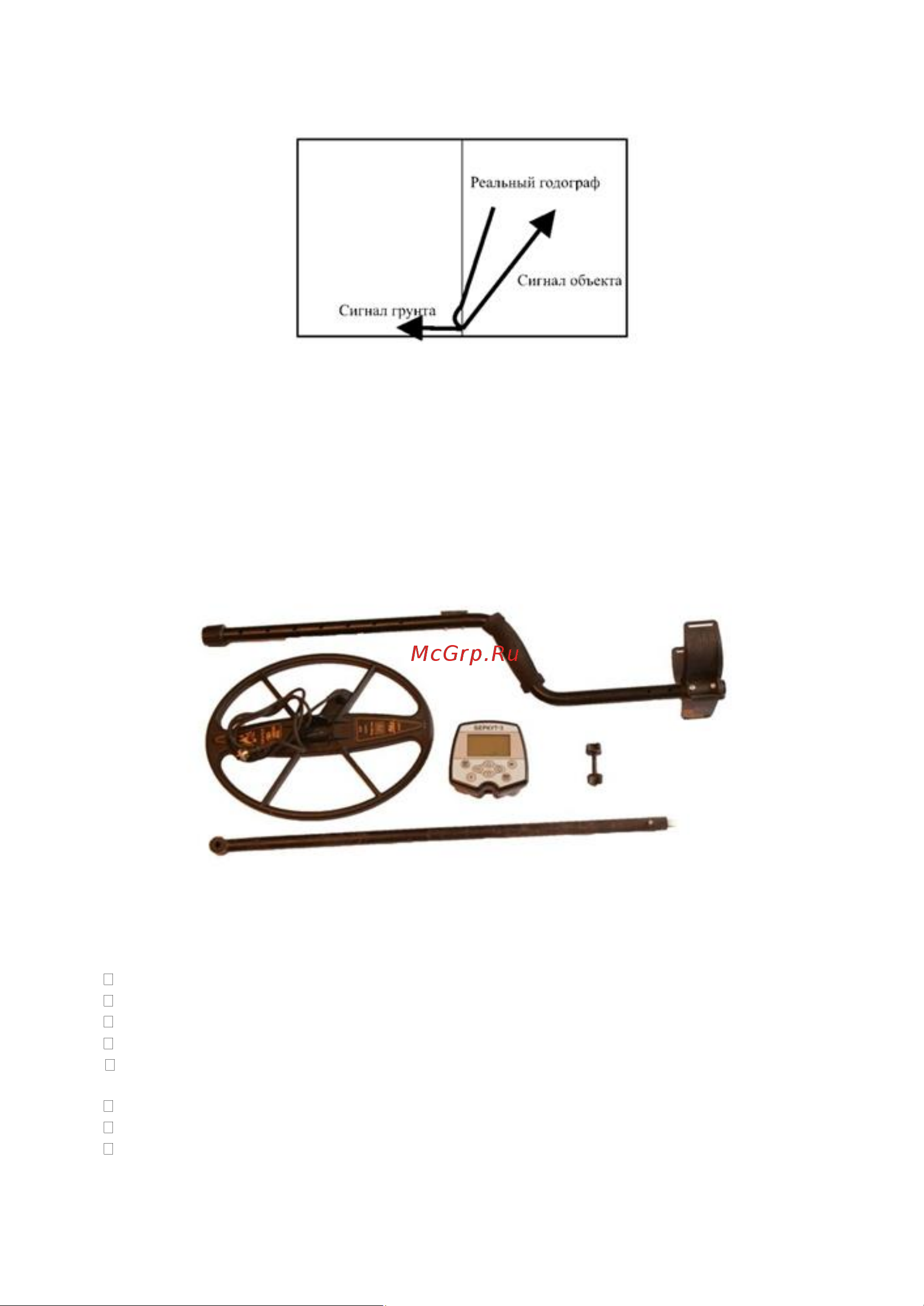

In actual practice the shape of the graph will be defined as the vector sum of signals from

the ground and detected object. For example, a coin taking into account the influence of

ground minerals can look as follows (a Fig. 2):

Fig. 2

The stronger the ground minerals the greater the affect and deformation it will have on the

targets signal and shape on the Hodograph (loops verses a straight line or arrow)

ASSEMBLING YOUR BERKUT 5

Remove the detector from the box. When shipped the detector and parts should

look like Fig. 3.

Fig. 3

Assemble the Detector. For this purpose:

Remove the detector rod from the box;

Remove the electronic control box from the shipping box;

Install control box on upper portion of the rod by sliding onto the installed tab;

Install supplied coil on the lower rod. Tighten coil bolts snug. Do not over tighten;

Wrap the coil wire around the rod insuring the wire does not hang lose. Loose coil

wires may cause false responses.

Connect the coil to the socket on the rear of the control housing.

Remove battery compartment cover and install batteries;

Close back cover.
