SECTION 6— MAINTENANCE & ADJUSTMENTS
Removing the Flail Screen
WARNING: 5IFJNQFMMFSTTISFEEFSCMBEFBOE
chipper blades are sharp. Wear leather work gloves
to protect your hands when cleaning out the
reduction chamber.
If the discharge area becomes clogged, remove the flail screen
and clean area as follows:
1. Stop engine and make certain the chipper shredder has
come to a complete stop.
WARNING:
The muffler and surrounding area will
be hot if the engine has been running. Use caution
and protect your hands if working near the muffler.
2. Disconnect spark plug wire from spark plug and ground
against the engine.
3. Remove the bag and two wing knobs on each side of the
DIVUFEFGMFDUPS4FF'JHVSF"
4. Lift the chute deflector up to keep it out of the way. See
'JHVSF#
5. Remove the two hairpin clips from each clevis pin which
extend through the housing and remove pins. See Figure
$
Remove the flail screen from inside the housing and clean
the screen by scraping or washing with water. See Figure
%
Reinstall the screen, making certain to reassemble the flail
screen with the curve side down.
8. Reattach the chute deflector with the hardware previously
removed and connect the bag to unit.
A
B
C
D
Model Series 460 Shown

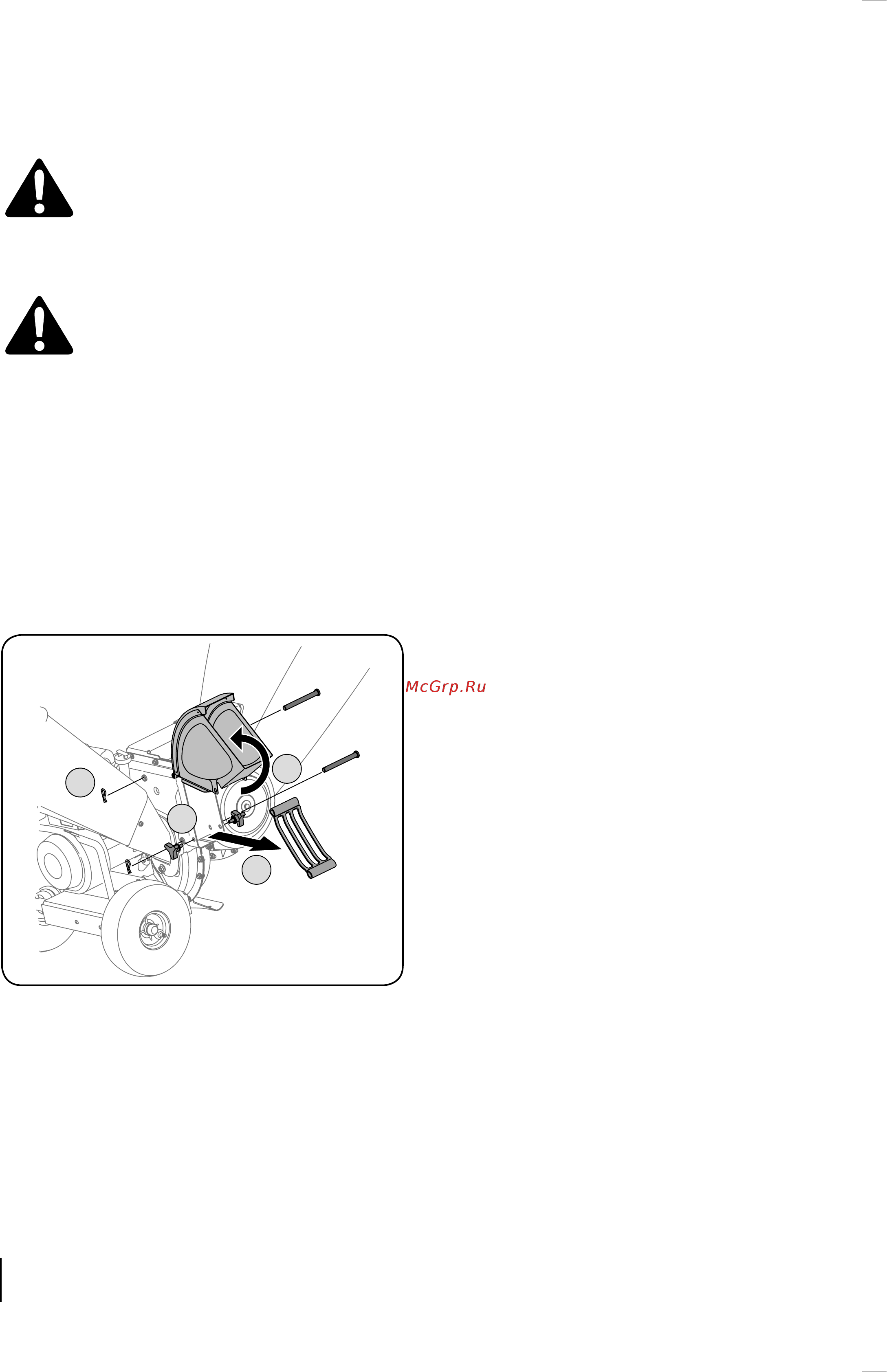

Figure 6-2
14 SECTION 6— MAINTENANCE & ADJUSTMENTS
Removing the Flail Screen
WARNING: 5IFJNQFMMFSTTISFEEFSCMBEFBOE
chipper blades are sharp. Wear leather work gloves
to protect your hands when cleaning out the
reduction chamber.
If the discharge area becomes clogged, remove the flail screen
and clean area as follows:
1. Stop engine and make certain the chipper shredder has
come to a complete stop.
WARNING:
The muffler and surrounding area will
be hot if the engine has been running. Use caution
and protect your hands if working near the muffler.
2. Disconnect spark plug wire from spark plug and ground
against the engine.
3. Remove the bag and two wing knobs on each side of the
DIVUFEFGMFDUPS4FF'JHVSF"
4. Lift the chute deflector up to keep it out of the way. See
'JHVSF#
5. Remove the two hairpin clips from each clevis pin which
extend through the housing and remove pins. See Figure
$
Remove the flail screen from inside the housing and clean
the screen by scraping or washing with water. See Figure
%
Reinstall the screen, making certain to reassemble the flail
screen with the curve side down.
8. Reattach the chute deflector with the hardware previously
removed and connect the bag to unit.
A
B
C
D
Model Series 460 Shown
Figure 6-2
раЗдел 6. регулИровка И технИческое обслужИванИе
Демонтаж защитного экрана шарнирных ножей
ПРЕДУПРЕЖДЕНИЕ! Ножи крыльчатки и из-
мельчителя веток очень острые. Надевайте ко-
жаные рабочие рукавицы для защиты рук во
время очистки выводной камеры.
При засорении области выброса снимите защитный экран
шарнирных ножей и очистите, как указано ниже.
1. Остановите двигатель и убедитесь, что измельчитель
полностью остановился.
ПРЕДУПРЕЖДЕНИЕ! Если двигатель работал,
глушитель и область вокруг него будут горячими.
Будьте осторожны и используйте средства защи-
ты рук при выполнении работ вблизи глушителя.
2. Отсоедините высоковольтный провод свечи зажигания и
заземлите его на корпус двигателя.
3. Снимите мешок и отверните две барашковые гайки с
каждой стороны выходного дефлектора. См. рис. 6-2A.
4. Приподнимите выходной дефлектор, чтобы освободить
доступ. См. рис. 6-2B.
5. Снимите два шплинта с каждого штифта с головкой, кото-
рый проходят через кожух, и извлеките их. См. рис. 6-2C.
6. Снимите защитный экран с внутренней стороны кожуха и
очистите его, выскоблив и промыв водой. См. рис. 6-2D.
7. Установите экран на место, убедившись в том, что после
сборки его изогнутая сторона обращена вниз.
8. Прикрепите выходной дефлектор предварительно снятым
крепежом и закрепите мешок на измельчителе.
