MTD ROVER 464 Q 24A-464Q333 [15/20] Обслуживание

MTD ROVER 464 Q 24A-464Q333 [15/20] Обслуживание

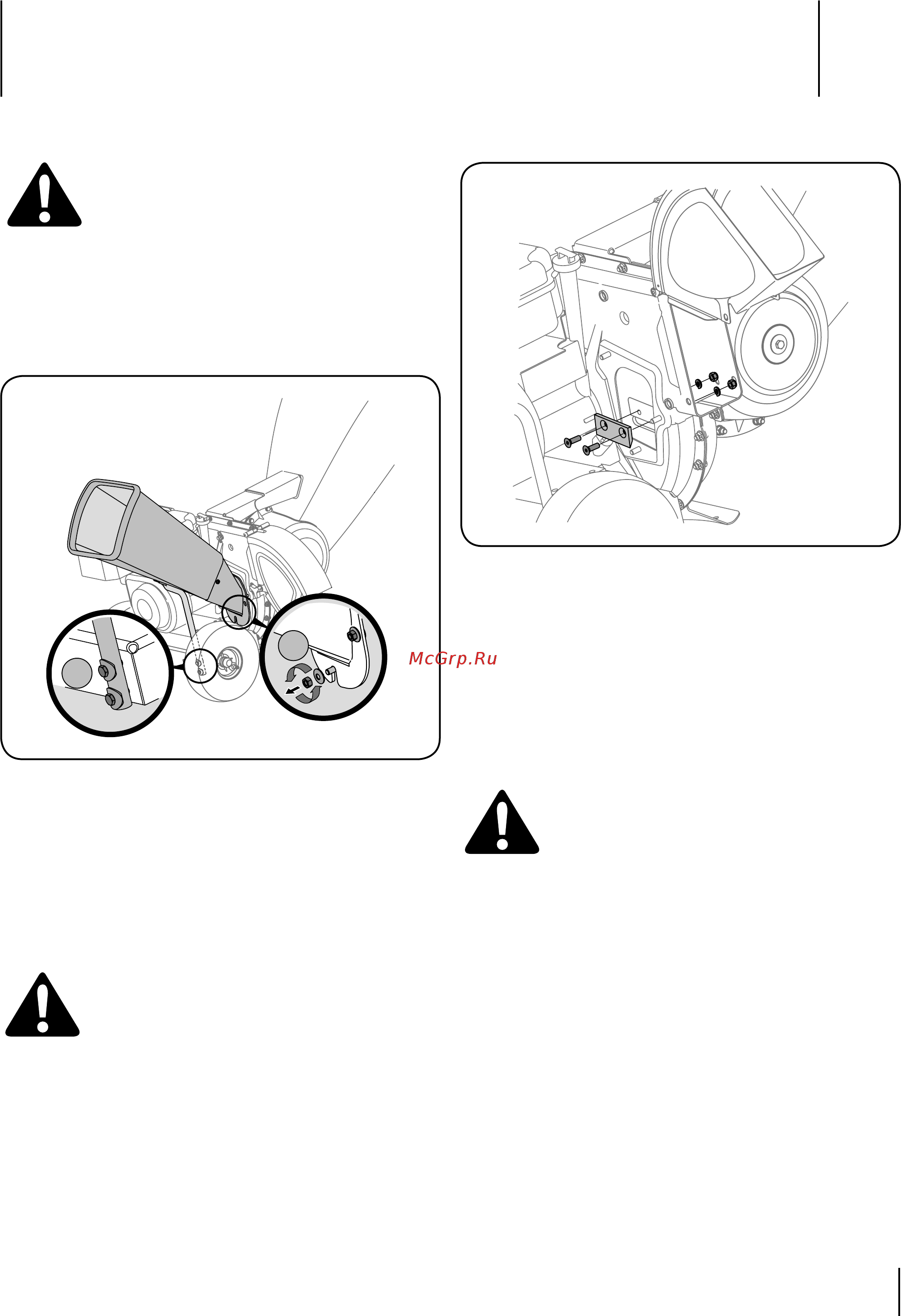

Рис. 7-1
4. Отверните шестигранные болты и снимите опорную стойку
(модели серии 460) с рамы. См. рис. 7-1B.
5. Проверните узел крыльчатки рукой, пока не определите
положение одного из двух ножей в отверстии приемного
желоба.
6. Отверните промежуточные шестигранные винты, стопор-
ные шайбы и шестигранные гайки, которыми ножи крепят-
ся к крыльчатке, и снимите ножи. См. рис. 7-2. Сложите
снятые детали.
ПРИМЕЧАНИЕ. Для наружной стороны ножа
используется шестигранный ключ 3/16 дюйма, а
для внутренней стороны крыльчатки - торцевой
ключ 1/2 дюйма. Чтобы ослабить гайку, держите
шестигранный ключ неподвижно, при этом вра-
щайте торцевой ключ.
Рис. 7-2
7. Установите запасной нож (арт. 781-0490), используя пред-
варительно снятый крепеж, или заточите его.
ВАЖНО. При заточке ножей надевайте рукавицы для
защиты рук. Сохраняйте оригинальный угол заточки и
следите за равномерностью заточки каждого ножа.
8. Для замены второго ножа проверните крыльчатку, чтобы
получить доступ к ножу, и повторите указанные выше
действия.
ПРИМЕЧАНИЕ. Убедитесь в том, что ножи установле-
ны острым краем вверх. Затяните крепеж с моментом
28-34 Н*м.
ПРЕДУПРЕЖДЕНИЕ! Ножи крыльчатки и из-
мельчителя веток очень острые. Надевайте ко-
жаные рабочие рукавицы для защиты рук.
Уход за ножами
Ножи измельчителя веток
ПРЕДУПРЕЖДЕНИЕ! Перед выполнением тех-
нического обслуживания машины выключайте
двигатель, отсоединяйте колпачок свечи зажи-
гания и заземляйте его на корпус.
1. Отсоедините высоковольтный провод свечи зажигания и
заземлите его на корпус двигателя.
2. Снимите защитный экран шарнирных ножей по приведен-
ной выше схеме.
3. Отверните три шестигранных гайки с шайбами и снимите
приемный желоб. См. рис. 7-1A.
Operation
5
11
WARNING:
The operation of any chipper shredder
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely. Always
wear the safety glasses provided with this unit or
eye shields before chipping or shredding and while
performing any adjustments or repairs.
Starting Engine
IMPORTANT: #FDBVTFUIJTNBOVBMDPWFSTTFWFSBMEJGGFSFOUNPEFM
units, different starting instructions may apply to your particular
engine. Some engines may have a fuel petcock, some may not.
4PNFFOHJOFTNBZIBWF0O0GGTXJUDIFTPUIFSNBZOPU4PNF
units will utilize a choke system, while others will require priming.
These factors depend on what make and model engine comes
with your particular unit. For these reasons, please refer to the
FOHJOFPQFSBUPSTNBOVBMGPSUIFDPSSFDUTUBSUJOHQSPDFEVSF
Basic Starting Procedure:
1. Attach spark plug wire to spark plug. Make certain the
metal cap on the end of the spark plug is fastened securely
over metal tip on the spark plug.
2. 0QFOGVFMTIVUPGGWBMWF*GFRVJQQFEBOENBLFTVSFUIF
0O0GGTXJUDIJTJOUIF0OQPTJUJPOJGFRVJQQFE
3. .PWFDIPLFDPOUSPMMFWFSUP$)0,&QPTJUJPOJGFRVJQQFE
See Figure 5-1. If the unit has a primer, prime the motor as
JOTUSVDUFEJOUIFFOHJOFPQFSBUPSTNBOVBM
NOTE: A warm engine may not require choking or priming.
4. Move throttle control lever to FAST position (if equipped).
See Figure 5-1.
Figure 5-1
5. Grasp starter handle and pull rope out slowly until engine
reaches start of compression cycle (rope will pull slightly
harder at this point).
NOTE: A noise will be heard when finding the start of the
compression cycle. This noise is caused by the flails and
fingers, which are part of the shredding mechanism, and it
should be expected until the impeller reaches full speed.
 Pull rope with a rapid, continuous, full arm stroke. Keep a
firm grip on starter handle. Let rope rewind slowly.
 Repeat the previous steps until engine starts. When engine
starts, move choke control gradually to RUN position until
the engine is running smoothly.
WARNING: Never run the engine indoors or in a
poorly ventilated area. Engine exhaust contains
carbon monoxide, an odorless and deadly gas.
Stopping Engine
1. .PWFUISPUUMFDPOUSPMMFWFSUP4501QPTJUJPOJGFRVJQQFE
PSQVTISPDLFSTXJUDIUP0''4FF'JHVSF
NOTE: See your engine manual packed with your unit for
more detailed instructions.
CAUTION: Never stop the engine by moving the
DIPLFMFWFSJOUPUIF$)0,&QPTJUJPO#BDLGJSFGJSFPS
engine damage could result.
Figure 5-2
Lowering the Hopper
1. With one hand grasp the handle at the top of the hopper
and lift slightly.
2. With the other hand pull out on the release rod and lower
the hopper to the ground.
Operation
5
11
WARNING:
The operation of any chipper shredder
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely. Always
wear the safety glasses provided with this unit or
eye shields before chipping or shredding and while
performing any adjustments or repairs.
Starting Engine
IMPORTANT: #FDBVTFUIJTNBOVBMDPWFSTTFWFSBMEJGGFSFOUNPEFM
units, different starting instructions may apply to your particular
engine. Some engines may have a fuel petcock, some may not.
4PNFFOHJOFTNBZIBWF0O0GGTXJUDIFTPUIFSNBZOPU4PNF
units will utilize a choke system, while others will require priming.
These factors depend on what make and model engine comes
with your particular unit. For these reasons, please refer to the
FOHJOFPQFSBUPSTNBOVBMGPSUIFDPSSFDUTUBSUJOHQSPDFEVSF
Basic Starting Procedure:
1. Attach spark plug wire to spark plug. Make certain the
metal cap on the end of the spark plug is fastened securely
over metal tip on the spark plug.
2. 0QFOGVFMTIVUPGGWBMWF*GFRVJQQFEBOENBLFTVSFUIF
0O0GGTXJUDIJTJOUIF0OQPTJUJPOJGFRVJQQFE
3. .PWFDIPLFDPOUSPMMFWFSUP$)0,&QPTJUJPOJGFRVJQQFE
See Figure 5-1. If the unit has a primer, prime the motor as
JOTUSVDUFEJOUIFFOHJOFPQFSBUPSTNBOVBM
NOTE: A warm engine may not require choking or priming.
4. Move throttle control lever to FAST position (if equipped).
See Figure 5-1.
Figure 5-1
5. Grasp starter handle and pull rope out slowly until engine
reaches start of compression cycle (rope will pull slightly
harder at this point).
NOTE: A noise will be heard when finding the start of the
compression cycle. This noise is caused by the flails and
fingers, which are part of the shredding mechanism, and it
should be expected until the impeller reaches full speed.
 Pull rope with a rapid, continuous, full arm stroke. Keep a
firm grip on starter handle. Let rope rewind slowly.
 Repeat the previous steps until engine starts. When engine
starts, move choke control gradually to RUN position until
the engine is running smoothly.
WARNING:
Never run the engine indoors or in a
poorly ventilated area. Engine exhaust contains
carbon monoxide, an odorless and deadly gas.
Stopping Engine
1. .PWFUISPUUMFDPOUSPMMFWFSUP4501QPTJUJPOJGFRVJQQFE
PSQVTISPDLFSTXJUDIUP0''4FF'JHVSF
NOTE: See your engine manual packed with your unit for
more detailed instructions.
CAUTION: Never stop the engine by moving the
DIPLFMFWFSJOUPUIF$)0,&QPTJUJPO#BDLGJSFGJSFPS
engine damage could result.
Figure 5-2
Lowering the Hopper
1. With one hand grasp the handle at the top of the hopper
and lift slightly.
2. With the other hand pull out on the release rod and lower
the hopper to the ground.
Operation
5
11
WARNING:
The operation of any chipper shredder
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely. Always
wear the safety glasses provided with this unit or
eye shields before chipping or shredding and while
performing any adjustments or repairs.
Starting Engine
IMPORTANT: #FDBVTFUIJTNBOVBMDPWFSTTFWFSBMEJGGFSFOUNPEFM
units, different starting instructions may apply to your particular
engine. Some engines may have a fuel petcock, some may not.
4PNFFOHJOFTNBZIBWF0O0GGTXJUDIFTPUIFSNBZOPU4PNF
units will utilize a choke system, while others will require priming.
These factors depend on what make and model engine comes
with your particular unit. For these reasons, please refer to the
FOHJOFPQFSBUPSTNBOVBMGPSUIFDPSSFDUTUBSUJOHQSPDFEVSF
Basic Starting Procedure:
1. Attach spark plug wire to spark plug. Make certain the
metal cap on the end of the spark plug is fastened securely
over metal tip on the spark plug.
2. 0QFOGVFMTIVUPGGWBMWF*GFRVJQQFEBOENBLFTVSFUIF
0O0GGTXJUDIJTJOUIF0OQPTJUJPOJGFRVJQQFE
3. .PWFDIPLFDPOUSPMMFWFSUP$)0,&QPTJUJPOJGFRVJQQFE
See Figure 5-1. If the unit has a primer, prime the motor as
JOTUSVDUFEJOUIFFOHJOFPQFSBUPSTNBOVBM
NOTE: A warm engine may not require choking or priming.
4. Move throttle control lever to FAST position (if equipped).
See Figure 5-1.
Figure 5-1
5. Grasp starter handle and pull rope out slowly until engine
reaches start of compression cycle (rope will pull slightly
harder at this point).
NOTE: A noise will be heard when finding the start of the
compression cycle. This noise is caused by the flails and
fingers, which are part of the shredding mechanism, and it
should be expected until the impeller reaches full speed.
 Pull rope with a rapid, continuous, full arm stroke. Keep a
firm grip on starter handle. Let rope rewind slowly.
 Repeat the previous steps until engine starts. When engine
starts, move choke control gradually to RUN position until
the engine is running smoothly.
WARNING:
Never run the engine indoors or in a
poorly ventilated area. Engine exhaust contains
carbon monoxide, an odorless and deadly gas.
Stopping Engine
1. .PWFUISPUUMFDPOUSPMMFWFSUP4501QPTJUJPOJGFRVJQQFE
PSQVTISPDLFSTXJUDIUP0''4FF'JHVSF
NOTE: See your engine manual packed with your unit for
more detailed instructions.
CAUTION:
Never stop the engine by moving the
DIPLFMFWFSJOUPUIF$)0,&QPTJUJPO#BDLGJSFGJSFPS
engine damage could result.
Figure 5-2
Lowering the Hopper
1. With one hand grasp the handle at the top of the hopper
and lift slightly.
2. With the other hand pull out on the release rod and lower
the hopper to the ground.
Service
7
15
Figure 7-2
*OTUBMMBSFQMBDFNFOUCMBEF1BSU/PXJUIUIF
hardware removed earlier or sharpen.
IMPORTANT: When sharpening the blade, protect hands by
using gloves. Follow the original angle of grind and make
sure to remove an equal amount from each blade.
8. To replace the other blade, rotate the impeller to expose
the second blade and repeat the steps above.
NOTE: Make certain blades are reassembled with the sharp
edge facing upward. Torque hardware to 250 - 300 in. lbs.
WARNING:
5IFJNQFMMFSTDIJQQFSCMBEFTBOE
shredder blade are sharp. Wear leather work gloves
to protect your hands.
Blade Care
Chipper Blades
WARNING: Always stop engine, disconnect spark
plug, and ground against engine before cleaning,
lubricating or doing any kind of maintenance on
your machine.
1. Disconnect the spark plug wire and ground against the
engine.
2. Remove the flail screen as instructed in the previous
section.
3. Remove the chipper chute by removing three hex nuts and
XBTIFST4FF'JH"
A
B
Figure 7-1
4. Remove the chipper chute support brace (Model Series
GSPNUIFGSBNFCZSFNPWJOHUIFIFYCPMUT4FF'JH
#
5. Rotate impeller assembly by hand until you locate one of
two chipper blades in the chipper chute opening.
 Remove the blade by removing the internal hex screws,
lock washers, and hex nuts which secure it to the impeller.
4FF'JH3FUBJOUIFIBSEXBSF
NOTE: 6TFBwIFYLFZ"MMFOXSFODIPOUIFPVUTJEFPG
the blade and a 1/2” box (or socket) wrench on the inside of
the impeller. Hold the Allen wrench stationary and rotate
the box (or socket) wrench to loosen the nut.
Service
7
15
Figure 7-2
*OTUBMMBSFQMBDFNFOUCMBEF1BSU/PXJUIUIF
hardware removed earlier or sharpen.
IMPORTANT: When sharpening the blade, protect hands by
using gloves. Follow the original angle of grind and make
sure to remove an equal amount from each blade.
8. To replace the other blade, rotate the impeller to expose
the second blade and repeat the steps above.
NOTE: Make certain blades are reassembled with the sharp
edge facing upward. Torque hardware to 250 - 300 in. lbs.
WARNING: 5IFJNQFMMFSTDIJQQFSCMBEFTBOE
shredder blade are sharp. Wear leather work gloves
to protect your hands.
Blade Care
Chipper Blades
WARNING:
Always stop engine, disconnect spark
plug, and ground against engine before cleaning,
lubricating or doing any kind of maintenance on
your machine.
1. Disconnect the spark plug wire and ground against the
engine.
2. Remove the flail screen as instructed in the previous
section.
3. Remove the chipper chute by removing three hex nuts and
XBTIFST4FF'JH"
A
B
Figure 7-1
4. Remove the chipper chute support brace (Model Series
GSPNUIFGSBNFCZSFNPWJOHUIFIFYCPMUT4FF'JH
#
5. Rotate impeller assembly by hand until you locate one of
two chipper blades in the chipper chute opening.
 Remove the blade by removing the internal hex screws,
lock washers, and hex nuts which secure it to the impeller.
4FF'JH3FUBJOUIFIBSEXBSF
NOTE: 6TFBwIFYLFZ"MMFOXSFODIPOUIFPVUTJEFPG
the blade and a 1/2” box (or socket) wrench on the inside of
the impeller. Hold the Allen wrench stationary and rotate
the box (or socket) wrench to loosen the nut.
Service
7
15
Figure 7-2
*OTUBMMBSFQMBDFNFOUCMBEF1BSU/PXJUIUIF
hardware removed earlier or sharpen.
IMPORTANT: When sharpening the blade, protect hands by
using gloves. Follow the original angle of grind and make
sure to remove an equal amount from each blade.
8. To replace the other blade, rotate the impeller to expose
the second blade and repeat the steps above.
NOTE: Make certain blades are reassembled with the sharp
edge facing upward. Torque hardware to 250 - 300 in. lbs.
WARNING:
5IFJNQFMMFSTDIJQQFSCMBEFTBOE
shredder blade are sharp. Wear leather work gloves
to protect your hands.
Blade Care
Chipper Blades
WARNING:
Always stop engine, disconnect spark
plug, and ground against engine before cleaning,
lubricating or doing any kind of maintenance on
your machine.
1. Disconnect the spark plug wire and ground against the
engine.
2. Remove the flail screen as instructed in the previous
section.
3. Remove the chipper chute by removing three hex nuts and
XBTIFST4FF'JH"
A
B
Figure 7-1
4. Remove the chipper chute support brace (Model Series
GSPNUIFGSBNFCZSFNPWJOHUIFIFYCPMUT4FF'JH
#
5. Rotate impeller assembly by hand until you locate one of
two chipper blades in the chipper chute opening.
 Remove the blade by removing the internal hex screws,
lock washers, and hex nuts which secure it to the impeller.
4FF'JH3FUBJOUIFIBSEXBSF
NOTE: 6TFBwIFYLFZ"MMFOXSFODIPOUIFPVUTJEFPG
the blade and a 1/2” box (or socket) wrench on the inside of
the impeller. Hold the Allen wrench stationary and rotate
the box (or socket) wrench to loosen the nut.
Service
7
15
Figure 7-2
*OTUBMMBSFQMBDFNFOUCMBEF1BSU/PXJUIUIF
hardware removed earlier or sharpen.
IMPORTANT: When sharpening the blade, protect hands by
using gloves. Follow the original angle of grind and make
sure to remove an equal amount from each blade.
8. To replace the other blade, rotate the impeller to expose
the second blade and repeat the steps above.
NOTE: Make certain blades are reassembled with the sharp
edge facing upward. Torque hardware to 250 - 300 in. lbs.
WARNING:
5IFJNQFMMFSTDIJQQFSCMBEFTBOE
shredder blade are sharp. Wear leather work gloves
to protect your hands.
Blade Care
Chipper Blades
WARNING: Always stop engine, disconnect spark
plug, and ground against engine before cleaning,
lubricating or doing any kind of maintenance on
your machine.
1. Disconnect the spark plug wire and ground against the
engine.
2. Remove the flail screen as instructed in the previous
section.
3. Remove the chipper chute by removing three hex nuts and
XBTIFST4FF'JH"
A
B
Figure 7-1
4. Remove the chipper chute support brace (Model Series
GSPNUIFGSBNFCZSFNPWJOHUIFIFYCPMUT4FF'JH
#
5. Rotate impeller assembly by hand until you locate one of
two chipper blades in the chipper chute opening.
 Remove the blade by removing the internal hex screws,
lock washers, and hex nuts which secure it to the impeller.
4FF'JH3FUBJOUIFIBSEXBSF
NOTE: 6TFBwIFYLFZ"MMFOXSFODIPOUIFPVUTJEFPG
the blade and a 1/2” box (or socket) wrench on the inside of
the impeller. Hold the Allen wrench stationary and rotate
the box (or socket) wrench to loosen the nut.
Обслуживание

Содержание

Похожие устройства

Скачать
