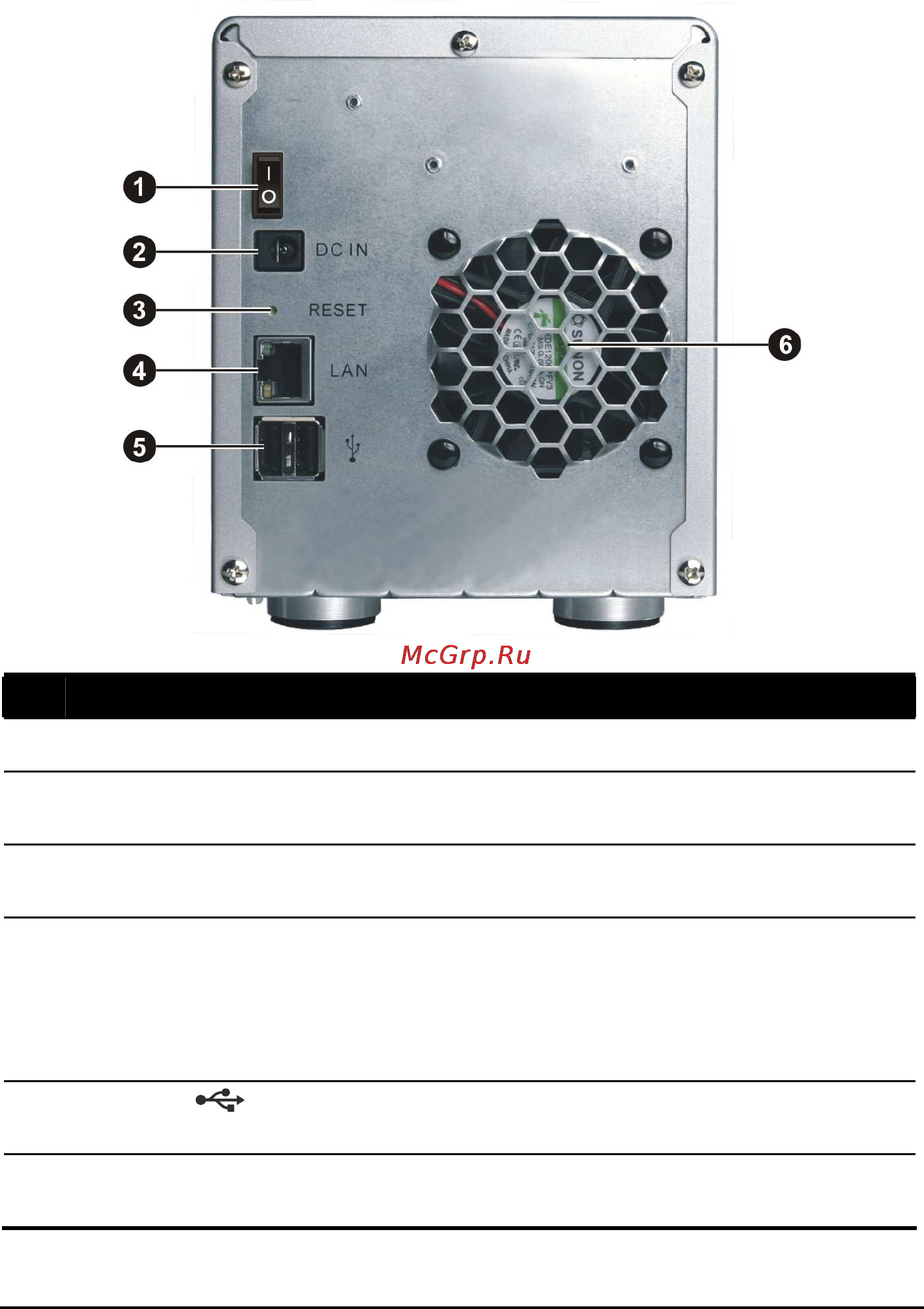

Rear Components
Ref
Component Description
Power Switch
Turns the power on (I) and off (O).
Power Connector
DC IN
Connects to the power adapter.
Reset Switch
RESET
Allows you to reset the system to the factory default
username, password, DHCP, and IP.
RJ-45 Connector
LAN
Connects the LAN cable.
Green LED (upper) – glows green when the system has an
available connection to LAN.
Yellow LED (lower) – blinks yellow when the system is
accessing the LAN.
USB Ports
Connect USB devices, such as USB mass storage device
or digital camera.
Ventilation
Opening
Maintain proper operating temperature. Do not cover or
block the openings.
