Chapter 2 Setting Up

Step 1. Install the Hard Disks

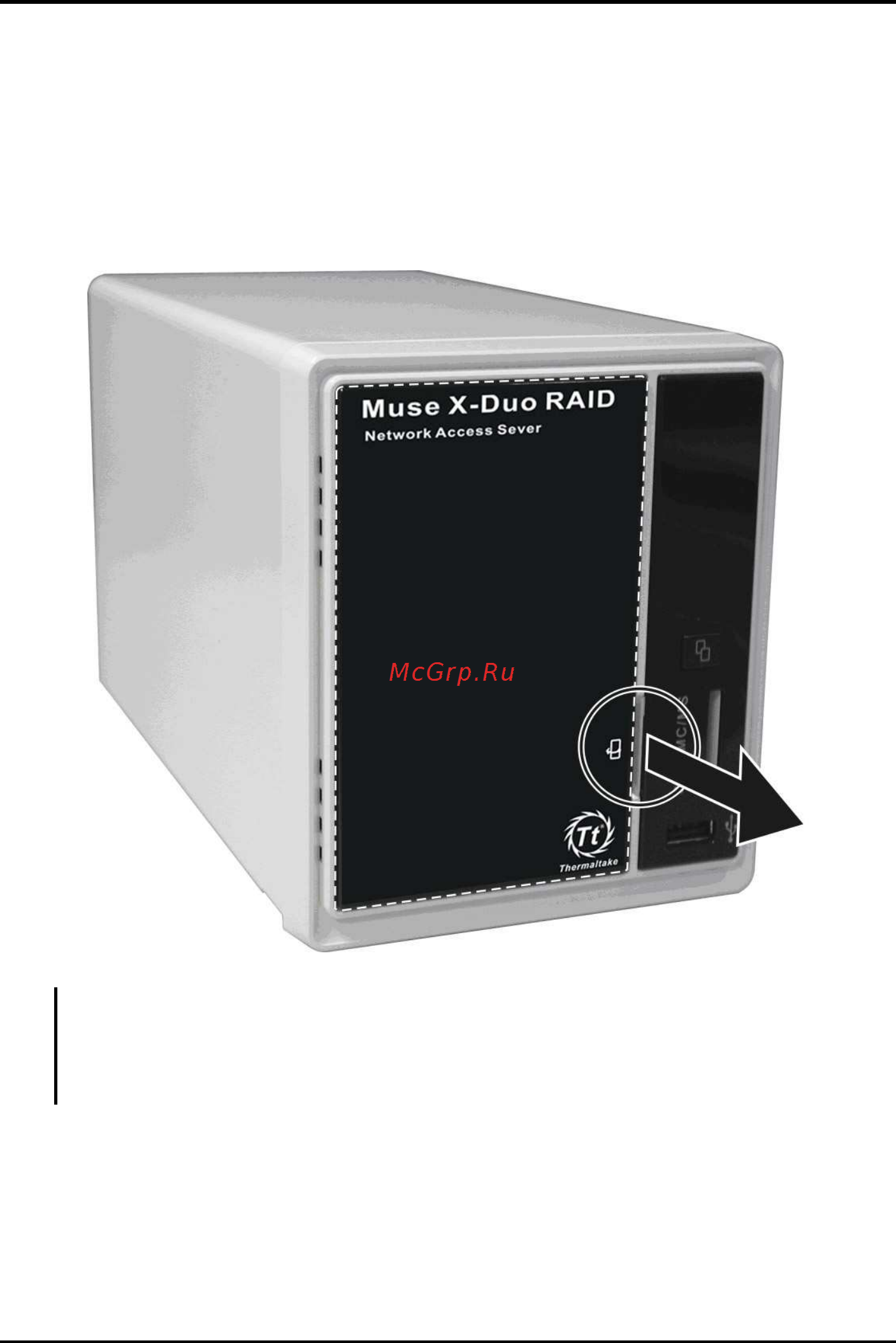

1. Pull off the hard disk drive compartment cover from the device by pulling

on the indented portion.

CAUTION: Be gentle when pulling off the cover. Pulling it vigorously could damage the

cover hinges and device. The compartment cover was designed as a flat surface for the

protection and safety of data and hard disks. It is not encouraged to open the compartment

cover frequently.
