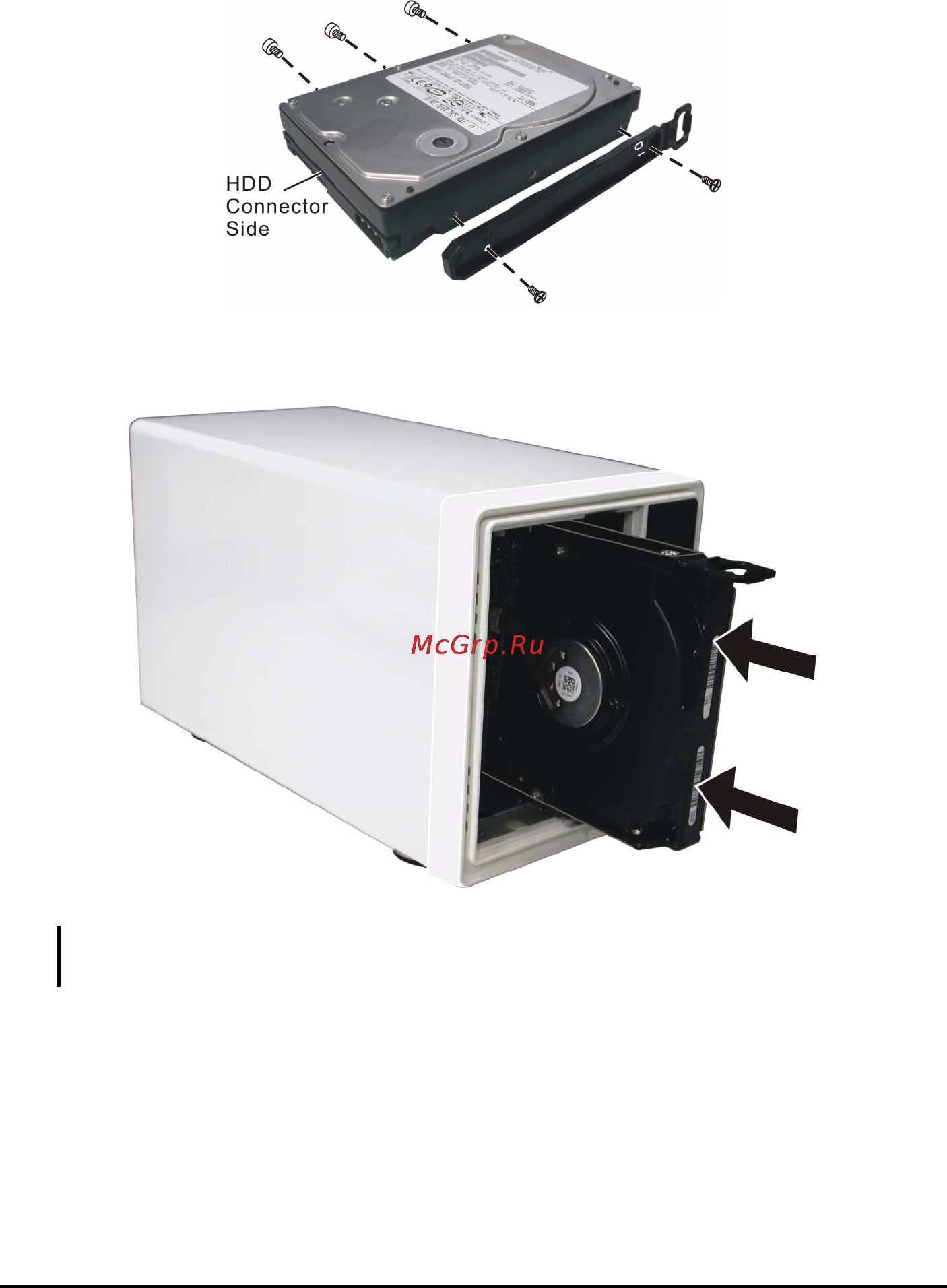

2. Fasten two screws on "1" position to secure the HDD rail on the hard disk

drive. Fasten three screws on the opposite side of the hard disk drive

(without HDD rail).

3. Slide the hard disk drive all the way into the right slot.

NOTE: Install the first hard disk drive on the right slot, the second hard disk drive on the left

slot. This is important when implementing RAID.

4. Repeat step 2 and 3 to install the second hard disk drive.
