Thermaltake Muse X-Duo RAID [89/93] Chapter 4 map shares

Chapter 4 Map Shares

Your Storage System Management allows you to map shared folders.

To map shared folders:

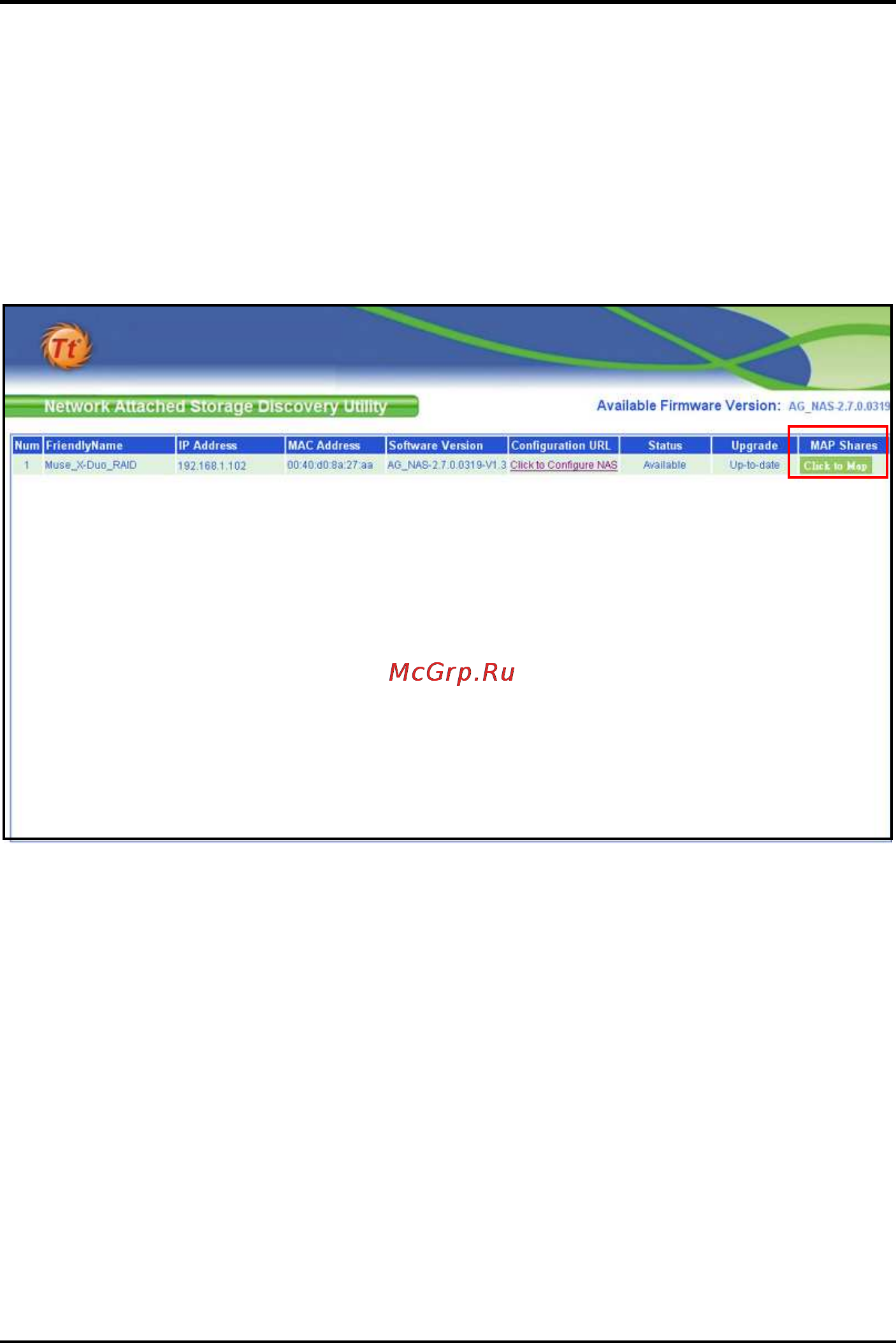

1. From the NAS Discovery tool, click the Click to Map under the MAP Shares

column to map shared folders.
