Thermaltake Muse X-Duo RAID [17/93] Step 2 connect to the network

Step 2. Connect to the Network

1. Make sure that the computer is connected to a router.

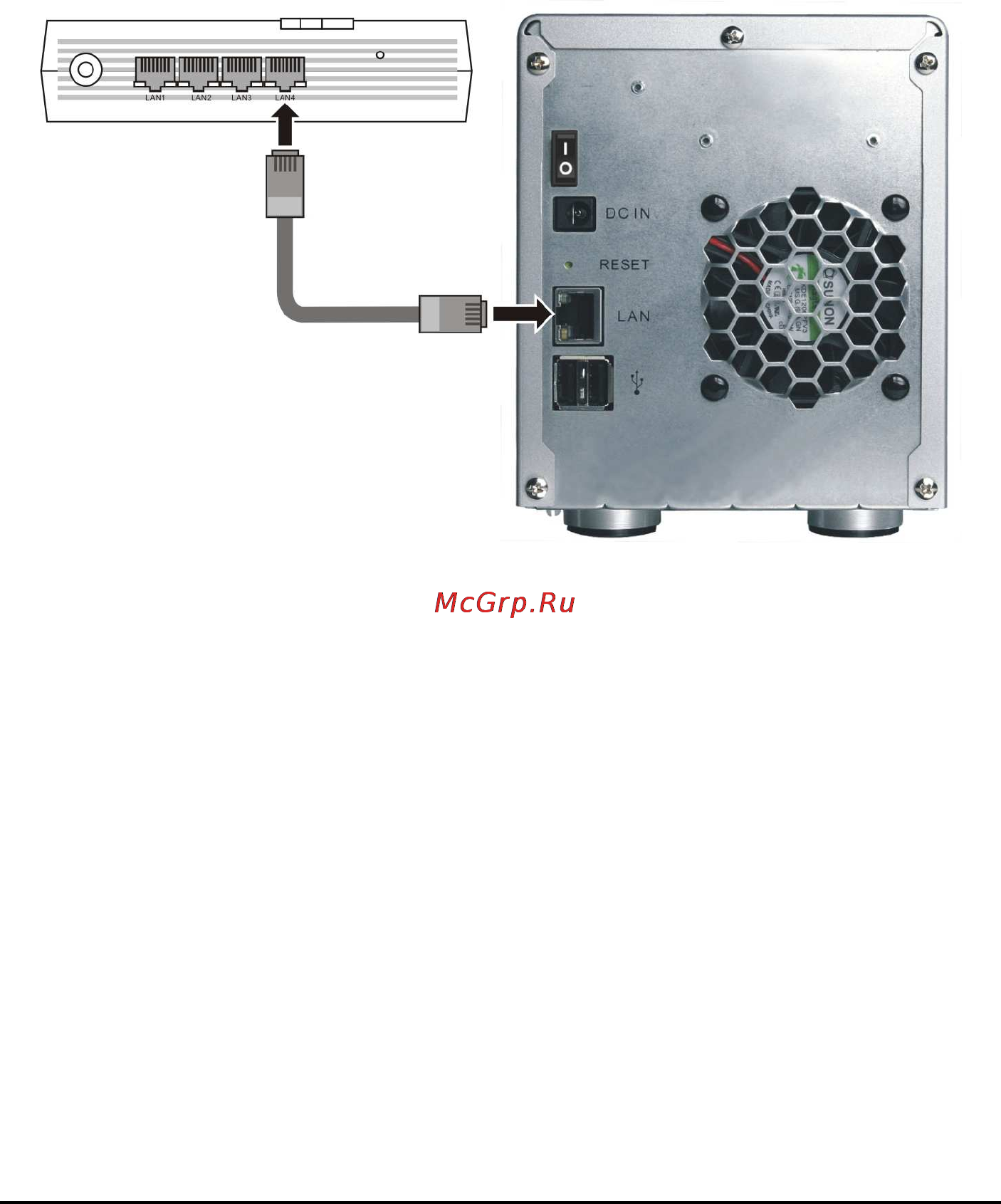

2. Connect one end of the Ethernet cable to the network connector (LAN) on

the back of your storage system (Muse X-Duo RAID) and the other end to a

router.

Or you can connect both your computer and storage system (Muse X-Duo

RAID) to one switch, and this switch is connected to the network which has a

DHCP server.
