Thermaltake Muse X-Duo RAID [83/93] Back to zero disk

Back to Zero Disk

You do not have to press the “reset” button for 15 seconds to go back to zero

disk configuration again. You can use Storage System Management:

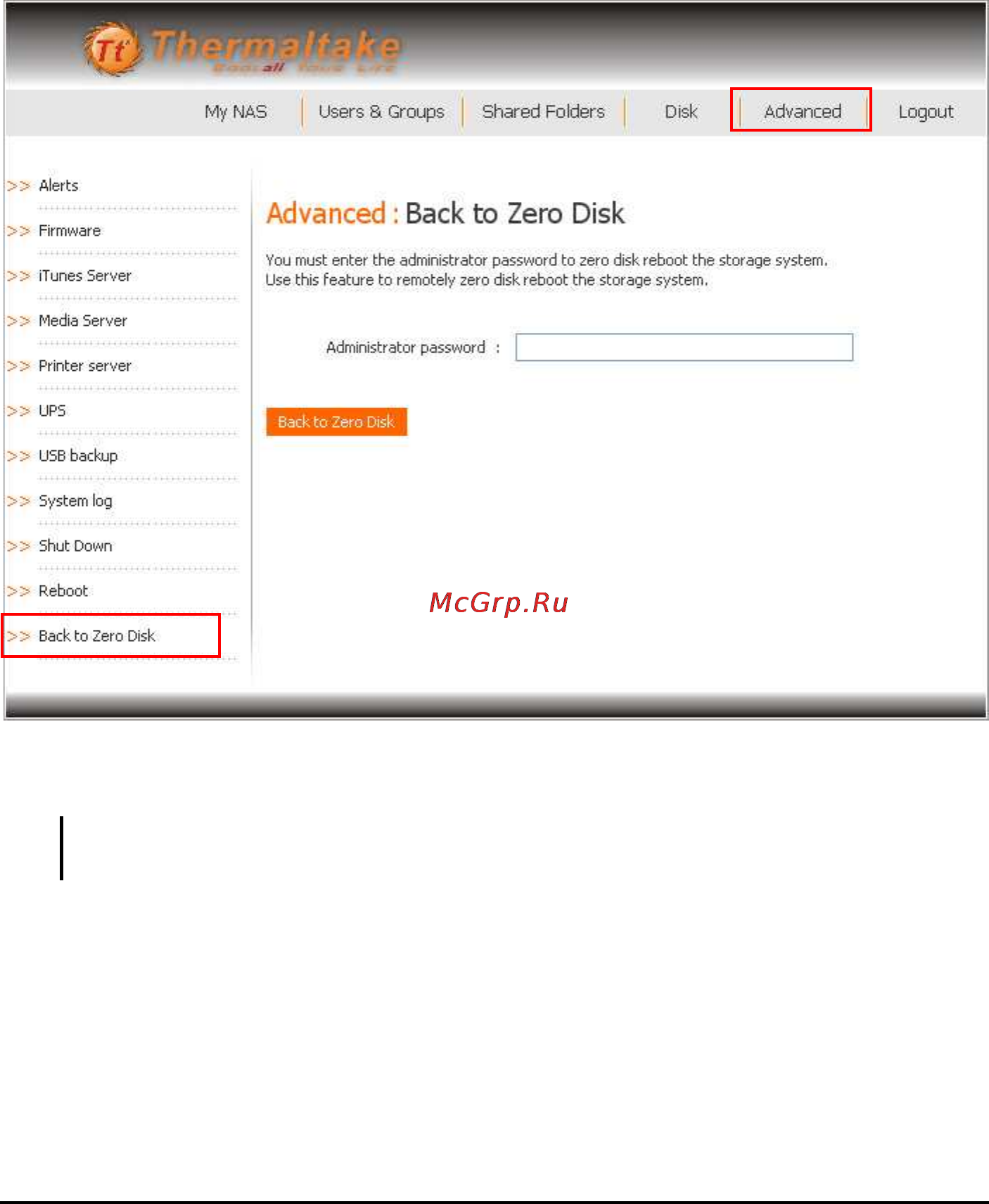

1. Click Back to Zero Disk on the Advanced page and the following screen

appears.

2. Enter the Administrator password.

NOTE: Maximum number of characters is 8. Can include any printable ASCII characters

but not ( ' ).
