78

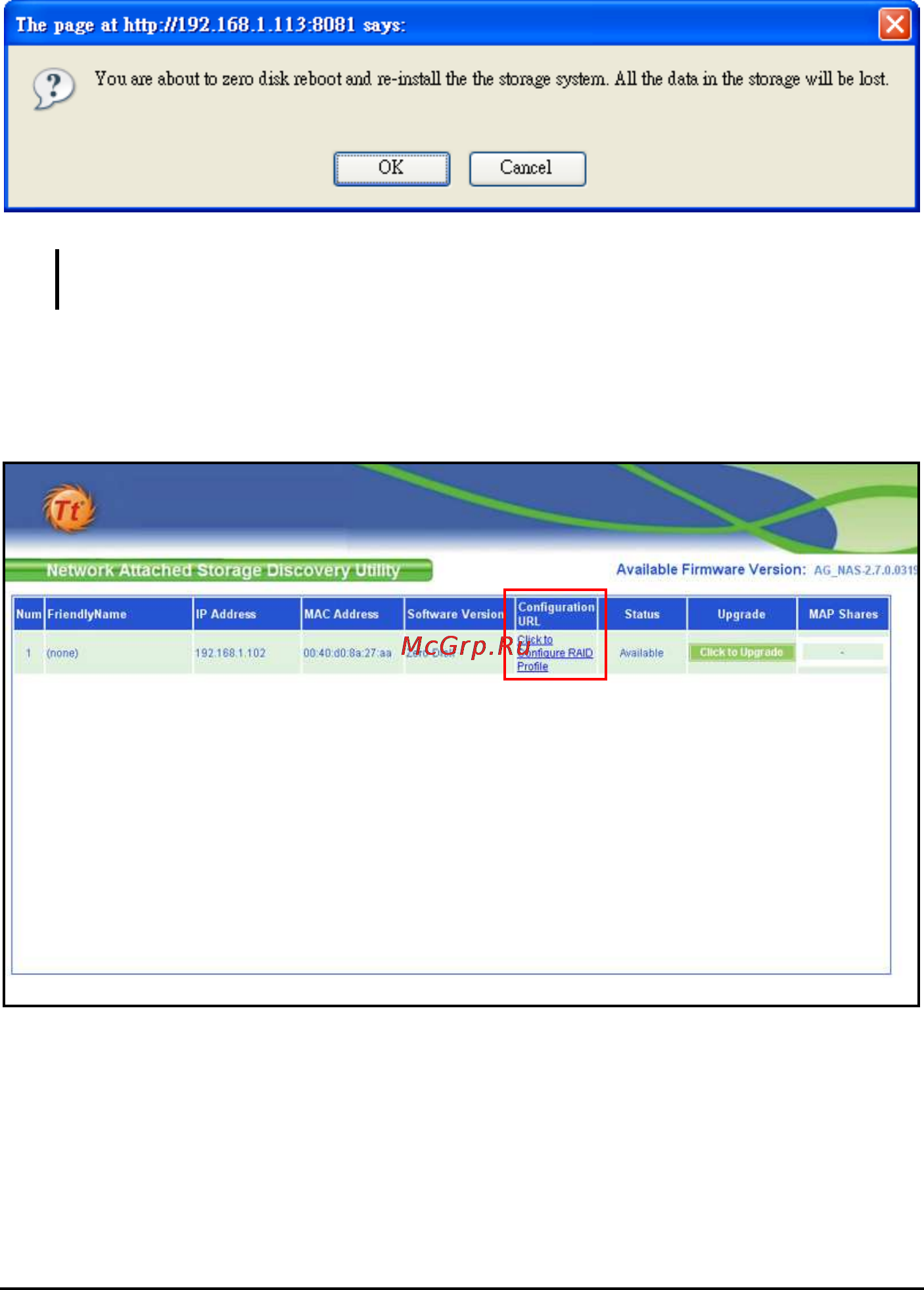

3. Click Back to Zero Disk. A message appears indicating that the system is
rebooting.
CAUTION: Use Back to Zero Disk only if no hard disk is installed in the storage system. An
improper reboot may affect the functionality of storage system in the next startup.
4. Wait for a while (approximately 3~5 minutes) until the following screen
appears. Click the Click to Configure RAID Profile under the Configuration
URL column.
