79

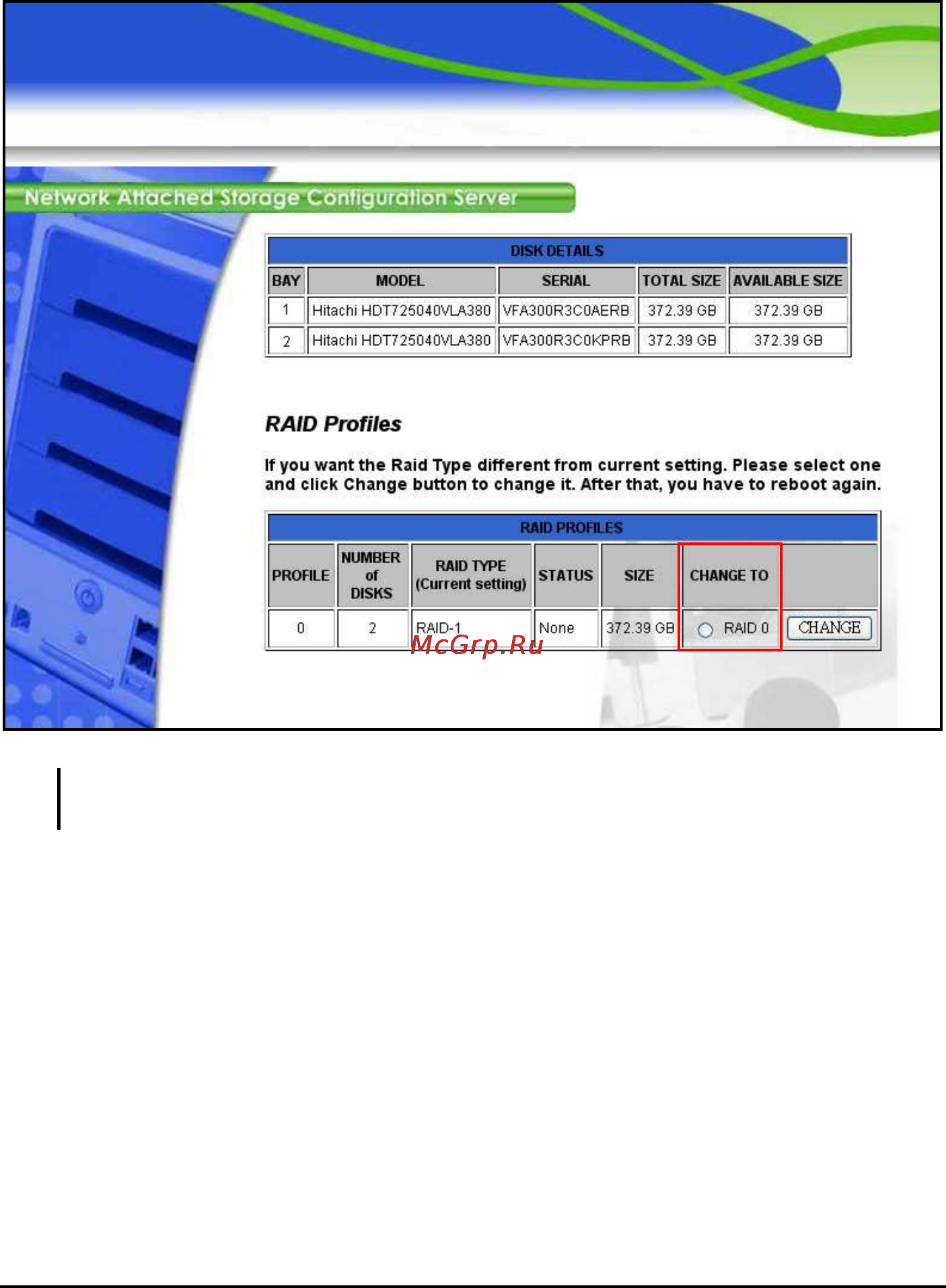

5. The following screen appears. Change the RAID configuration by clicking
the radio button of the available RAID configuration on the CHANGE TO
column under RAID Profiles, then click CHANGE.
WARNING: An improper reboot may affect the functionality of storage system in the next
startup.
