Thermaltake Muse X-Duo RAID [39/93] My nas page

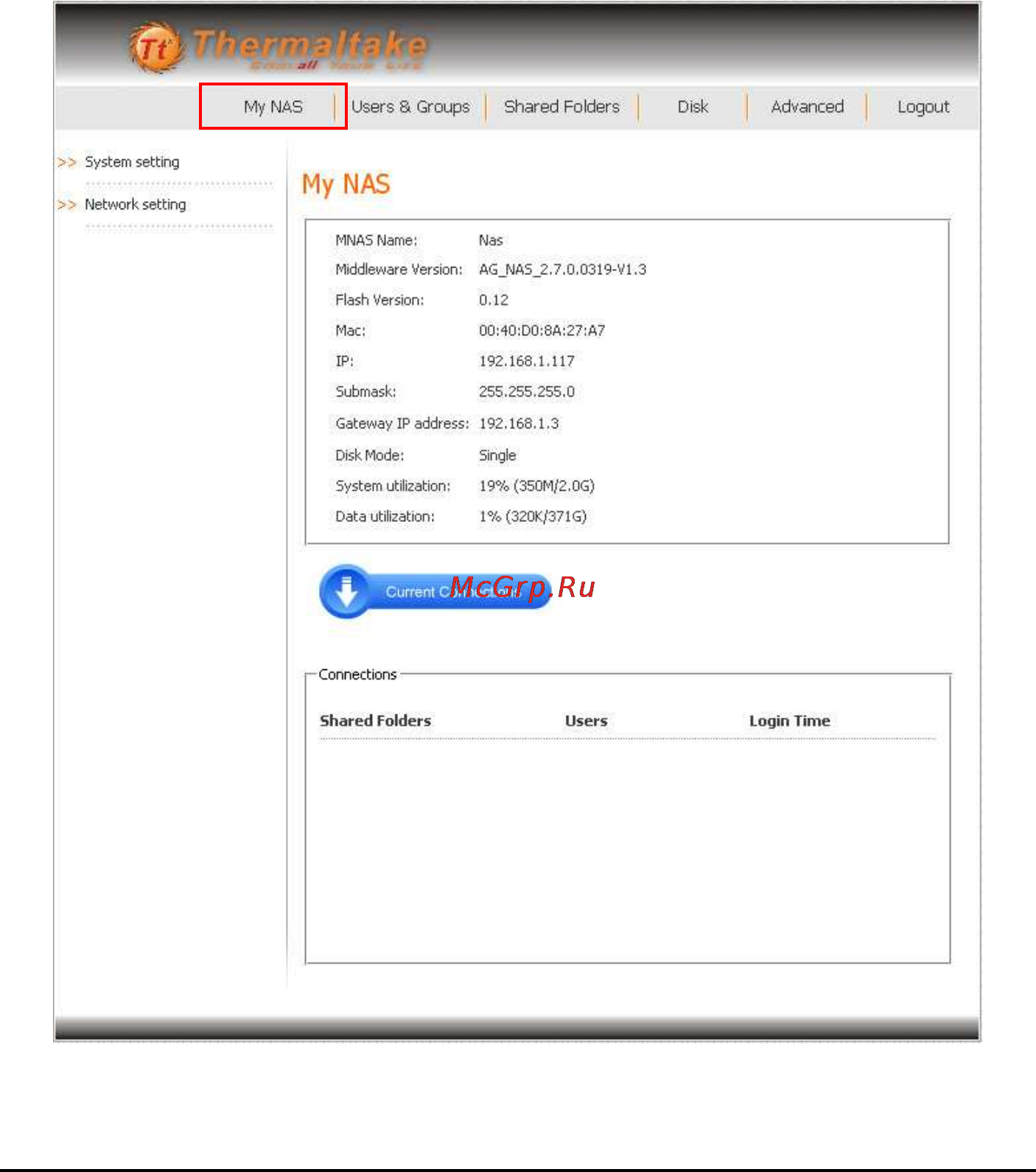

3.3 My NAS Page

Displays a list of your storage system information (name, kernel and flash

version, MAC and IP address, subnet mask, gateway IP address, disk mode,

system and data utilization), and current connections (shared folders, users, and

System utility: shows the current system data partition usage.

Data utility: shows the current data partition usage.
