Thermaltake Muse X-Duo RAID [86/93] Logging out of storage system management

3.8 Logging Out of Storage System Management

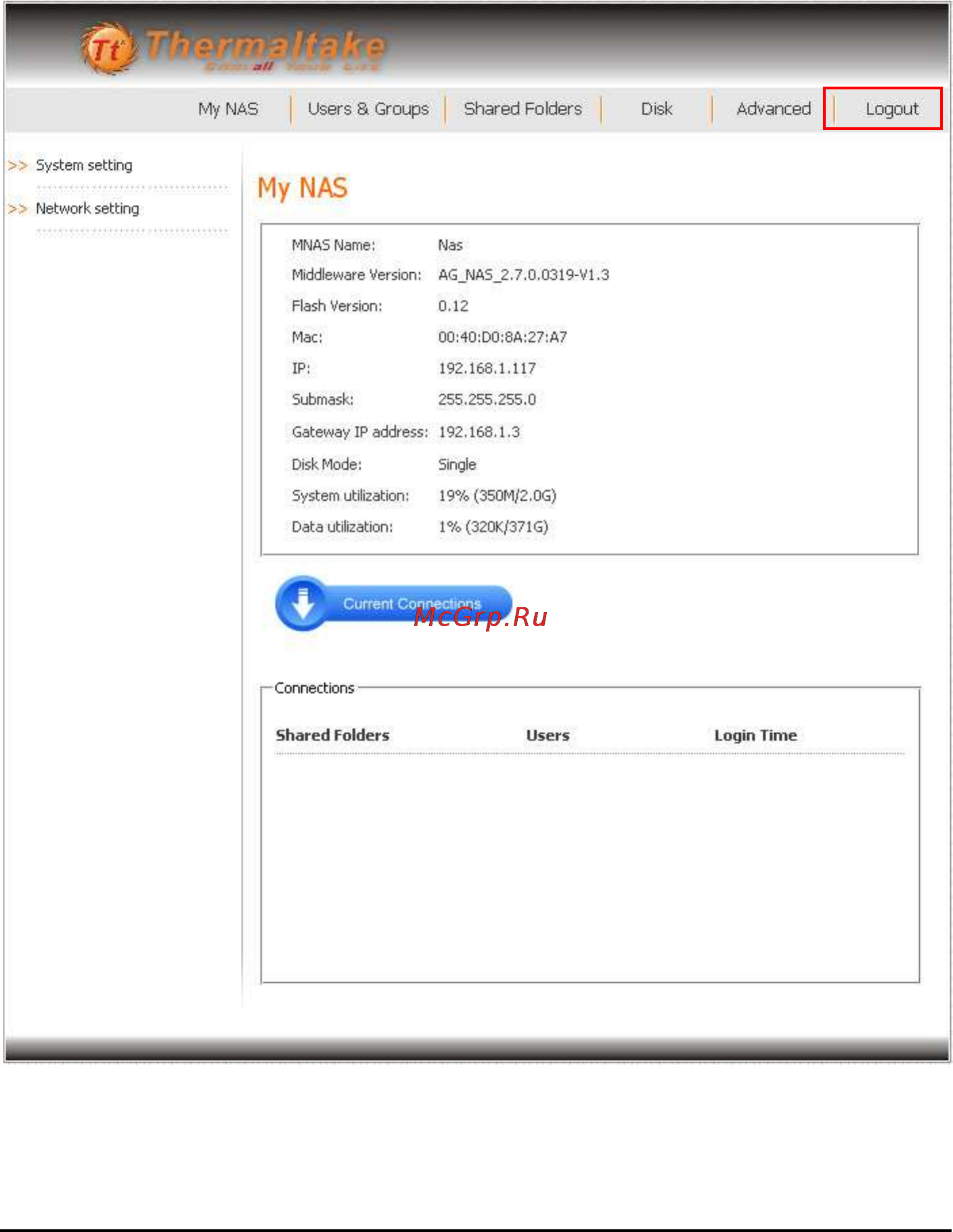

1. To log out from the Storage System Management without shutting it down,

click the Logout button.
