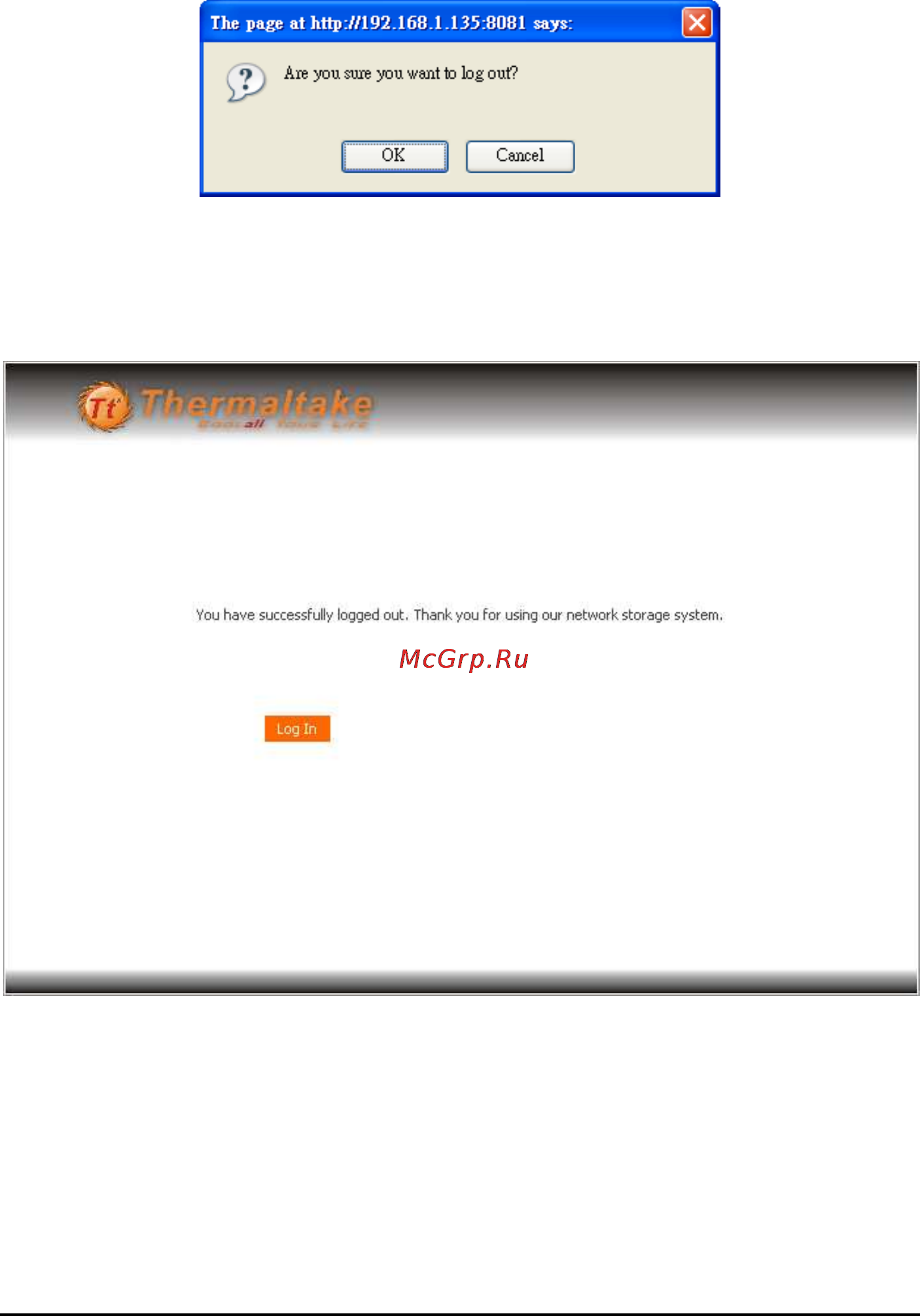

2. When the confirmation message appears, click OK.

3. The following screen appears. You can allow it to stay in the background

and perform other computer task. To use the Storage System Management

later, click Log In.
