Thermaltake Muse X-Duo RAID [20/93] Installing and starting the storage system management

3.1 Installing and Starting the Storage System Management

You need to install Storage System Management before you can perform any

system configurations.

NOTE: Make sure that your storage device is powered off.

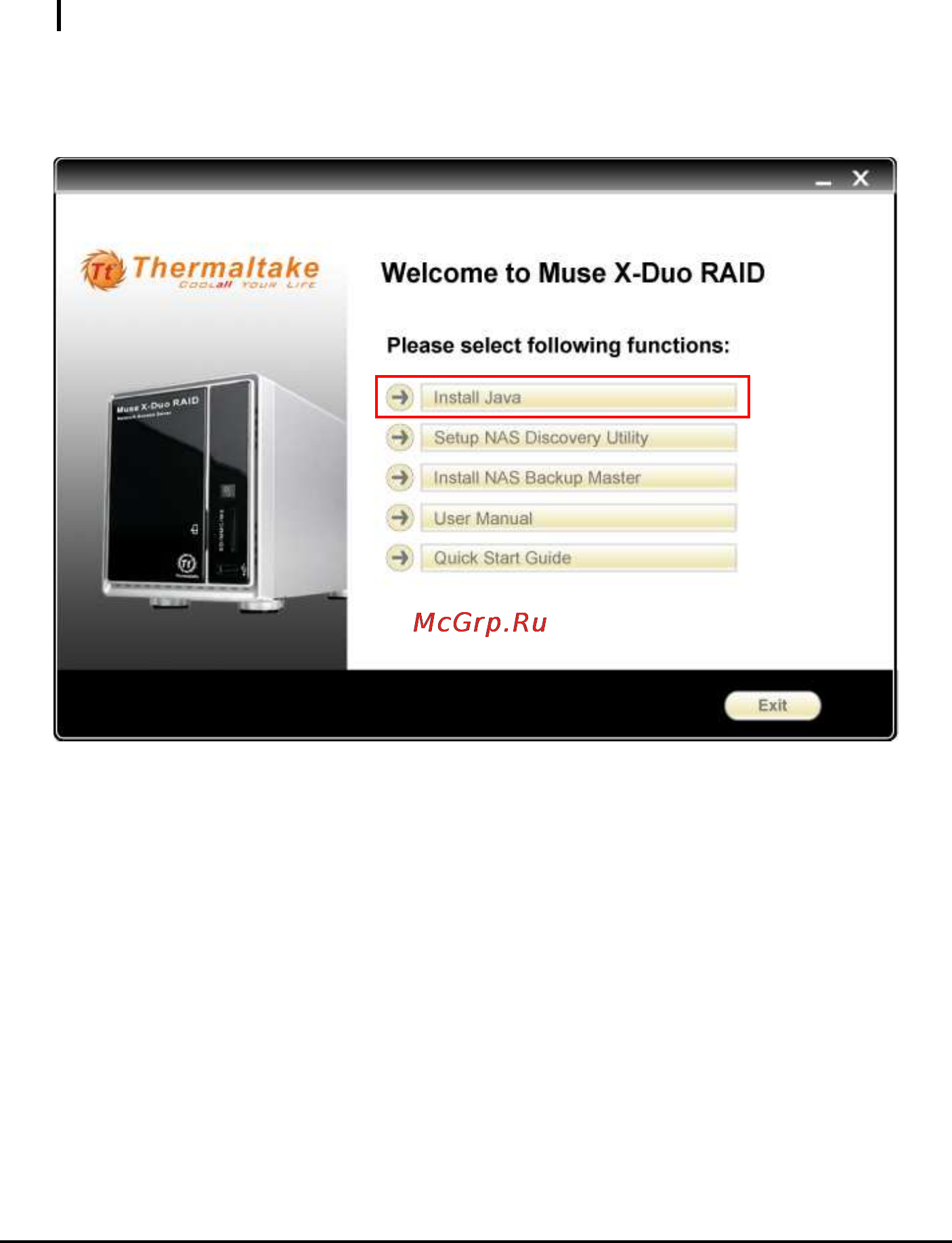

1. Insert the included utility disc into your computer and the following screen

appears (if not, click on the file AutoRun.exe on the utility disc).
