13
Chapter 3 Configuring Your Storage
System
You must install at least one hard disk (right slot) before your storage system
can provide services.

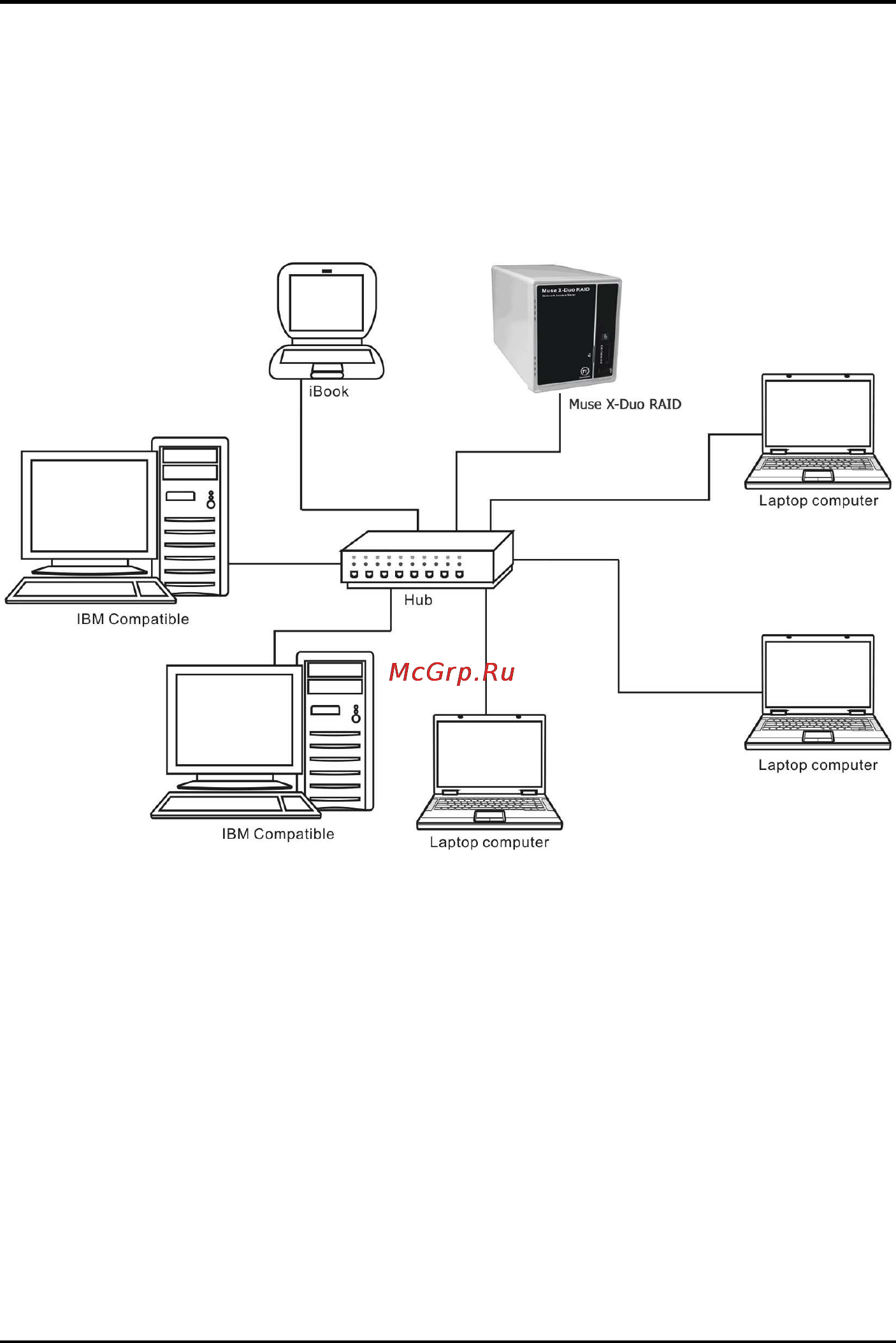

An Muse X-Duo RAID network consists of an Muse X-Duo RAID server and
several clients connected via network links.
