Thermaltake Muse X-Duo RAID [74/93] Usb backup

USB Backup

Allow you to backup the contents of your USB storage device to your storage

system.

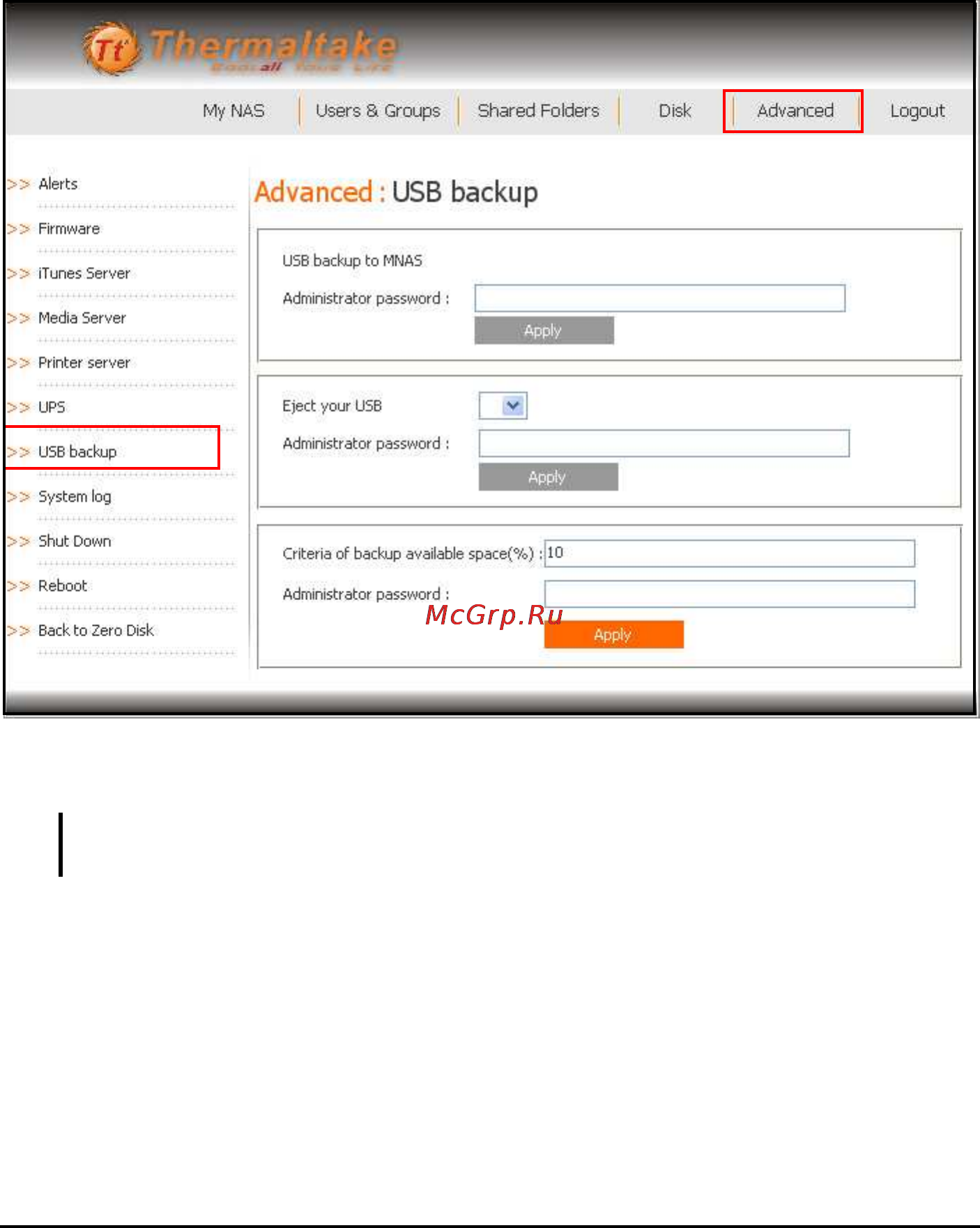

1. Click USB backup on the Advanced page and the following screen appears.

2. In the Administrator password text box, enter the password.

NOTE: Maximum number of characters is 8. Can include any printable ASCII characters

but not ( ' ).
