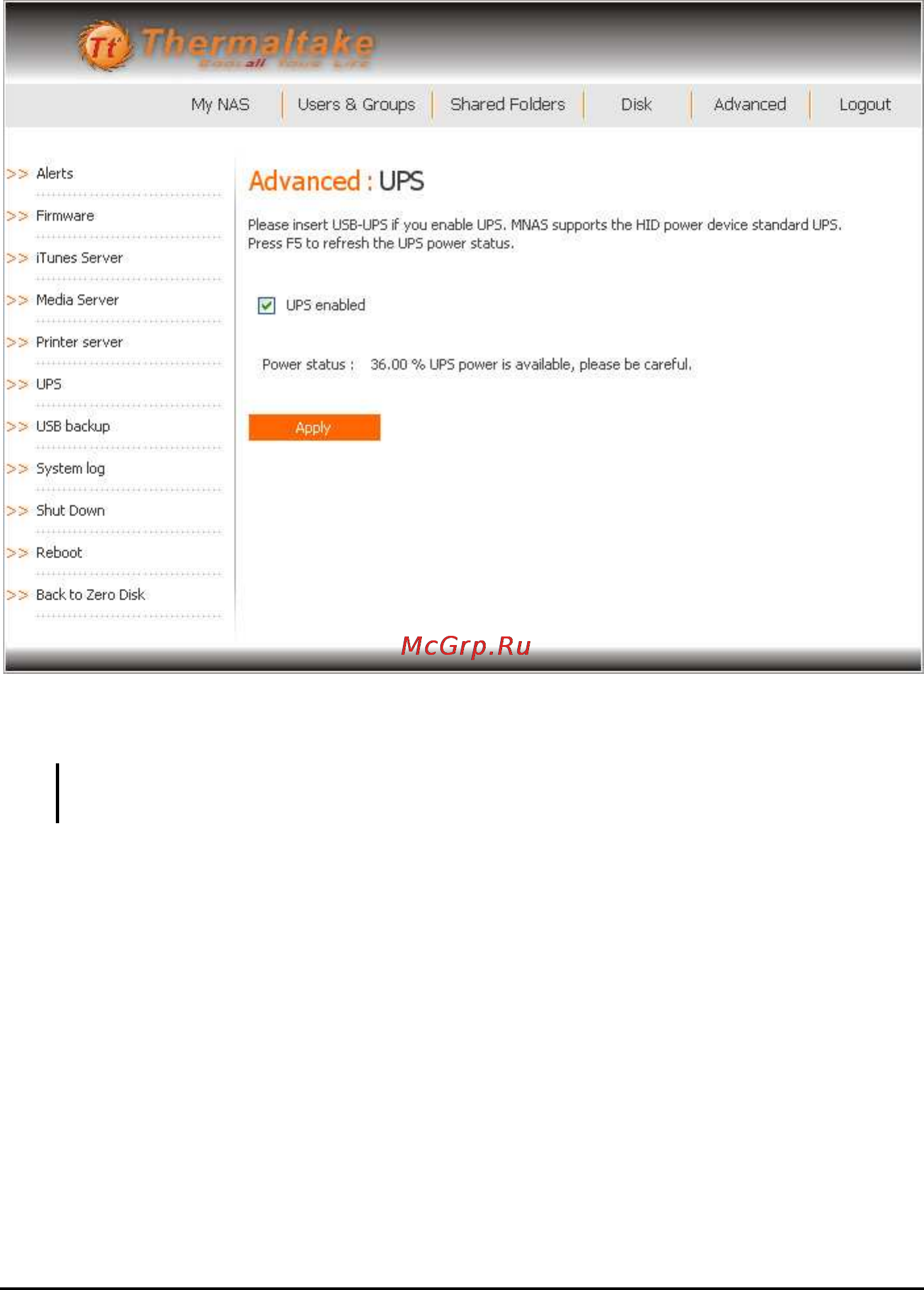

3. Click the checkbox UPS enabled. The Power status (amount of backup

power available) will be shown.

4. Click Apply.

NOTE: A warning message will appear if no USB-UPS is connected to your storage

system.

5. When the confirmation message appears, click OK to confirm.
