UPS

Allow your storage system to use a USB-UPS as temporary backup power.

1. Connect a USB-UPS to any USB port on your storage system.

NOTE: When using the USB-UPS and the power level is not adequate (power level

remaining reaches <= 3 % of normal charge), an email alert will be sent to inform you to

shutdown the storage system immediately.

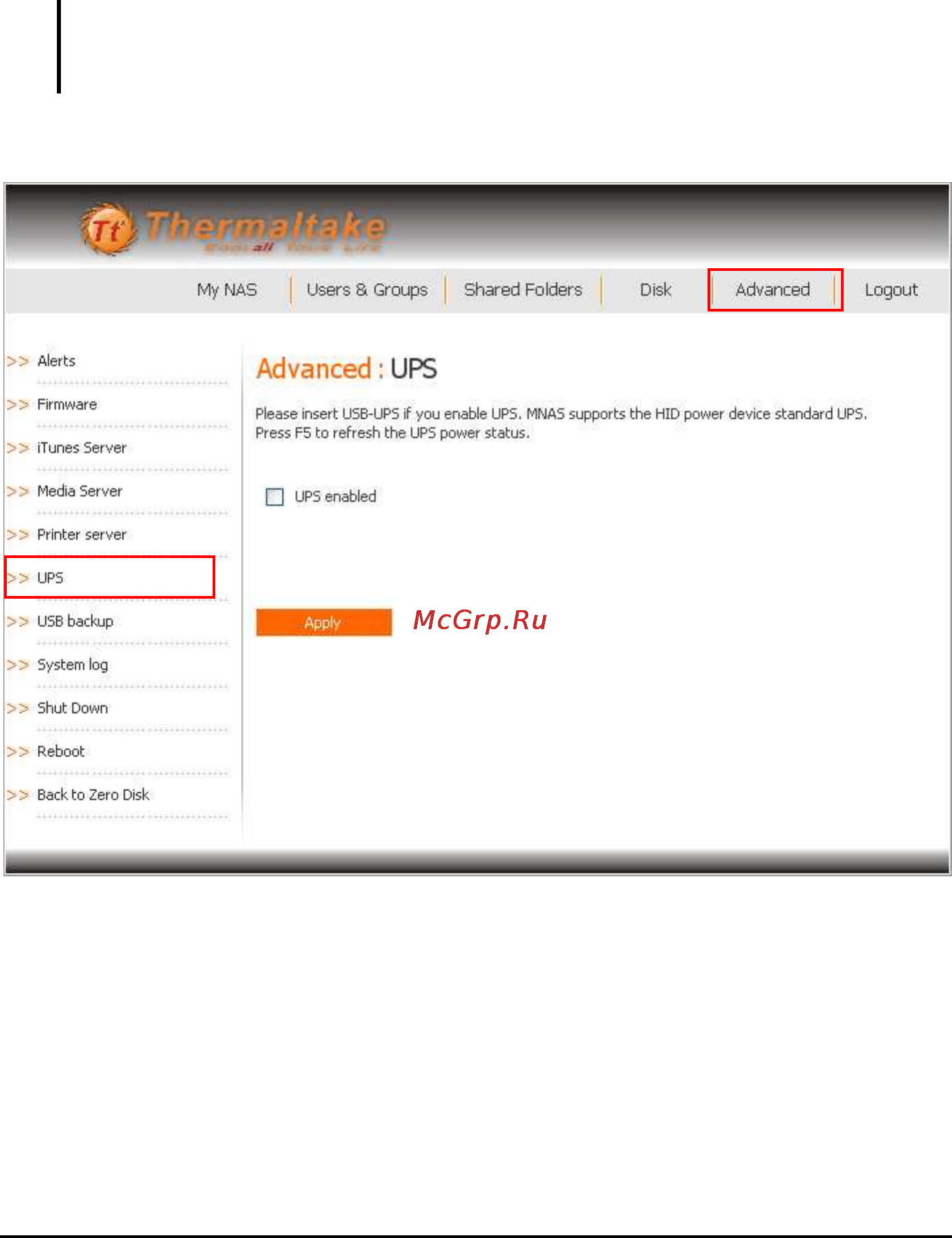

2. Click UPS on the Advanced page and the following screen appears.
