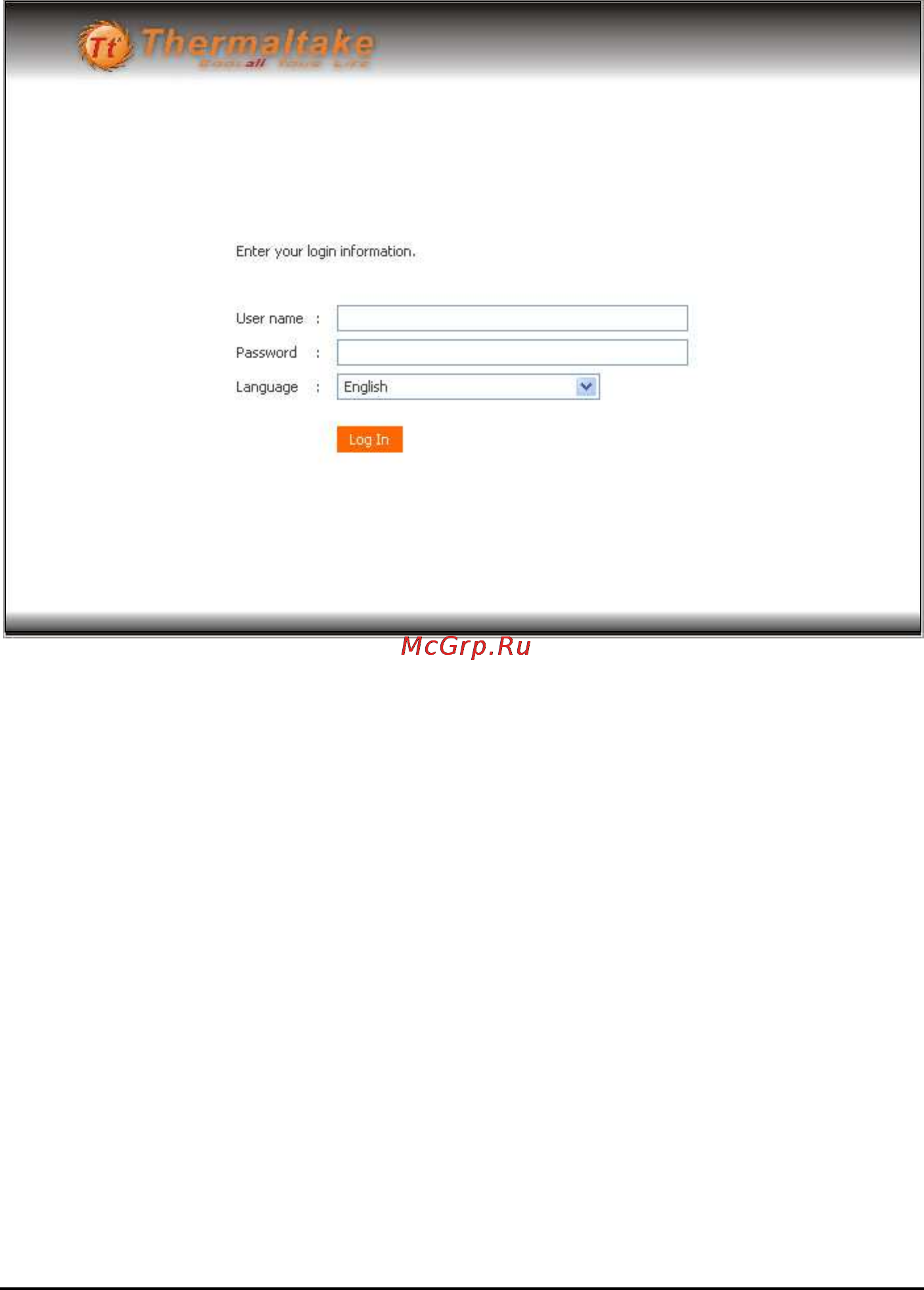

3. The system automatically scans the network for storage systems. This might

take a few minutes. The following screen appears.

4. Enter the default User name “admin” and the default Password

“password” then select the desired language.

5. Click Log In. The Storage System Management homepage contains six tabs

namely, My NAS, Users & Groups, Shared Folders, Disk, Advanced, and

Logout appears.
