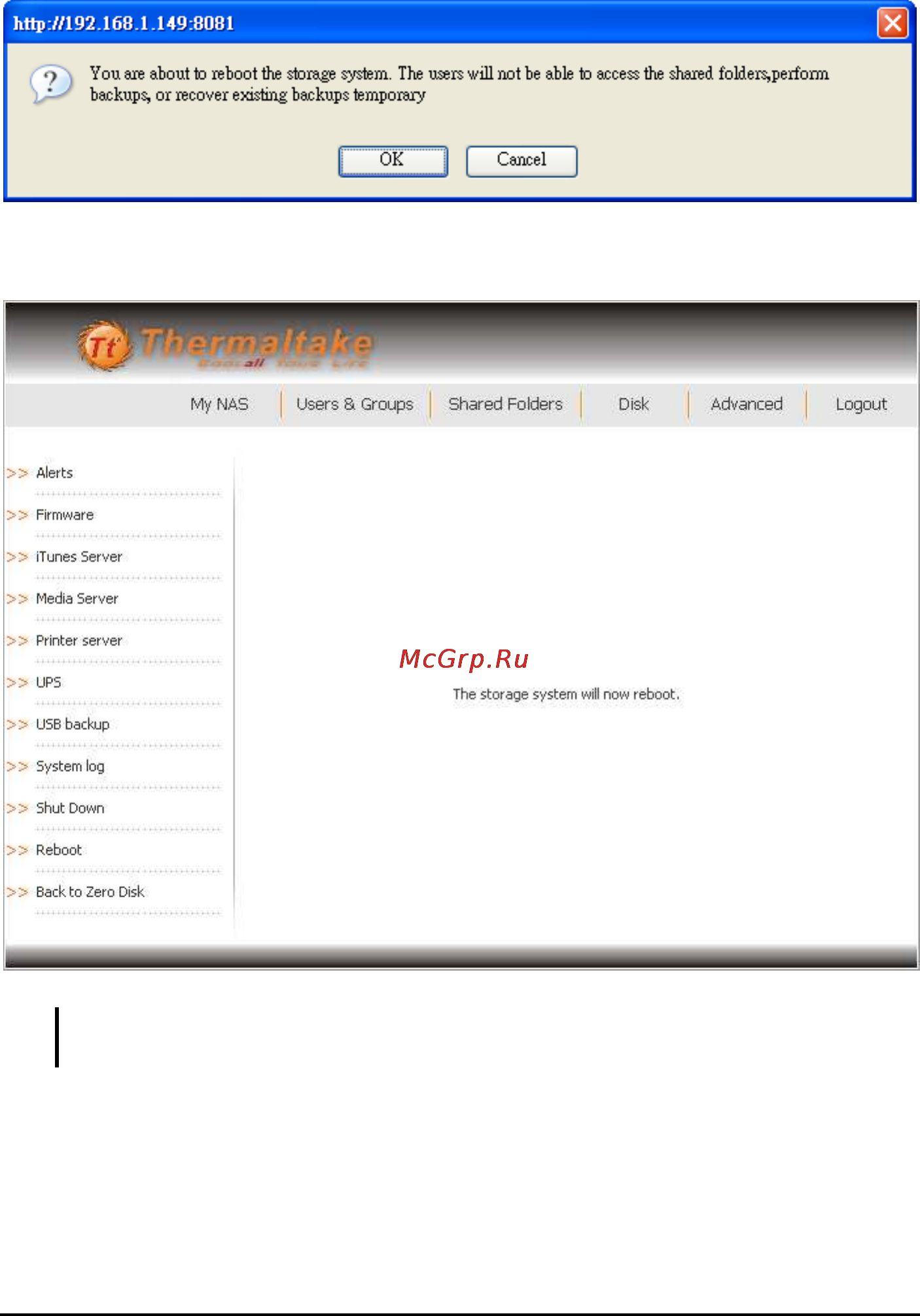

3. Click Reboot and the following screen appear. Click OK to confirm.

4. A message appears indicating that the system is rebooting.

CAUTION: Always reboot the system in accordance with the instructions above. An

improper reboot may affect the functionality of storage system in the next startup.
