84

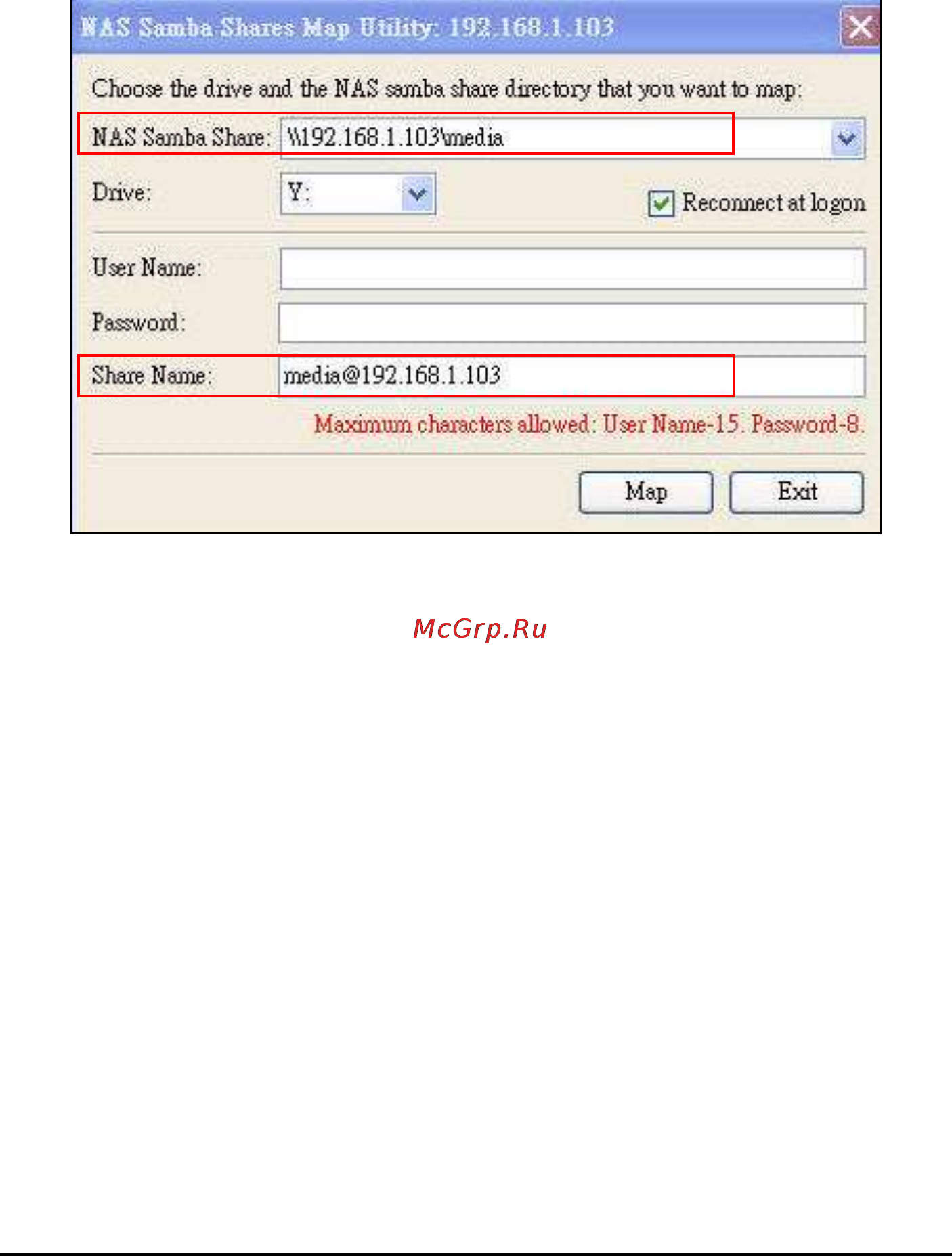

2. The following screen appears. Key in the appropriate information and click
Map.
NAS Samba Share: allows you to select which shared folder to connect
User Name/Password: the shared folder of what you selected
Share Name: allows you to re-name a preferred share name
