NOTE: Windows users can be joined into groups as well as assign several users to a

shared folder.

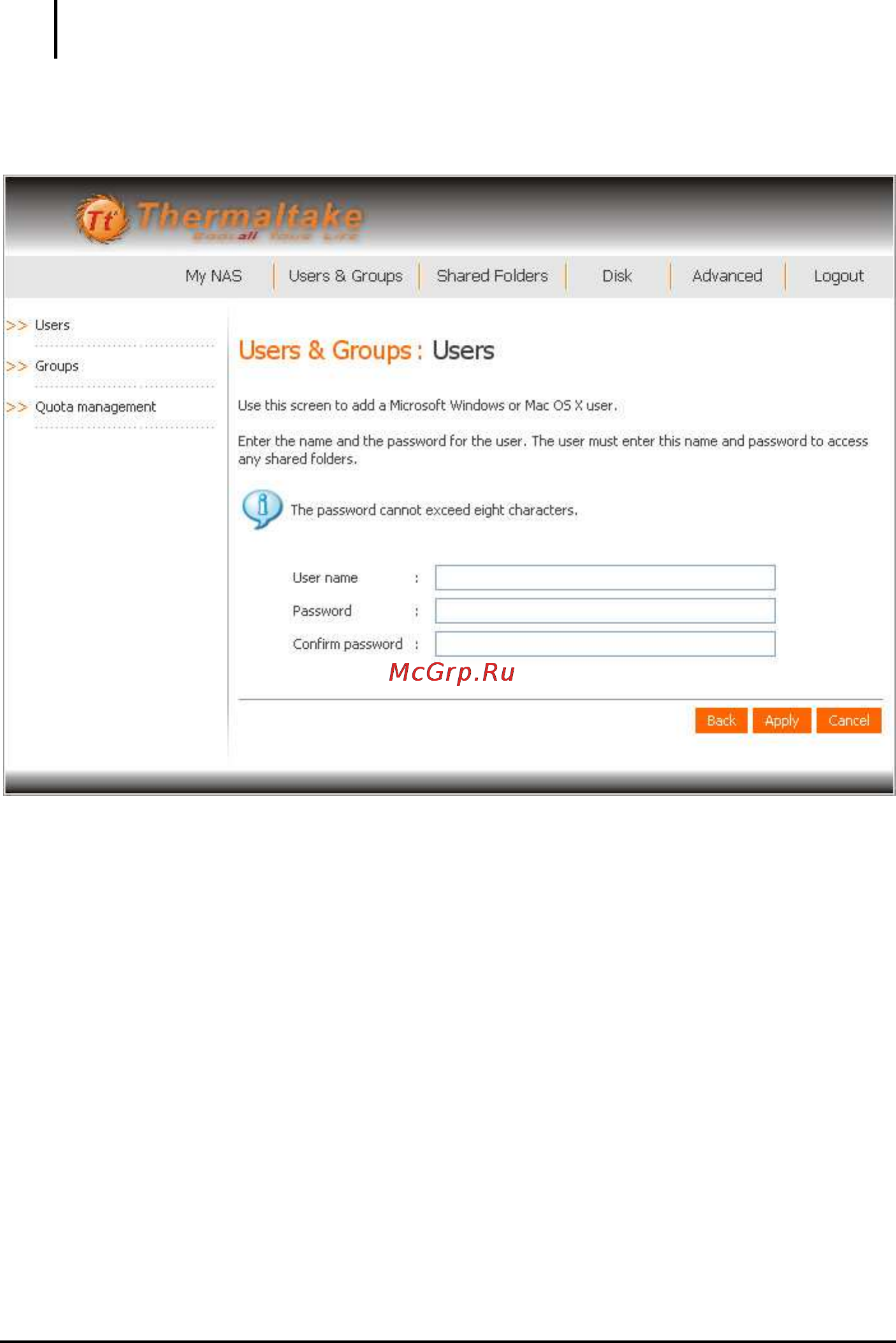

3. Click Add and the following screen appear. You must provide the requested

user information.
