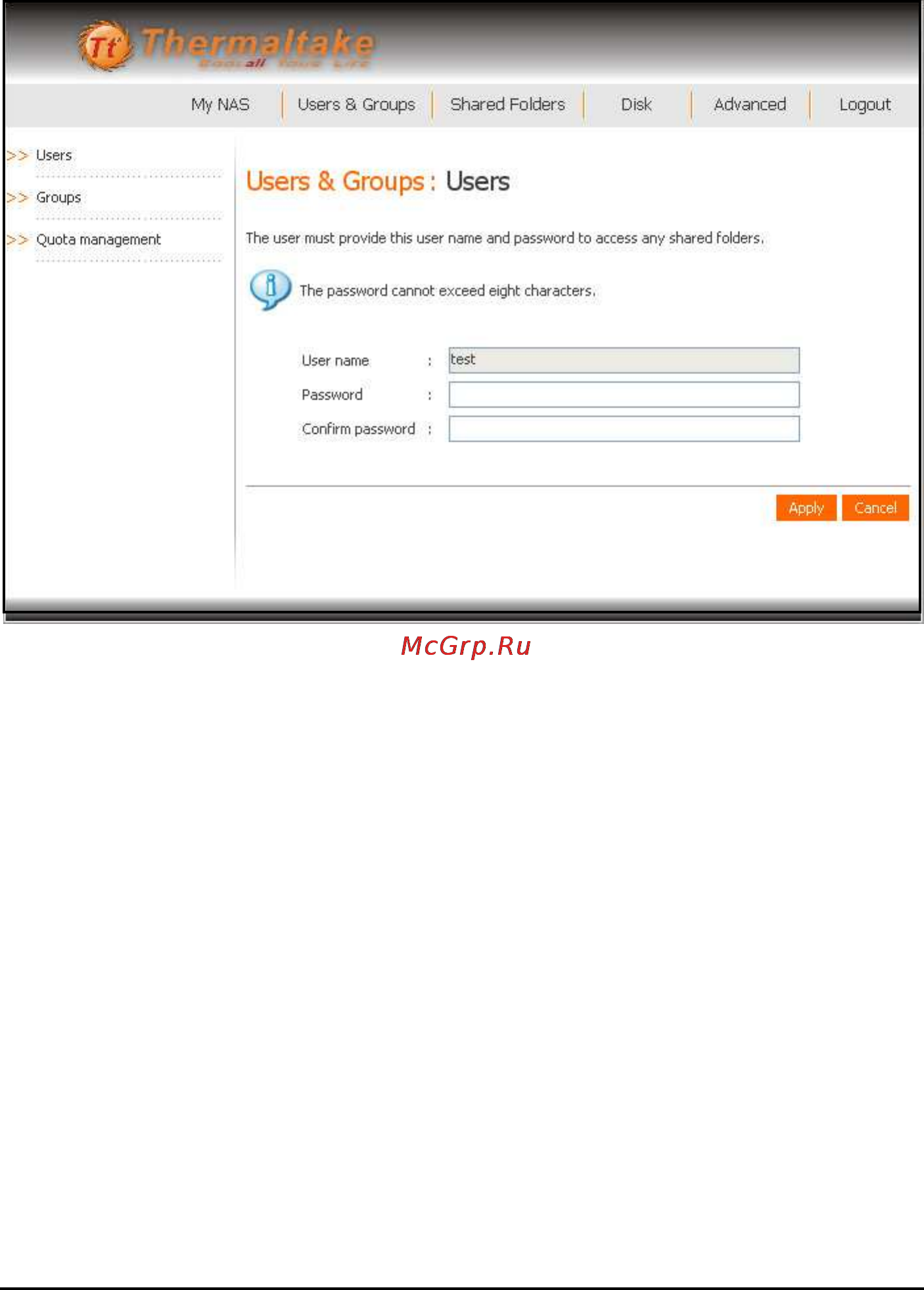

6. Click Edit and the following screen appears, allowing you to specify the

type of user (Windows/Mac OS X) you want to edit.
