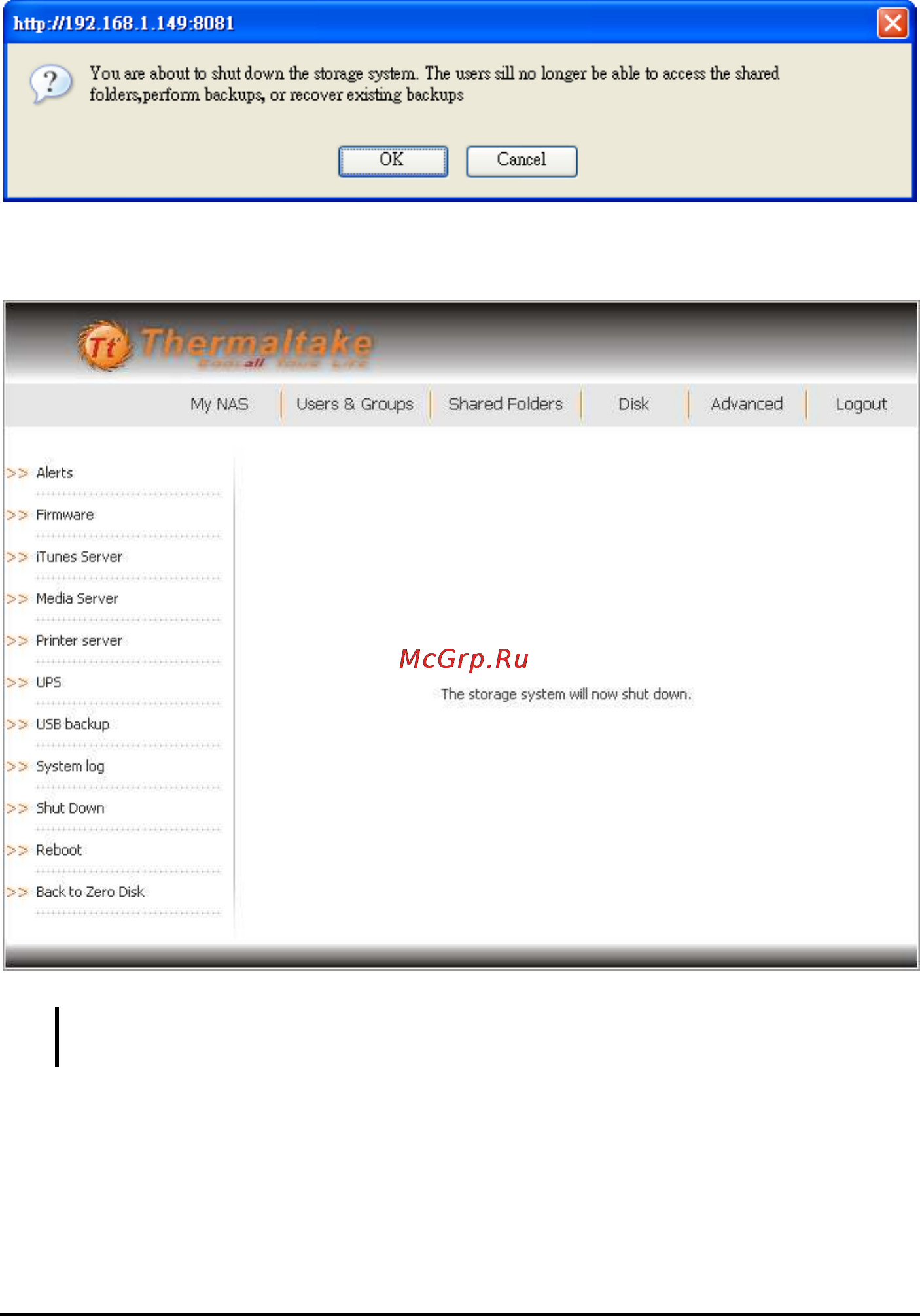

3. Click Shut Down and the following screen appears. Click OK to confirm.

4. A message appears indicating that the system is shutting down.

CAUTION: Always shutdown the system in accordance with the instructions above. An

improper shutdown may affect the functionality of storage system in the next startup.
