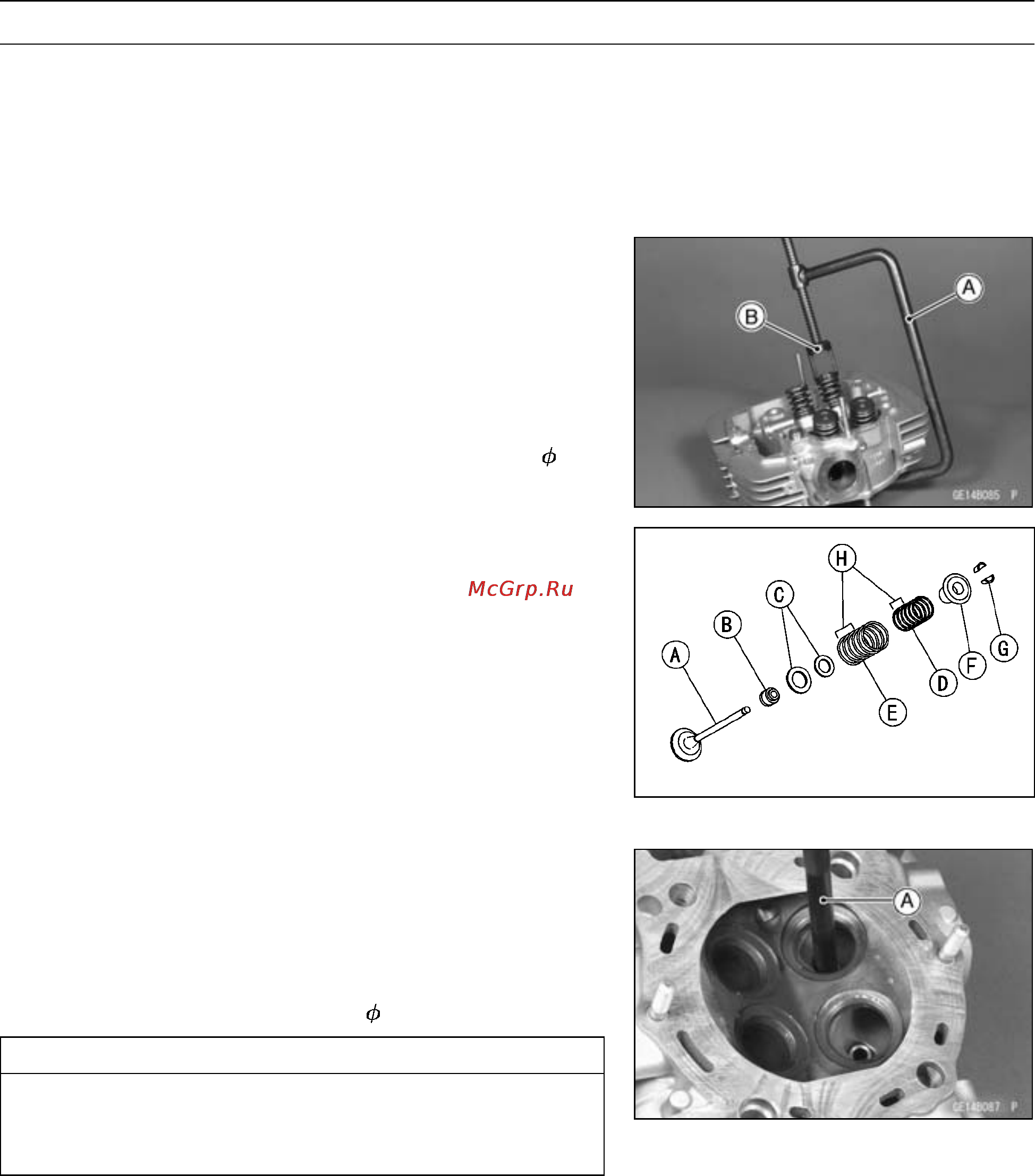

ENGINE TOP END 5-35
Cylinder Head
Valve Clearance Adjustm ent
NOTE
○
Since the hydraulic lash adjusters constantly maintain
zero clearance, it is not necessary to inspect or adjust
the valve clearance.
Valve Removal
•
Remove the cylinder head (see this chapter).
•
Swing open the rocker arm.
•
Using the valve spring compressor assembly, remove the
valve.
Special Tools - Valve Spring Compressor Assembly: 57001
-241 [A]
Valve Spring Compressor Adapter,
28.2:
57001-243 [B]
Valve In s ta llation
•
Replace the stem oil seal with a new one.
•
Apply a thin coat of molybdenum disulfide grease to the
valve stem before valve installation.
•
Install the springs so that the closed coil end faces down-
wards.
Valve [A] and Stem O il Seal [B]
Spring Seats [C]
Inner Spring [D] and Outer Spring [E]
Retainer [F] and Split Keepers [G]
Closed Coil End [H]
Valve Guide Removal
•
Remove the valve, stem oil seal and spring seats.
•
Heat the area around the valve guide to 120 ∼ 150°C (248
∼ 302°F), and hammer lightly on the valve guide arbor [A]
to remove the guide from the top of the head.
Special Tool - Valve Guide Arbor, 7: 57001-163
CAUTION
Do not heat the cylinder head with a blowtorch. This
will warp the head. Soak the cylinder head in engine
oil and heat the oil.
