Kawasaki VN1600 CLASSIC (2003) [487/575] Electrical system 16 41
![Kawasaki VN1600 CLASSIC (2003) [487/575] Electrical system 16 41](/views2/1121175/page487/bg1e7.png)
ELECTRICAL SYSTEM 16-41
Charging System

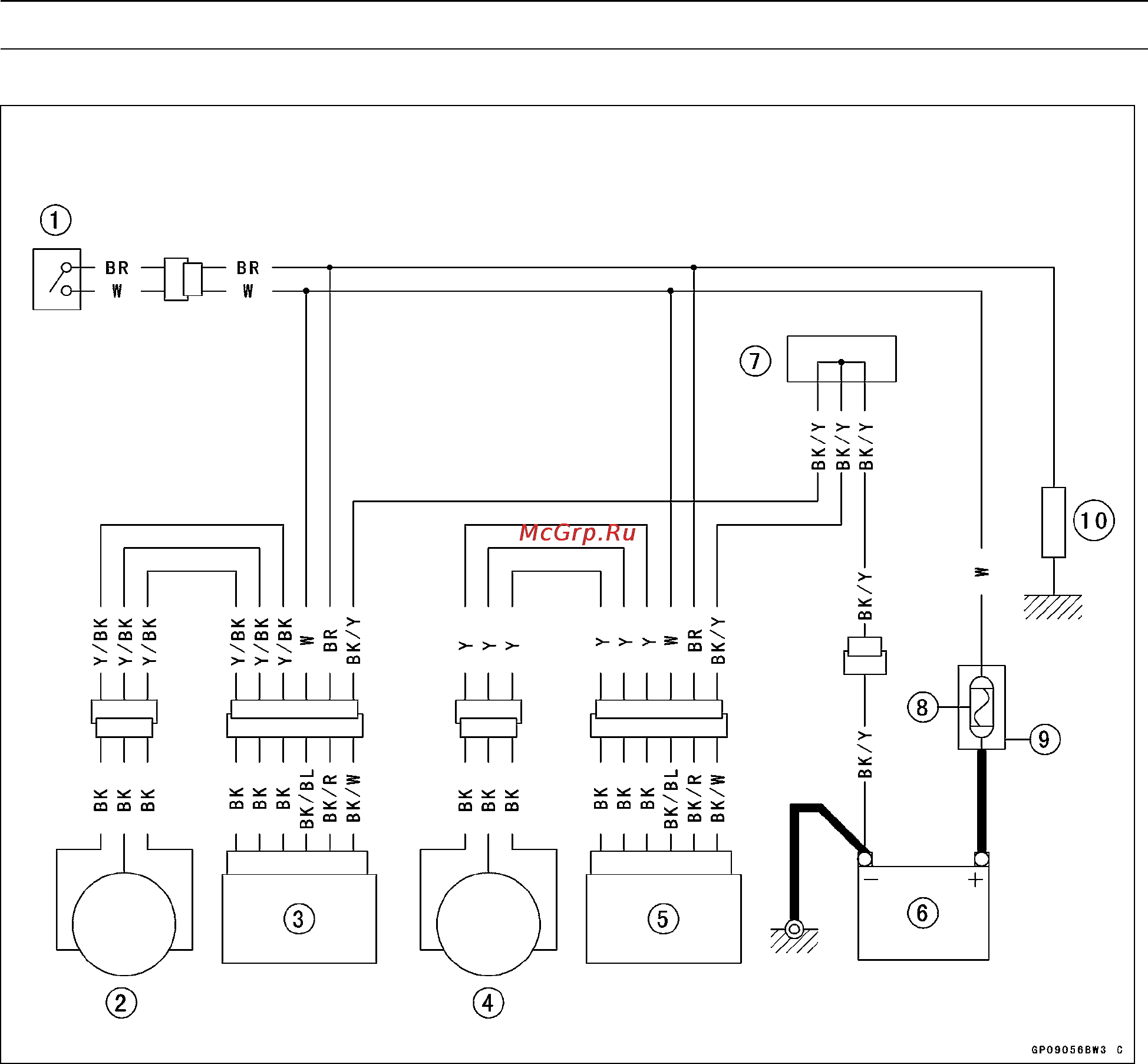

Charging System Circuit
1. Ignition Switch
2. Alternator #2 (inside stator)
3. Regulator/Rectifier #2
4. Alternator #1 (outside stator)
5. Regulator/Rectifier #1
6. Battery
7. Joint Connector
8. Main Fuse 30 A
9. Starter Relay
10. Load
