ENGINE REMOVAL/INSTALLATIO N 8-9
Engine Removal/Installation
•

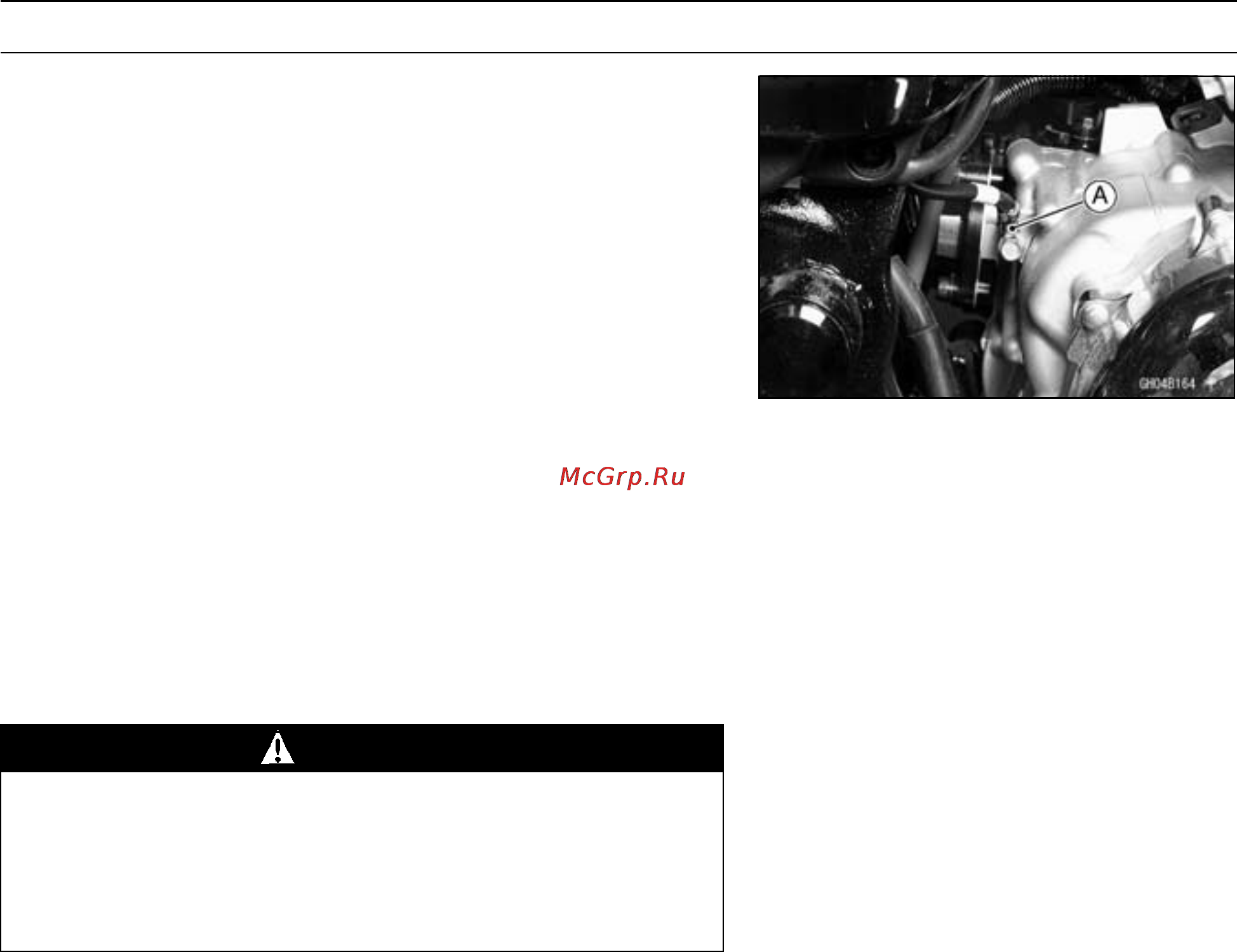

Connect the engine ground lead [A] down to the engine
as shown.
Torque - Engine Ground Terminal Bolt: 7.8 N·m (0.80 kgf·m,
69 in·lb)
•
Install the removed parts (see appropriate chapters).
•
Adjust the throttle cables (see Fuel System chapter).
•
Fill the engine with engine oil (see Periodic M aintenance
chapter).
•
Fill the engine with coolant and bleed the air from the
cooling system (see Periodic Maintenance chapter).
•
Adjust the idling (see Periodic Maintenance chapter).
•
Check the clutch operation.
•
Check the brake effectiveness.
WARNING
Do not attempt to ride the m otorcycle until a full
brake lever or pedal is obtained by pumping the
brake lever or pedal until the pads are against the
disc. The brake will not function on the first appli-
cation of the lever or pedal if this is not done.
