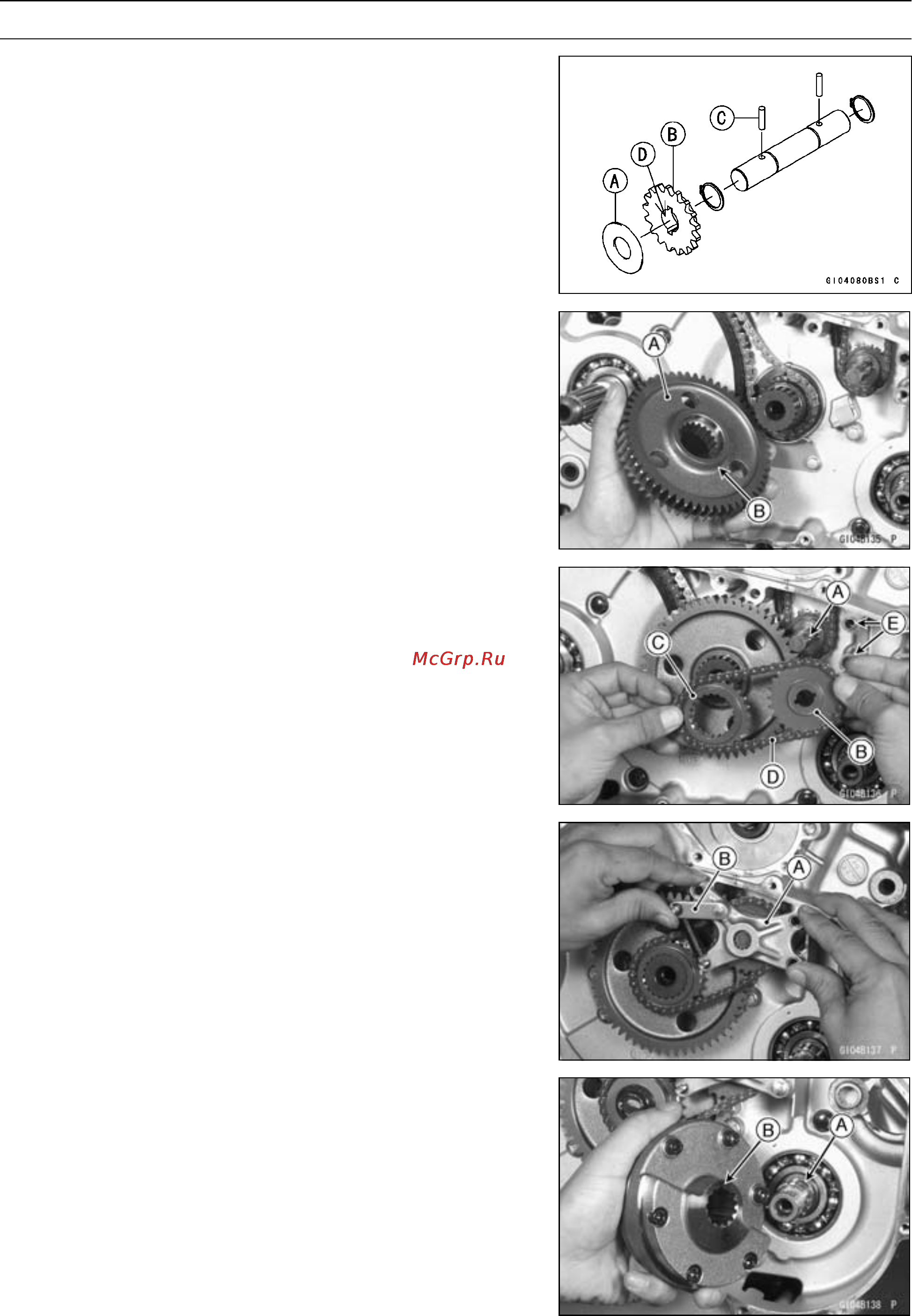

CRANKSHAFT/T RANSMISSION 9-19
Crankcase
•
Install:
Washer [A]
Idle Shaft Sprocket [B]
○
Fit the pin [C] into the slots [D] of the idle shaft sprocket.
•
Install the primary gear [A] with the boss [B] facing toward
the engine inside.
•
Install:
Pin [A]
Idle Shaft Sprocket [B]
Water Pump Drive Sprocket [C] and Chain [D]
Dowel Pins [ E]
○
Stuff the cloth on the holes of the crankcase so that the
pin does not drop into the crankcase bottom.
○
Install:
Idle Shaft Holder [A] and Water Pump Chain G uide [B]
as shown.
Torque - Idle Shaft Holder Bolts: 8.3 N·m (0.85 kgf·m, 73
in·lb)
•
Fit the alignment tooth [A] of the splines of the right bal-
ancer [B] onto the alignment notch of the balancer shaft.
