16-92 ELECTRICAL SYSTEM

Junction Box

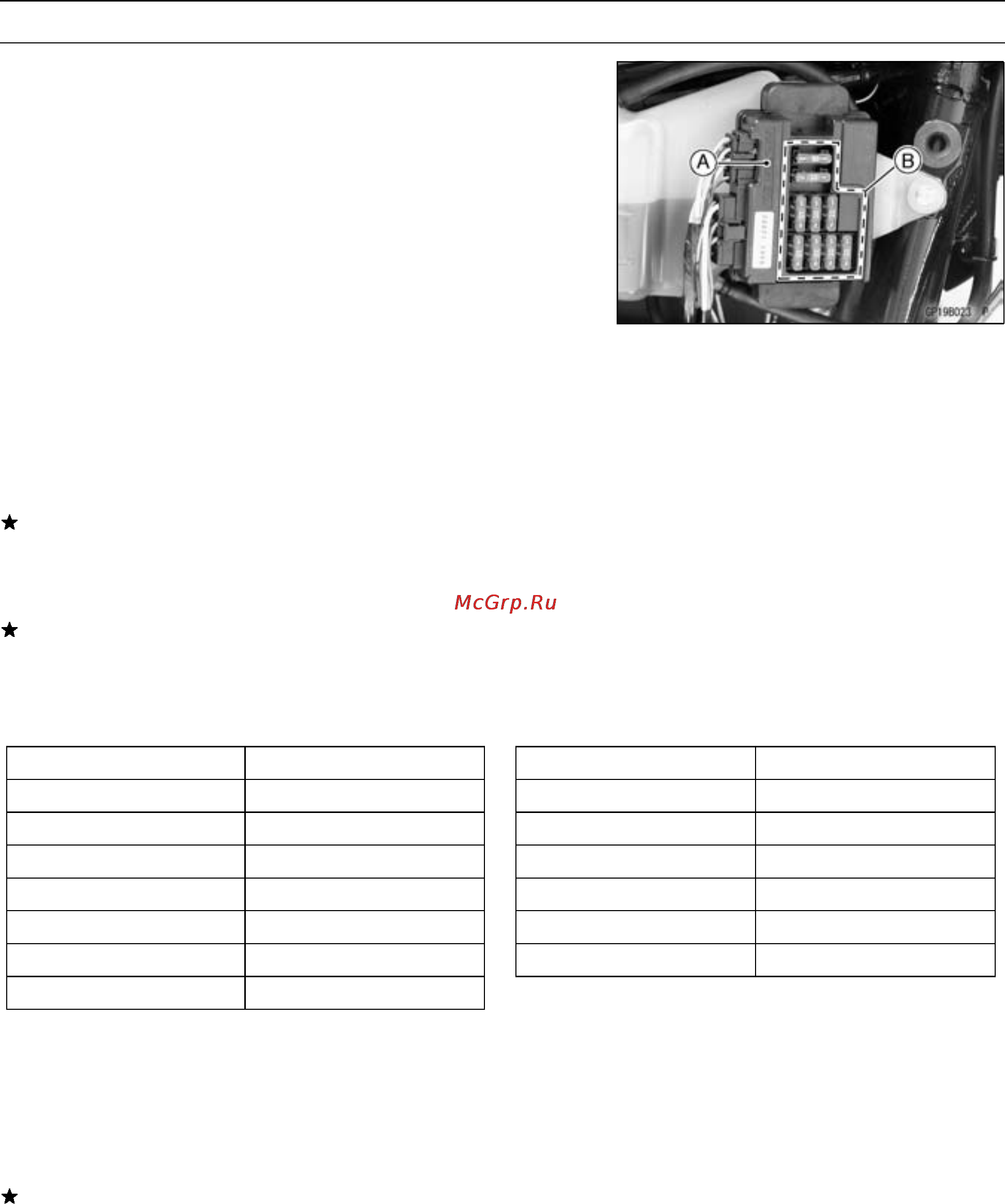

The junction box [A] has fuses [B], relays, and diodes.

The relays and diodes can not be removed.

Junction Box Fuse Circuit Inspection

•

Remove the right side cover (see Frame chapter).

•

Remove the junction box.

•

Pull off the connectors from the junction box.

•

Make sure all connector terminals are clean and tight, and

none of them have been bent.

Clean the dirty terminals, and straighten slightly-bent ter-

minals.

•

Check conductivity of the numbered terminals with the

hand tester (see Junction Box Internal Circuit).

If the tester does not read as specified, replace the junc-

tion box.

Fuse Circuit Inspection

Tester Connection Tester Reading (Ω) Tester Connection Tester Reading (Ω)

1–1A 0 1A – 8 ∞

1–2 0 2–8 ∞

3A – 4 0 3A – 8 ∞

6–5 0 6–2 ∞

6–10 0 6–3A ∞

6–7 0 17 – 3A ∞

6–17 0

Starter Circuit/Headlight Relay Inspection

•

Remove the junction box.

•

Check conductivity of the following numbered terminals

by connecting the hand tester and one 12 V battery to the

junction box as shown ( see Junction Box Internal Circuit).

If the tester does not read as specified, replace the junc-

tion box.
