Yamaha YW50AP (2001) [105/214] Crankcase and reed valve
![Yamaha YW50AP (2001) [105/214] Crankcase and reed valve](/views2/1121445/page105/bg69.png)
4-34
ENG

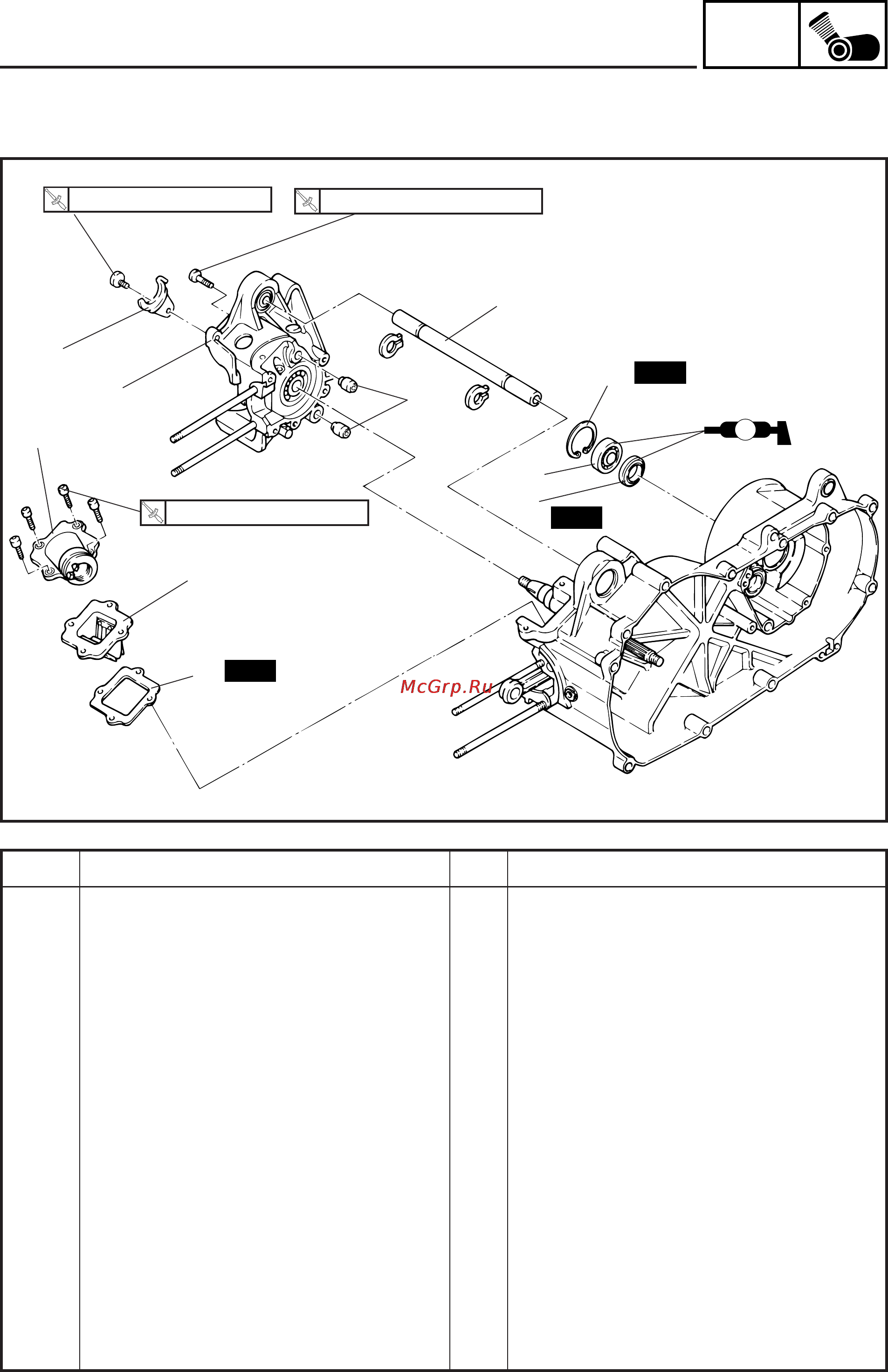

CRANKCASE AND REED VALVE
Order
1
2
3
4
5
6
7
8
9
10
Job name/Part name
Intake manifold
Reed valve
Valve seat gasket
Stopper
Crankcase 2
Dowel pin
Engine mount spacer
Circlip
Bearing
Oil seal
Q’ty
1
1
1
1
1
2
1
1
1
1
Remarks
Reverse the removal procedure for in-
stallation.
New
New
New
9Nm(0.9m.kg,6.5ft.lb)
T
R
.
.
12Nm(1.2m.kg, 8.4ft.lb)
T
R
.
.
3
4
1
2
6
5
7
8
10
9
LS
11Nm(1.1m.kg,8ft.lb)
T
R
.
.
