Yamaha YW50AP (2001) [179/214] Electric starting system
![Yamaha YW50AP (2001) [179/214] Electric starting system](/views2/1121445/page179/bgb3.png)
7-21
– +
ELEC
ELECTRIC STARTING SYSTEM
*

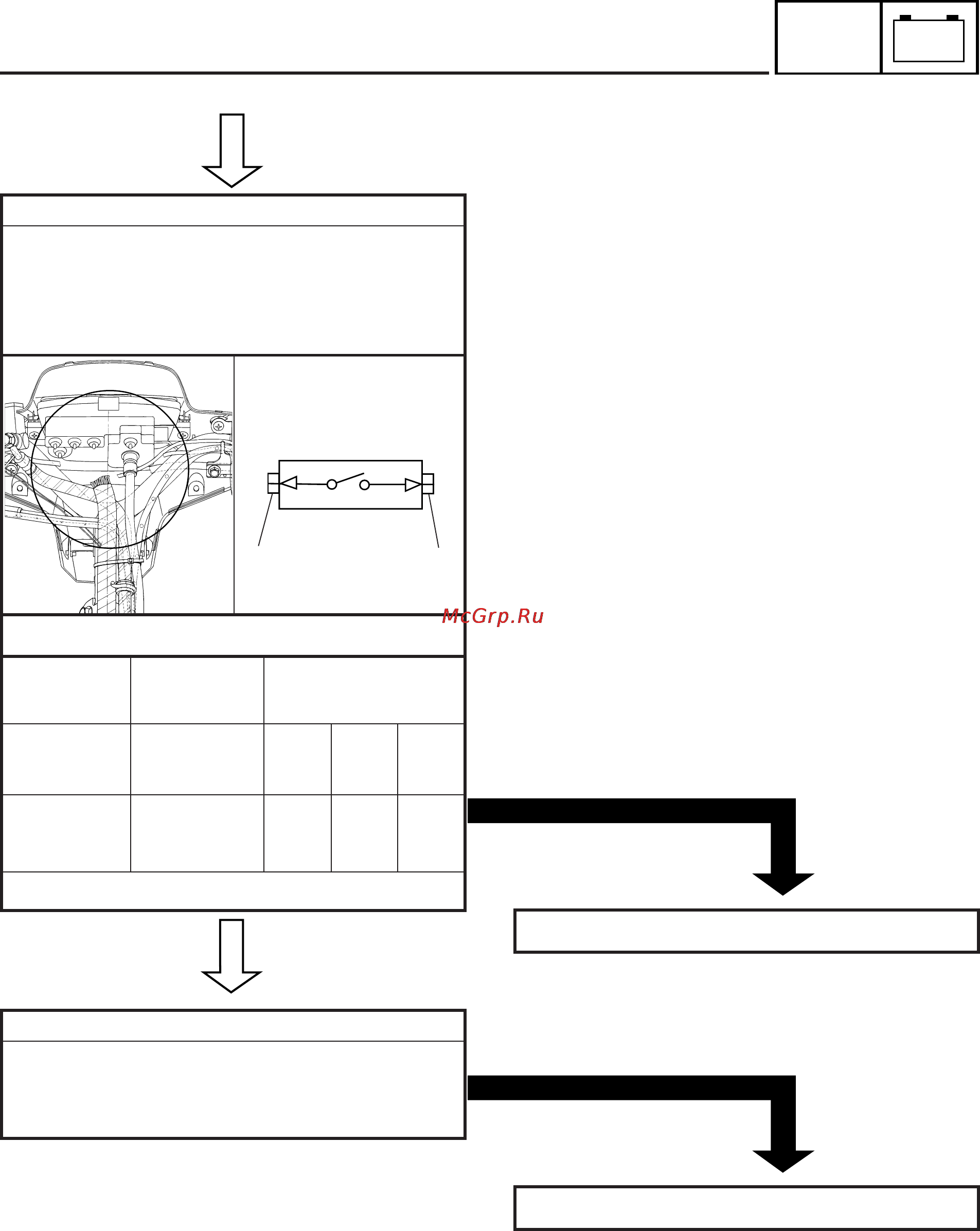

8. Brake switches (front and rear)
8 Disconnect the brake switch leads from the
wire harness.
8 Connect the pocket tester (Ω × 1 )to the
brake switch leads.
8 Check the brake switch for continuity
Switch
Position
Good
condition
Bad condition
Brake is
applied
Brake is
not applied
❍
✕
✕✕❍
✕❍❍
❍:Continuity ✕:No continuity
BAD CONDITION
Replace brake switch(es).
CONTINUITY
GOOD
CONDITION
Br
G/Y
1
2
9. Wiring connection
8 Check the entire electrical starting system
for connections.
Refer to “WIRING DIAGRAM” section.
POOR CONNECTION
Correct.
