6-25
CHAS
Order
1
2
3
4
5
6
7
8
9
Q’ty
1
1
1
1
1/1
1
1
1
1

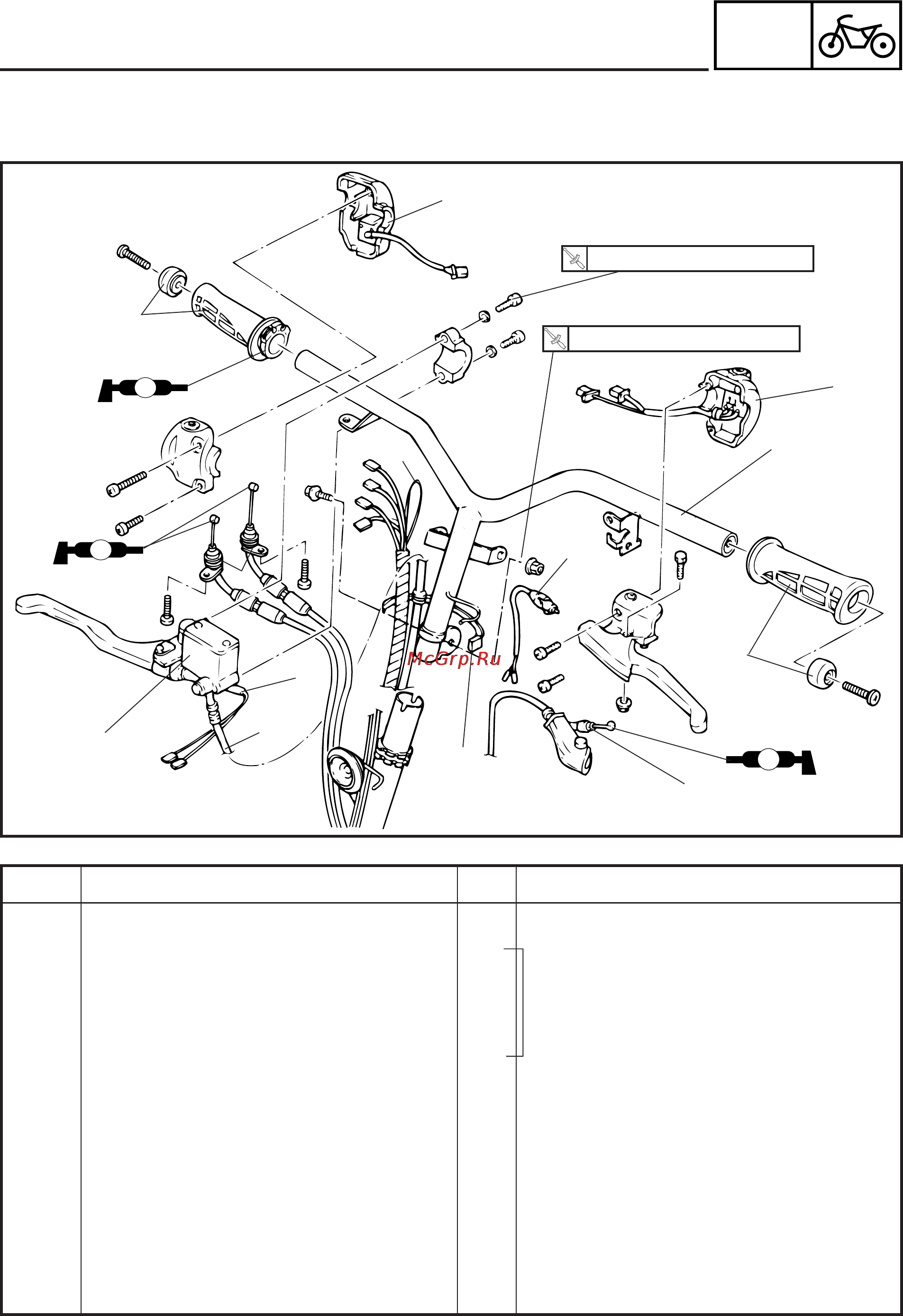

HANDLEBAR
HANDLEBAR
Remarks
Remove the parts in order.
Refer to “COVERS AND PANEL” IN
CHAPTER 3.
Job name/Part name
Handlebar removal
Left/Right bake mirror
Front protector bar
Upper cover
Front/Rear handlebar cover
Left/Right flasher
Brake master cylinder
Front brake switch
Handlebar switch (Right)
Throttle cable
Right grip
Brake cable
Rear brake switch
Handlebar switch (Left)
Bind
HANDLEBAR
LS
T
R
.
.
9Nm(0.9 m.kg, 6.5 ft.lb)
T
R
.
.
43Nm(4.3 m.kg, 37 ft.lb)
1
2
3
4
6
7
8
9
11
12
5
13
LS
LS
10
