Yamaha YW50AP (2001) [114/214] Carburetor
![Yamaha YW50AP (2001) [114/214] Carburetor](/views2/1121445/page114/bg72.png)
5-3
CARB
CARBURETOR

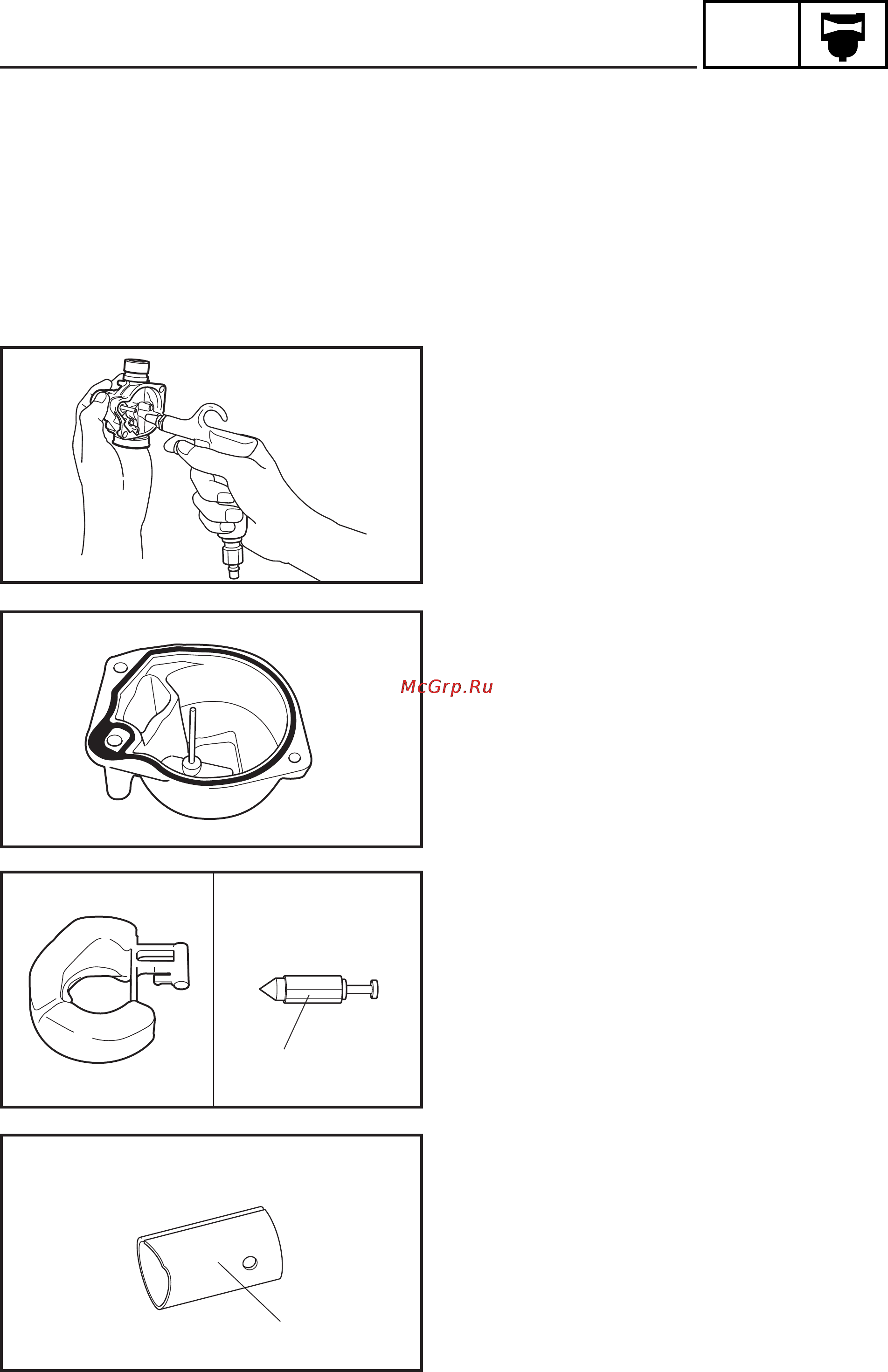

CABURETOR INSPECTION
1. Check:
8 Carburetor body
8 Float chamber
8 Jet housing
Cracks/damage → Replace.
2. Check:
8 Fuel passages
Obstruction → Clean.
***************************************
a. Wash the carburetor in a petroleum-based
solvent. Do not use any caustic carbure-
tor cleaning solution.
b. Blow out all of the passages and jets with
compressed air.
***************************************
3. Check:
8 Float chamber body
Dirt → Clean.
4. Check:
8 Float chamber rubber gasket
Cracks/damage/wear → Replace.
5. Check:
8 Float
Damage → Replace.
6. Check:
8 Needle valve 1
Damage/obstruction/wear → Replace
the needle valve.
7. Check:
8 Throttle valve 1
Damage/scratches/wear→ Replace.
